Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 60mm -
Fork RST NOVA
-
Groupset Tourney, Acera -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
15"
145cm - 158cm
17"
155cm - 172cm
19"
170cm - 185cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
alloy 6061 (ASL)
Suspension Fork
RST Nova ML lock out (60 mm)
Drivetrain
Rear Derailleur
SHIMANO TX800
Front Derailleur
SHIMANO TY700 (31.8)
Shift Levers
SHIMANO Acera (24)
Cassette
SHIMANO HG200-8 12-32 (8)
Crank
PROWHEEL 42-34-24 teeth 170 / 175 mm cranks
Chain
KMC Z8.3
Pedals
AUTHOR Non Slip resin
Wheels
Front Hub
QUANDO 32 holes
Rear Hub
QUANDO 32 holes
Rims
AUTHOR Xenon 29 32 holes
Spokes
black steel
Tires
AUTHOR Cross 700 × 38c
Brakes
Brakes
TEKTRO disc hydraulic (6" rotors)
Cockpit
Stem
ZOOM alloy
Handlebar
steel 20 mm 660 / 680 mm
Grips
AUTHOR ErgoGrip
Seat
Saddle
AUTHOR Area
Seatpost
ZOOM alloy (27.2)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" |
|---|---|---|---|
| Front Center | 621 mm | 642 mm | 662 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Top Tube Length | 548 mm | 568 mm | 588 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 130 mm | 140 mm | 150 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1052 mm | 1073 mm | 1093 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 145 cm | 155 cm | 170 cm |
| Rider Max Height | 158 cm | 172 cm | 185 cm |
About this model

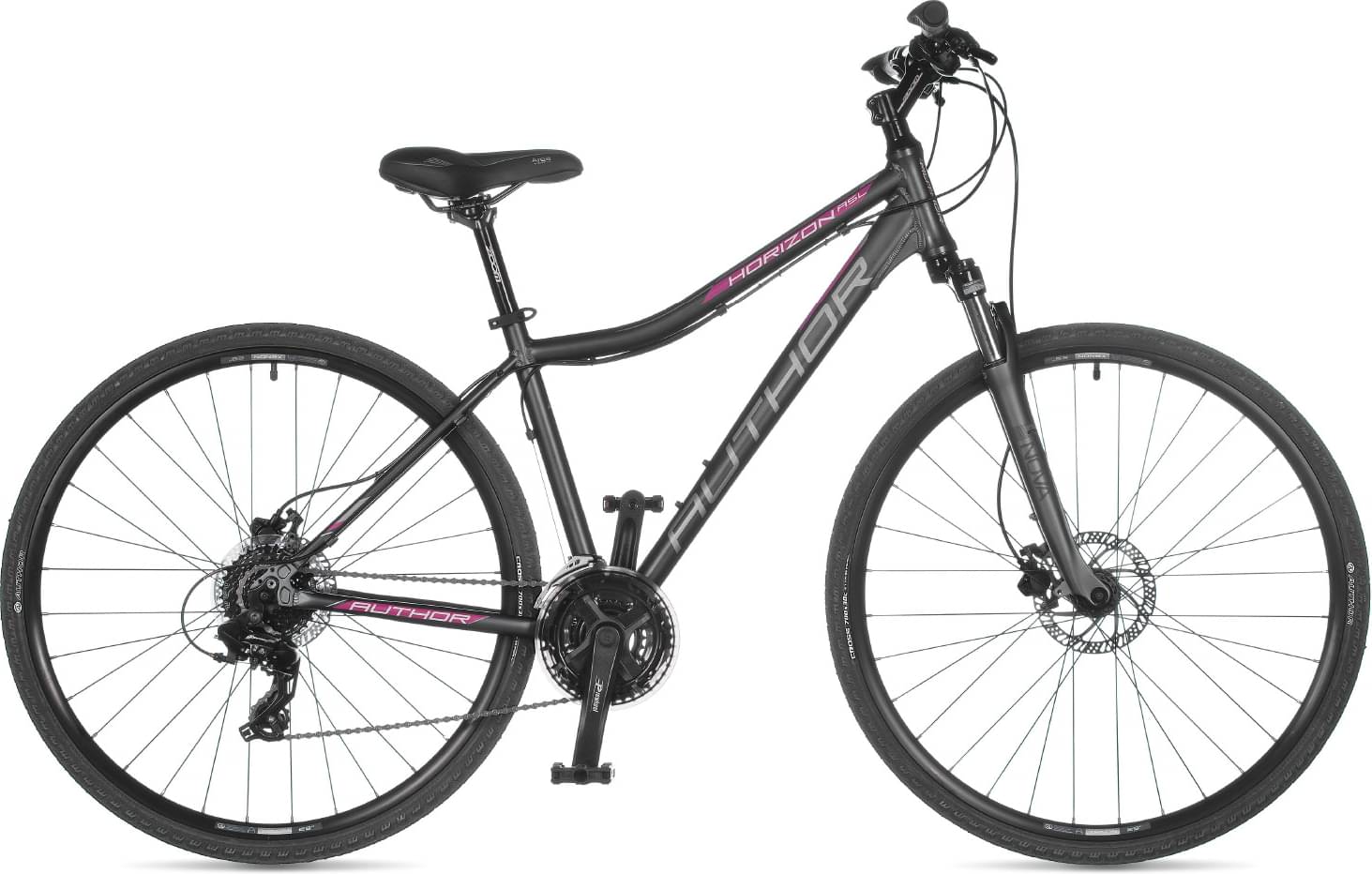

Horizon ASL is part of the Author Horizon model. 17 bikes variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Hybrid bikes average price
If you want to purchase a solid Hybrid bike, it is important to know that the average cost is 562$. However, this doesn’t mean that if you spend less money on a Hybrid bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Hybrid bikes average weight
Hybrid bikes weigh an average of 13.85 kg (30.53 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
slightly heavier than average, Horizon ASL has a weight of 14.1 kg (31.09 lbs). In other words, this model is 1.81% heavier than the average Hybrid bike.
Overview of components
Fork
This bike has the RST NOVA fork installed. The fork’s travel is 60mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The wheels on Horizon ASL are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Author Horizon ASL is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
This bike is available in 3 sizes. They vary from 145 cm – 185 cm (4.76 ft – 6.07 ft). In conclusion, you won’t have a problem finding one that suits you.
