Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork RST F1RST
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
17"
168cm - 180cm
19"
177cm - 190cm
21"
187cm - 202cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
double butted hydroformed alloy 6061 29"
Suspension Fork
RST F1RST 29 15 TRL air remote lock out (100 mm)
Drivetrain
Rear Derailleur
SHIMANO Deore
Front Derailleur
SHIMANO Deore (34.9)
Shift Levers
SHIMANO Deore (20)
Cassette
SHIMANO HG500-10 11-42 (10)
Crank
SHIMANO Deore 36-26 teeth 170 / 175 mm cranks
Chain
KMC X10
Wheels
Front Hub
AUTHOR Helium 15 / Xenon 15 x 100 mm thru front axle 32 holes
Rear Hub
AUTHOR Helium 15 / Xenon 15 x 100 mm thru front axle 32 holes
Rims
AUTHOR Xenon Pro 29 32 holes
Spokes
stainless steel hi-ten 2.0 mm black
Tires
VITTORIA Barzo kevlar 29" x 2.25"
Brakes
Brakes
SHIMANO BT M400 disc hydraulic (7" rotors)
Cockpit
Stem
AUTHOR alloy
Handlebar
AUTHOR Flatbar 9° 700 / 720 mm
Grips
AUTHOR Pro Lock
Seat
Saddle
AUTHOR Navigator
Seatpost
AUTHOR alloy (31.6)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 17" | 19" | 21" |
|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.49 mm | 1.45 mm |
| Bottom Bracket Height | 313 mm | 313 mm | 313 mm |
| Front Center | 677 mm | 697 mm | 718 mm |
| Rake | 73 mm | 73 mm | 73 mm |
| Trail | 82 mm | 82 mm | 82 mm |
| Stack | 627 mm | 636 mm | 646 mm |
| Reach | 411 mm | 428 mm | 445 mm |
| Top Tube Length | 603 mm | 623 mm | 643 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 432 mm | 483 mm | 535 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1111 mm | 1131 mm | 1152 mm |
| Bottom Bracket Drop | 61 mm | 61 mm | 61 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 168 cm | 177 cm | 187 cm |
| Rider Max Height | 180 cm | 190 cm | 202 cm |

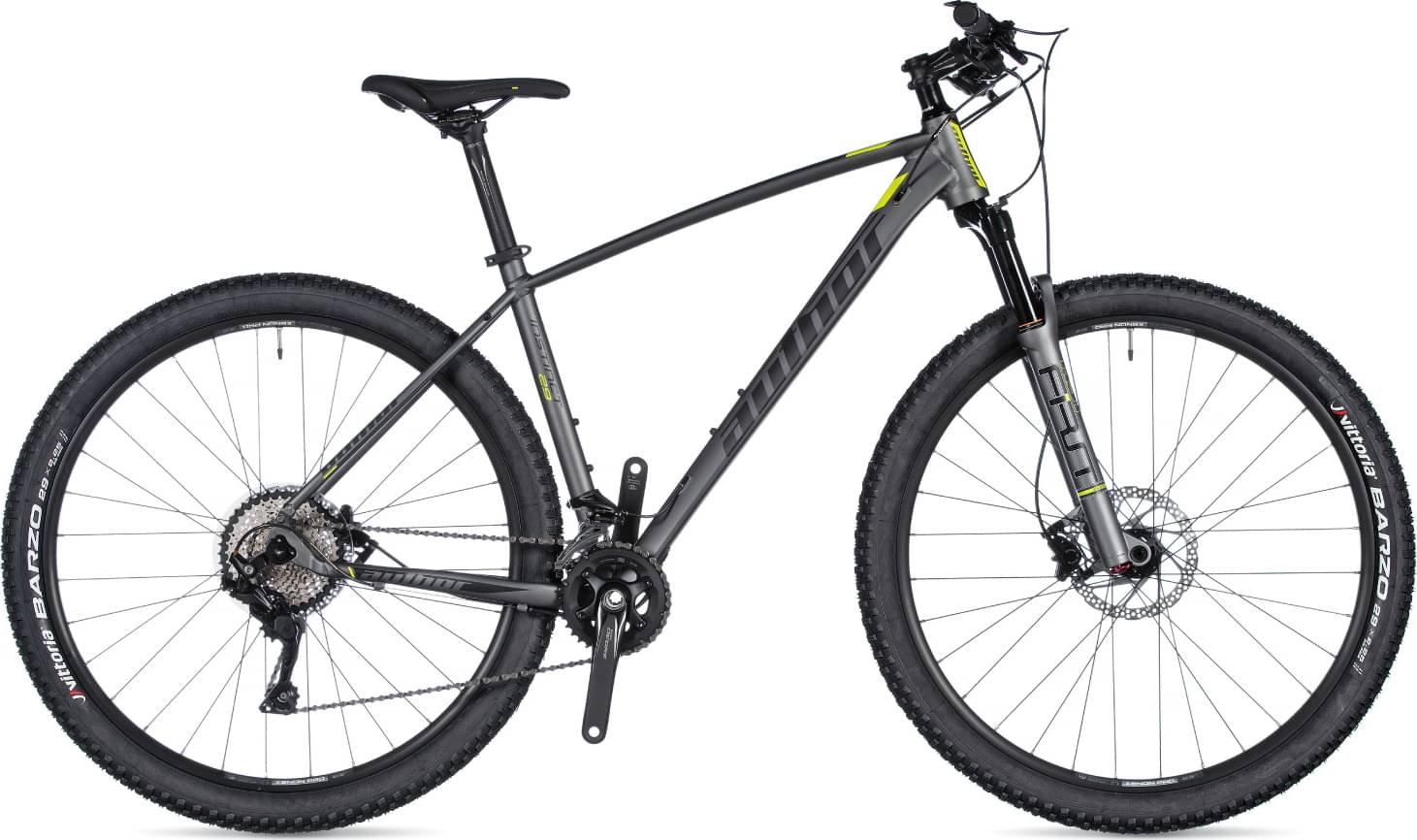

Model Overview
Instinct 29 belongs to the Author Instinct model. 20 bikes variations carry this model name so far. You can get a glimpse at all models from 2020, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry bikes average price
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Average weight for Crosscountry bikes
On a deeper look, we notice that the average weight of a Crosscountry bike is 12.4 kg (27.34 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 12.5 kg (27.56 lbs), the Instinct 29 model is slightly heavier than average. In other words, this model is 0.81% heavier than the average Crosscountry bike.
Overview of components
Fork
The fork installed on this bike is the RST F1RST model. The travel on this model is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
As for the wheels, Author Instinct 29 2020, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The Instinct 29 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Author Instinct 29 bike has 3 sizes, in the range of 168 cm – 202 cm (5.51 ft – 6.63 ft). In conclusion, finding one for you shouldn’t be a problem.
