Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork RST F1RST
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
16"
155cm - 168cm
18"
166cm - 182cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
double butted hydroformed alloy 6061 29" (ASL)
Suspension Fork
RST F1RST 29 15 TRL air, remote lock out (100 mm)
Drivetrain
Rear Derailleur
SHIMANO Deore
Shift Levers
SHIMANO Deore (11)
Cassette
SHIMANO CS-M5100-11 11-51 (11)
Crank
SHIMANO M5100-1 32 teeth 170 / 175 mm cranks
Chain
KMC X11
Wheels
Front Hub
AUTHOR Helium 15 / Xenon 15 × 100 mm thru axle 32 holes
Rear Hub
AUTHOR Helium 15 / Xenon 15 × 100 mm thru axle 32 holes
Rims
AUTHOR Xenon TRC 29 32 holes
Spokes
black stainless steel 2.0 mm
Tires
VITTORIA Barzo foldable 29" × 2.25"
Brakes
Brakes
SHIMANO BR-MT400 disc hydraulic (7" rotors)
Cockpit
Stem
AUTHOR alloy
Handlebar
AUTHOR Flatbar 9° 680 / 700 mm
Grips
AUTHOR GripLock foam
Seat
Saddle
AUTHOR Fenix
Seatpost
AUTHOR alloy (31.6)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" |
|---|---|---|
| Stack Reach Ratio | 1.65 mm | 1.59 mm |
| Bottom Bracket Height | 314 mm | 314 mm |
| Front Center | 648 mm | 668 mm |
| Rake | 51 mm | 51 mm |
| Trail | 86 mm | 86 mm |
| Stack | 635 mm | 639 mm |
| Reach | 384 mm | 402 mm |
| Top Tube Length | 576 mm | 596 mm |
| Seat Tube Angle | 73 ° | 73 ° |
| Seat Tube Length | 406 mm | 457 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° |
| Head Tube Length | 115 mm | 120 mm |
| Chainstay Length | 456 mm | 456 mm |
| Wheelbase | 1097 mm | 1117 mm |
| Bottom Bracket Drop | 60 mm | 60 mm |
| Wheels | 29" | 29" |
| Rider Min Height | 155 cm | 166 cm |
| Rider Max Height | 168 cm | 182 cm |
Model Overview

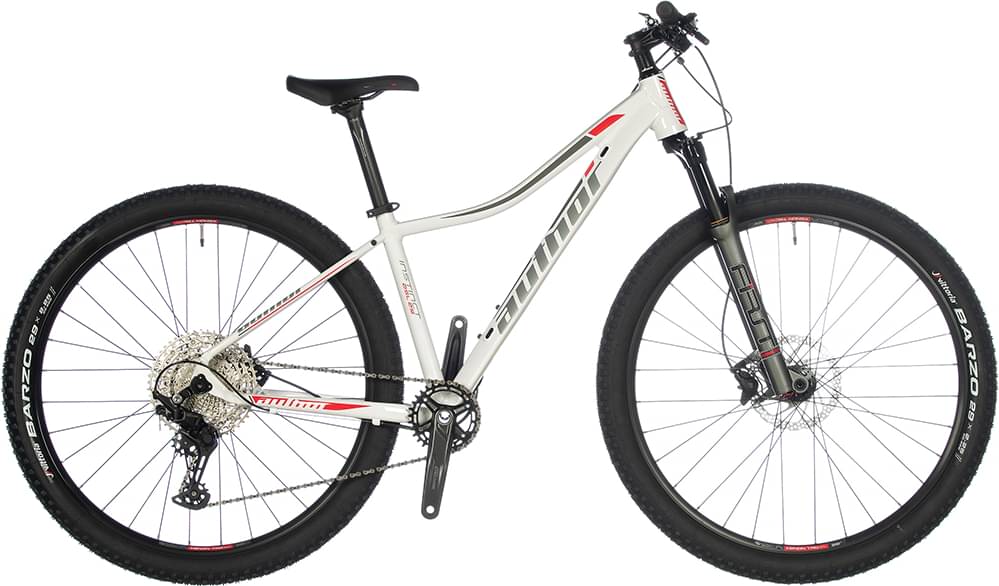

Instinct 29 ASL is an Author Instinct model. Author launched 20 bikes of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Crosscountry bikes average weight
The average weight for Crosscountry bikes is 12.4 kg (27.34 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 12.3 kg (27.12 lbs), the Instinct 29 ASL model is slightly lighter than average. In conclusion, the average Crosscountry bike weighs 0.81% more than Instinct 29 ASL.
Overview of components
Fork
The RST F1RST is included from the factory. It has a travel distance of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When leaving the production line, the Instinct 29 ASL model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. Author Instinct 29 ASL has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Instinct 29 ASL comes in 2 sizes, that range from 155 cm – 182 cm (5.09 ft – 5.97 ft). In conclusion, it won’t take much to find one that’s right for you.
