Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork RST F1RST
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
16"
155cm - 168cm
18"
166cm - 182cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
double butted hydroformed alloy 6061 29" (ASL)
Suspension Fork
RST F1RST 29 15 TRL air, remote lock out (100 mm)
Drivetrain
Rear Derailleur
SHIMANO Deore
Shift Levers
SHIMANO Deore (11)
Cassette
SHIMANO CS-M5100-11, 11-51 (11)
Crank
SHIMANO M5100-1, 32 teeth, 170 / 175 mm cranks
Chain
KMC X11
Wheels
Front Hub
AUTHOR Helium 15 / Xenon, 15 × 100 mm thru axle, 32 holes
Rear Hub
AUTHOR Helium 15 / Xenon, 15 × 100 mm thru axle, 32 holes
Rims
AUTHOR Xenon TRC 29, 32 holes
Spokes
black stainless steel 2.0 mm
Tires
VITTORIA Barzo aramid 29" × 2.25"
Brakes
Brakes
SHIMANO BR-MT410, disc hydraulic (7" rotors)
Cockpit
Stem
AUTHOR alloy
Handlebar
AUTHOR Flatbar, 9°, 680 / 700 mm
Grips
AUTHOR GripLock foam
Seat
Saddle
AUTHOR Fenix
Seatpost
AUTHOR alloy (31.6)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" |
|---|---|---|
| Stack Reach Ratio | 1.65 mm | 1.59 mm |
| Bottom Bracket Height | 314 mm | 314 mm |
| Front Center | 648 mm | 668 mm |
| Rake | 51 mm | 51 mm |
| Trail | 86 mm | 86 mm |
| Stack | 635 mm | 639 mm |
| Reach | 384 mm | 402 mm |
| Top Tube Length | 576 mm | 596 mm |
| Seat Tube Angle | 73 ° | 73 ° |
| Seat Tube Length | 406 mm | 457 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° |
| Head Tube Length | 115 mm | 120 mm |
| Chainstay Length | 456 mm | 456 mm |
| Wheelbase | 1097 mm | 1117 mm |
| Bottom Bracket Drop | 60 mm | 60 mm |
| Wheels | 29" | 29" |
| Rider Min Height | 155 cm | 166 cm |
| Rider Max Height | 168 cm | 182 cm |
About this model

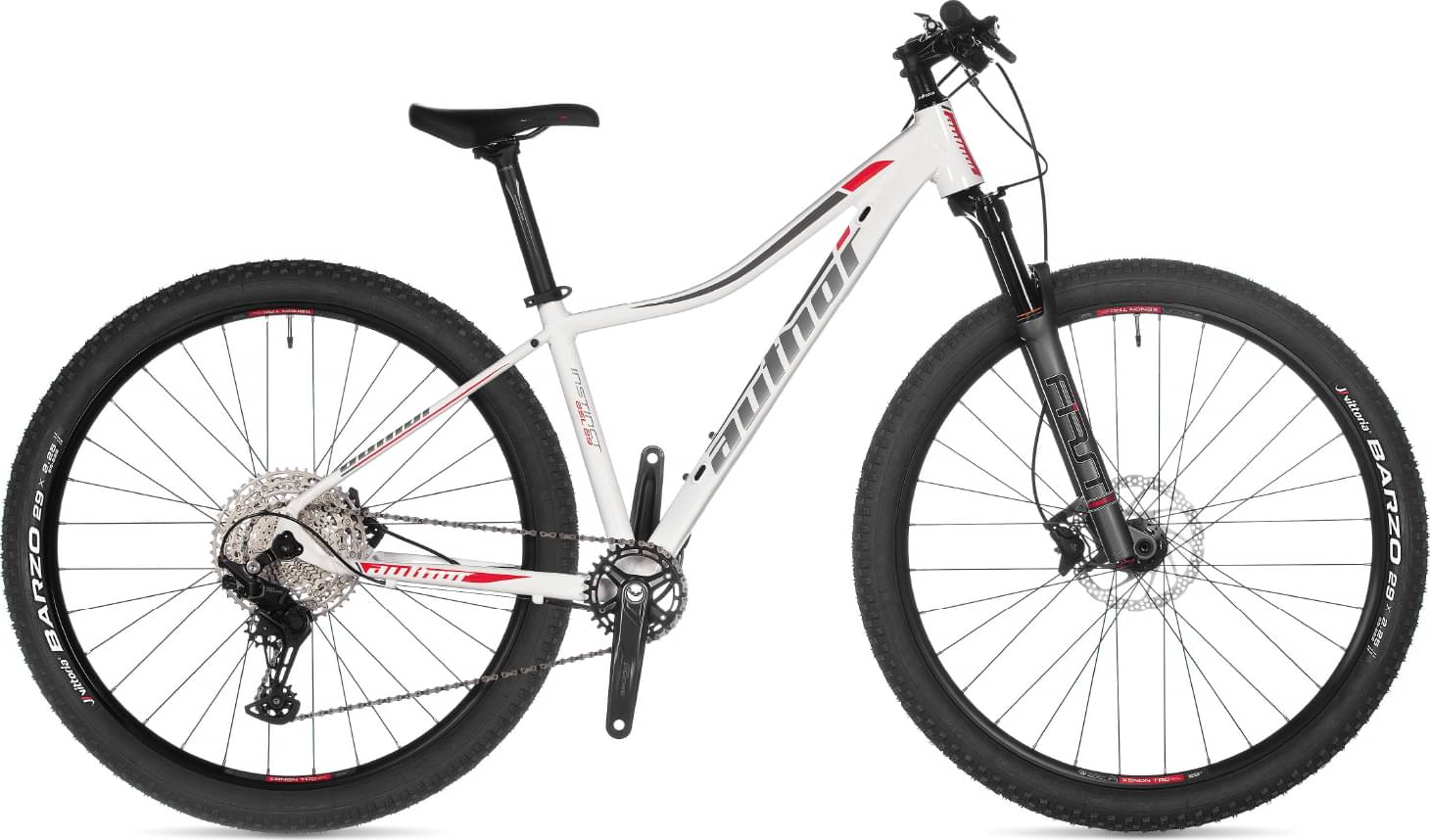

Instinct 29 ASL completes the Author Instinct model. Author released 20 bikes variations of this model so far. Take a sneak peek at all Author Instinct bikes models from 2023, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry bikes average price
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Crosscountry bikes average weight
If we make a quick analysis of the average weight of a Crosscountry bike, we get 12.31 kg (27.14 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 12.3 kg (27.12 lbs), the Instinct 29 ASL model is slightly lighter than average. In conclusion, the average Crosscountry bike weighs 0.08% more than Instinct 29 ASL.
Overview of components
Fork
The fork installed on this bike is the RST F1RST model. The travel on this model is 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The wheels on Instinct 29 ASL are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Author Instinct 29 ASL bike has 2 sizes, in the range of 155 cm – 182 cm (5.09 ft – 5.97 ft). In conclusion, finding one for you shouldn’t be a problem.
