Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork RST F1RST
-
Groupset XT, Deore -
Suspension Hardtail -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
16"
148cm - 162cm
18"
160cm - 175cm
20"
173cm - 185cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
double butted alloy 6061 27.5" (ASL) - hydroforming
Suspension Fork
RST F1RST 27.5 air, lock out (100 mm)
Drivetrain
Rear Derailleur
SHIMANO XT
Front Derailleur
SHIMANO Deore (34.9)
Shift Levers
SHIMANO Deore (30)
Cassette
SHIMANO HG50-10 11-36 (10)
Crank
SHIMANO Deore 40-30-22 teeth 170 / 175 mm cranks
Chain
SHIMANO HG54
Pedals
SHIMANO M520 clipless
Wheels
Front Hub
AUTHOR Xenon Disc 32 holes
Rear Hub
AUTHOR Xenon Disc 32 holes
Rims
AUTHOR Radon Pro 27.5 32 holes
Spokes
black stainless steel 2.0 mm
Tires
VITTORIA Barzo Kevlar 27.5" x 2.10"
Brakes
Brakes
TEKTRO Orion WH disc hydraulic (6" rotors)
Cockpit
Stem
AUTHOR alloy
Handlebar
AUTHOR 15 mm 640 / 660 mm
Grips
AUTHOR GripLock foam
Seat
Saddle
AUTHOR Fenix
Seatpost
AUTHOR alloy (31.6)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" | 20" |
|---|---|---|---|
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm |
| Front Center | 618 mm | 638 mm | 652 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Top Tube Length | 551 mm | 576 mm | 596 mm |
| Seat Tube Angle | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 406 mm | 457 mm | 508 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 120 mm | 125 mm | 130 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1045 mm | 1065 mm | 1079 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 148 cm | 160 cm | 173 cm |
| Rider Max Height | 162 cm | 175 cm | 185 cm |
Model Overview

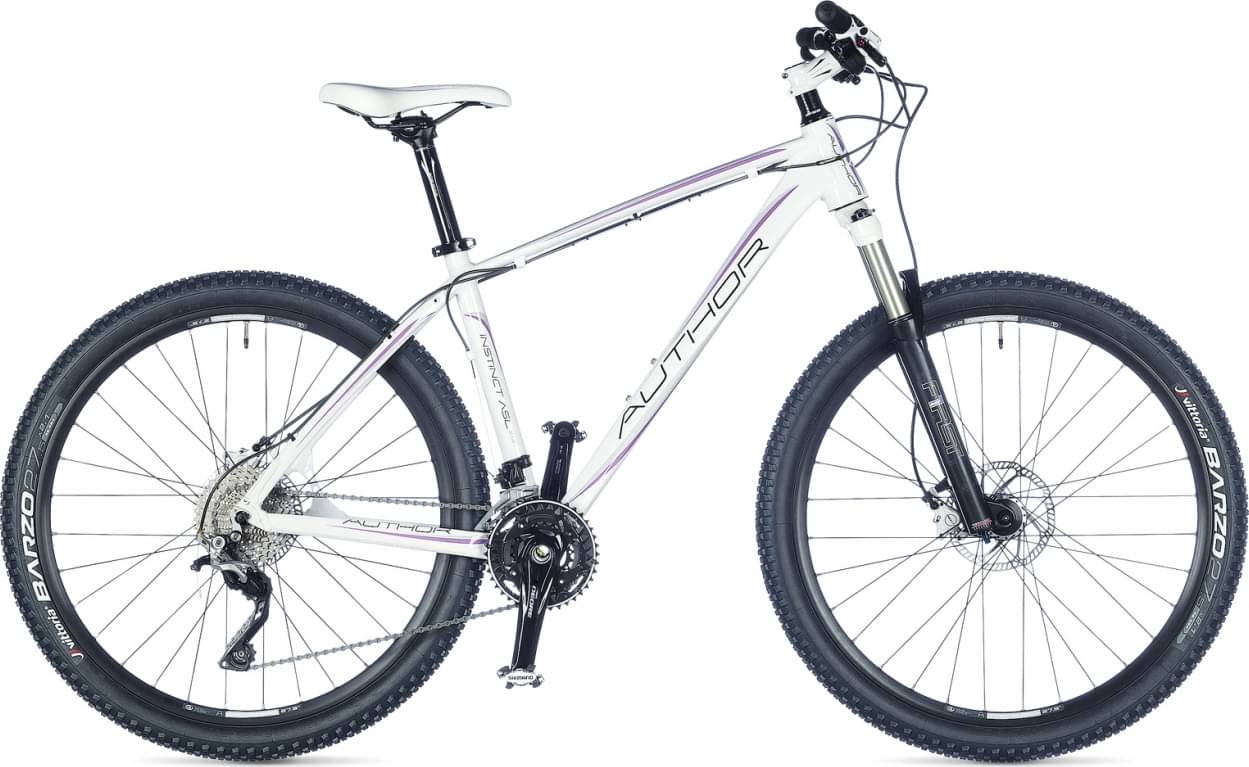

Instinct ASL is part of the Author Instinct model. There are 20 bikes that carry this model name. You can easily view all of the Author Instinct bikes models from 2015, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Average weight for Crosscountry bikes
Crosscountry bikes have an average weight of 12.4 kg (27.34 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 12.5 kg (27.56 lbs), the Instinct ASL model is slightly heavier than average. In conclusion, the average Crosscountry bike weighs 0.81% less than Instinct ASL.
Overview of components
Fork
The Instinct ASL comes factory-installed with the RST F1RST fork. This has a travel range of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
As for the wheels, Author Instinct ASL 2015, has a 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Instinct ASL has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Instinct ASL comes in 3 sizes, that range from 148 cm – 185 cm (4.86 ft – 6.07 ft). In conclusion, it won’t take much to find one that’s right for you.
