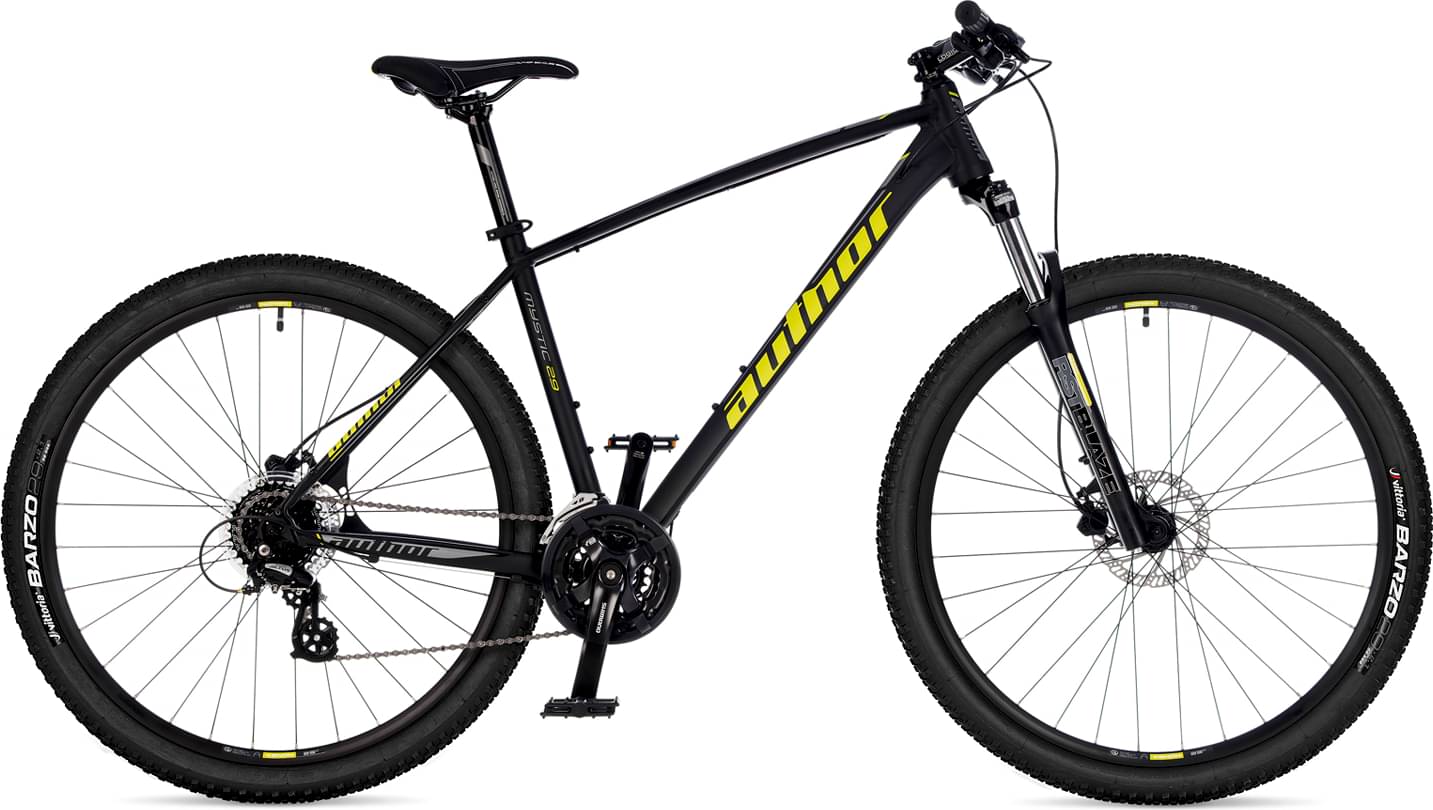

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork RST BLAZE
-
Groupset Altus, Tourney -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
17"
168cm - 180cm
19"
177cm - 190cm
21"
187cm - 202cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
hydroformed alloy 6061 29"
Suspension Fork
RST Blaze 29 ML, lock out (100 mm)
Drivetrain
Rear Derailleur
SHIMANO Altus
Front Derailleur
SHIMANO TY700 (34.9)
Shift Levers
SHIMANO Altus (24)
Cassette
SHIMANO HG200-8 12-32 (8)
Crank
SHIMANO TY501, 42-34-24 teeth, 170 / 175 mm cranks
Chain
KMC Z8.3
Pedals
resin
Wheels
Front Hub
QUANDO Disc, 32 holes
Rear Hub
QUANDO Disc, 32 holes
Rims
AUTHOR Xenon 29, 32 holes
Spokes
black steel
Tires
VITTORIA Barzo 29" × 2.10"
Brakes
Brakes
TEKTRO HD-M275, disc hydraulic (6" rotors)
Cockpit
Stem
AUTHOR alloy
Handlebar
AUTHOR Flatbar, 9°, 700 mm
Grips
AUTHOR kratton rubber
Seat
Saddle
AUTHOR Courier
Seatpost
AUTHOR alloy (31.6)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 17" | 19" | 21" |
|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.53 mm | 1.49 mm |
| Bottom Bracket Height | 311 mm | 311 mm | 311 mm |
| Front Center | 682 mm | 704 mm | 724 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 90 mm | 89 mm | 89 mm |
| Stack | 630 mm | 644 mm | 653 mm |
| Reach | 405 mm | 421 mm | 438 mm |
| Top Tube Length | 598 mm | 618 mm | 638 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 432 mm | 483 mm | 535 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 115 mm | 130 mm | 140 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1123 mm | 1145 mm | 1165 mm |
| Bottom Bracket Drop | 63 mm | 63 mm | 63 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 168 cm | 177 cm | 187 cm |
| Rider Max Height | 180 cm | 190 cm | 202 cm |
Model Overview
Mystic 29 is part of the Author Mystic model. 2 bikes variations carry this model name so far. Check out the entire range from 2023 of this model, by clicking this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Crosscountry bikes average weight
On a deeper look, we notice that the average weight of a Crosscountry bike is 12.31 kg (27.14 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
much heavier than average, Mystic 29 has a weight of 14.9 kg (32.85 lbs). In short, the average Crosscountry bike weight is 21.04% lower than this one.
Overview of components
Fork
The RST BLAZE is included from the factory. It has a travel distance of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When it comes to wheels, the Mystic 29 bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Author Mystic 29 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Mystic 29 comes in 3 sizes, that range from 168 cm – 202 cm (5.51 ft – 6.63 ft). In conclusion, finding one for you shouldn’t be a problem.
