Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 700c -
Groupset Tiagra, Shimano -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
48cm
154cm - 162cm
50cm
160cm - 170cm
52cm
168cm - 178cm
54cm
176cm - 188cm
56cm
186cm - 195cm
58cm
193cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
triple butted cromoly
Suspension Fork
cromoly 700C
Drivetrain
Rear Derailleur
SHIMANO Tiagra
Front Derailleur
SHIMANO Tiagra (28.6)
Shift Levers
SHIMANO Tigrra (20)
Cassette
SHIMANO HG500-10 11-34 (10)
Crank
SHIMANO Tiagra Compact 50-34 teeth 170 / 172.5 / 175 mm cranks
Chain
KMC X10
Wheels
Front Hub
QUANDO Road Disc 32 holes
Rear Hub
QUANDO Road Disc 32 holes
Rims
JALCO CR25D 32 holes
Spokes
black stainless steel 1.8 mm
Tires
RITCHEY SpeedMax kevlar 700 x 40c
Brakes
Brakes
REVER MCX2 disc mechanical (160 mm rotors)
Cockpit
Stem
AUTHOR
Handlebar
AUTHOR 420 / 440 mm
Seat
Saddle
AUTHOR Patriot
Seatpost
AUTHOR (27.2)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 50cm | 52cm | 54cm | 56cm | 58cm |
|---|---|---|---|---|---|---|
| Bottom Bracket Height | 284 mm | 284 mm | 284 mm | 284 mm | 284 mm | 284 mm |
| Front Center | 583 mm | 596 mm | 605 mm | 606 mm | 611 mm | 616 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Top Tube Length | 510 mm | 523 mm | 533 mm | 540 mm | 555 mm | 565 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 480 mm | 500 mm | 520 mm | 540 mm | 560 mm | 580 mm |
| Head Tube Angle | 70.8 ° | 70.8 ° | 71 ° | 71 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 110 mm | 110 mm | 120 mm | 135 mm | 145 mm | 155 mm |
| Chainstay Length | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 994 mm | 1007 mm | 1016 mm | 1018 mm | 1023 mm | 1028 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 154 cm | 160 cm | 168 cm | 176 cm | 186 cm | 193 cm |
| Rider Max Height | 162 cm | 170 cm | 178 cm | 188 cm | 195 cm | 205 cm |

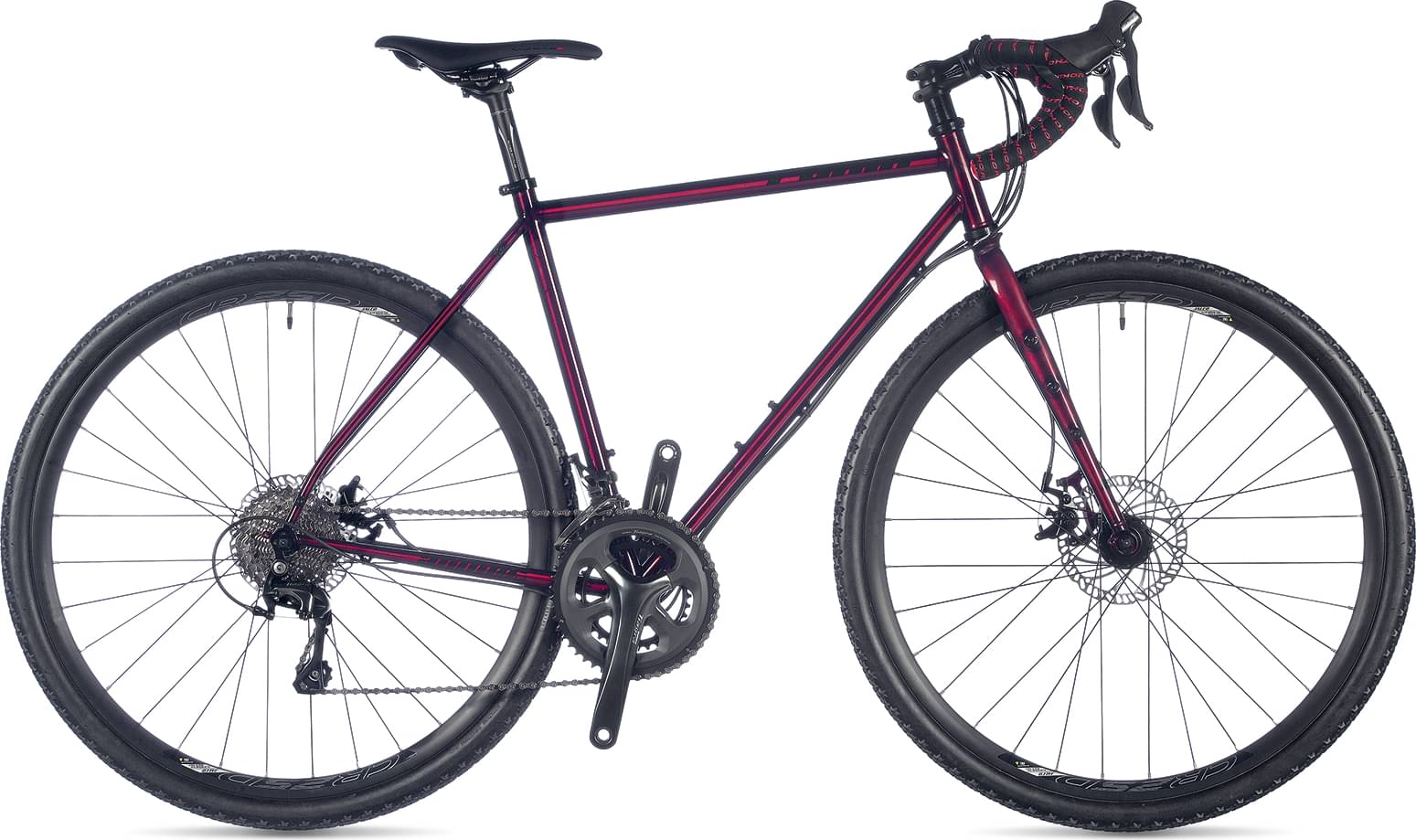

About this model
Ronin is part of the Author Ronin model. Author released 12 bikes variations of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Gravel bikes
According to our math, the average price for a trustworthy Gravel bike is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Average weight for Gravel bikes
If we make a quick analysis of the average weight of a Gravel bike, we get 8.13 kg (17.92 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
much heavier than average, Ronin has a weight of 11.7 kg (25.79 lbs). To sum up, it’s 43.91% heavier than the average weight of Gravel bikes.
Ronin components
Fork material
When it comes to the fork, this bike has a steel one, which is tougher than carbon in the case of an impact. However, it can add some extra weight to the bike.
Wheels
When leaving the production line, the Ronin model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Author Ronin has Mechanical Disc brakes installed. They deliver good performance and cost less than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
Sizes
Ronin comes in 6 sizes, that range from 154 cm – 205 cm (5.05 ft – 6.73 ft). In conclusion, it won’t take much to find one that’s right for you.
