Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork RST AERIAL
-
Groupset Alivio, Shimano -
Suspension Hardtail -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
17"
168cm - 180cm
19"
177cm - 190cm
21"
187cm - 202cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
hydroformed alloy 6061 29"
Suspension Fork
RST Aerial 29 TRL air, remote lock out (100 mm)
Drivetrain
Rear Derailleur
SHIMANO Alivio
Front Derailleur
SHIMANO Alivio (34.9)
Shift Levers
SHIMANO Alivio (18)
Cassette
SHIMANO HG400-9 11-36 (9)
Crank
SHIMANO MT210-2 36-22 teeth 170 / 175 mm cranks
Chain
KMC Z9
Pedals
AUTHOR alloy
Wheels
Front Hub
QUANDO Disc 32 holes
Rear Hub
QUANDO Disc 32 holes
Rims
AUTHOR Xenon TRC 29 32 holes
Spokes
black steel
Tires
VITTORIA Barzo 29" × 2.10"
Brakes
Brakes
TEKTRO Auriga disc hydraulic (7" rotors)
Cockpit
Stem
AUTHOR alloy
Handlebar
AUTHOR Flatbar 9° 700 / 720 mm
Grips
AUTHOR Pro Lock
Seat
Saddle
AUTHOR Navigator
Seatpost
AUTHOR alloy (31.6)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 17" | 19" | 21" |
|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.52 mm | 1.48 mm |
| Bottom Bracket Height | 311 mm | 311 mm | 311 mm |
| Front Center | 682 mm | 703 mm | 724 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 89 mm | 89 mm | 89 mm |
| Stack | 626 mm | 640 mm | 650 |
| Reach | 406 mm | 422 mm | 439 mm |
| Top Tube Length | 598 mm | 618 mm | 638 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 432 mm | 483 mm | 535 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 115 mm | 130 mm | 140 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1123 mm | 1144 mm | 1165 mm |
| Bottom Bracket Drop | 63 mm | 63 mm | 63 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 168 cm | 177 cm | 187 cm |
| Rider Max Height | 180 cm | 190 cm | 202 cm |

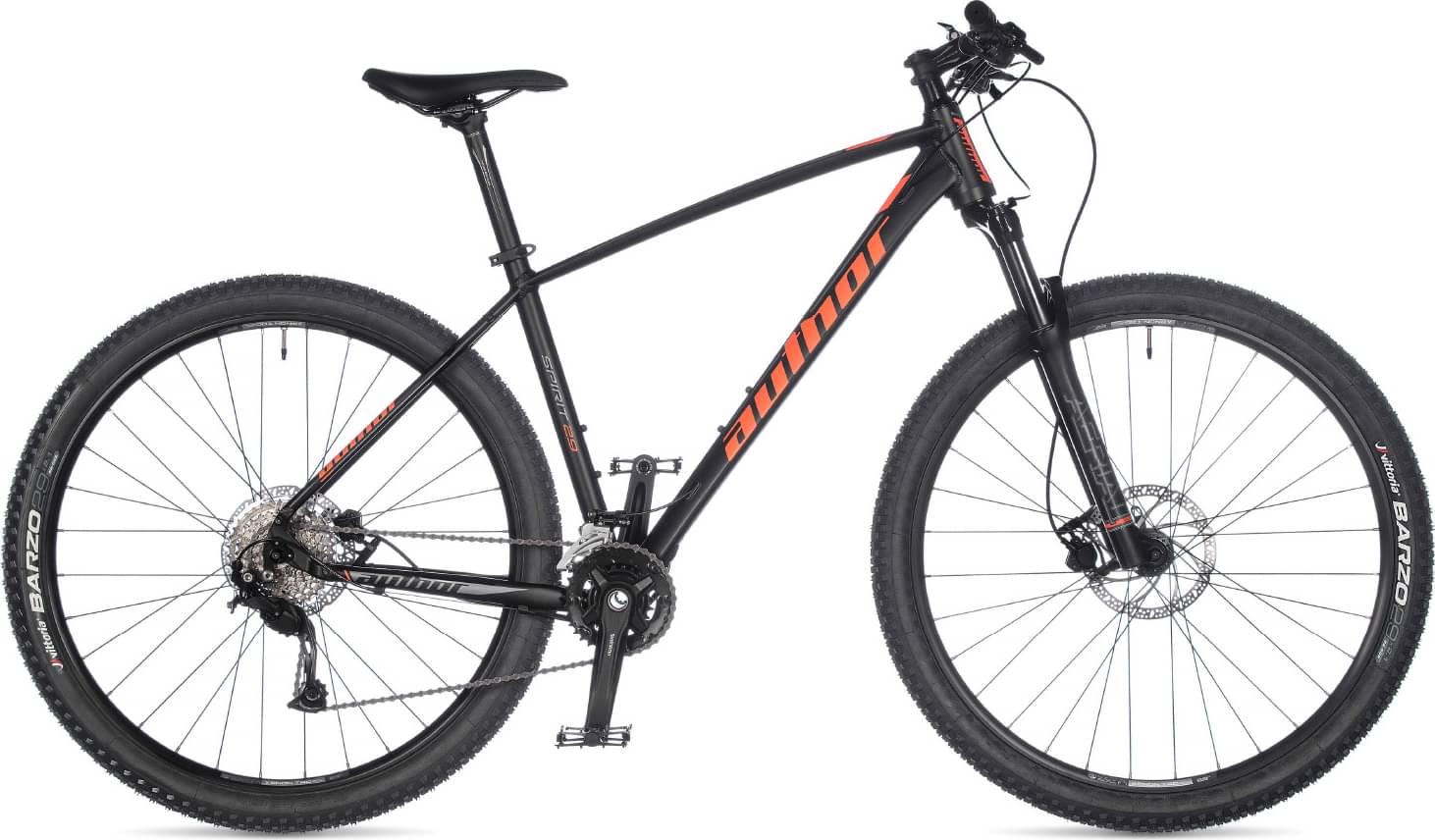

Model Overview
Spirit 29 belongs to the Author Spirit model. 17 bikes variations carry this model name so far. You can easily view all of the Author Spirit bikes models from 2022, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry bikes
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Crosscountry bikes average weight
If we make a quick analysis of the average weight of a Crosscountry bike, we get 12.4 kg (27.34 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 14.2 kg (31.31 lbs), the Spirit 29 model is considerably heavier than average. In other words, this model is 14.52% heavier than the average Crosscountry bike.
Spirit 29 components
Fork
The Spirit 29 comes factory-installed with the RST AERIAL fork. This has a travel range of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
The Spirit 29 2022 bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 168 cm – 202 cm (5.51 ft – 6.63 ft). In short, it won’t be difficult to find the right one for you.
