Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork RST AERIAL
-
Groupset Alivio -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
14"
140cm - 158cm
16"
155cm - 173cm
18"
170cm - 188cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
hydroformed alloy 6061 27.5" (ASL)
Suspension Fork
RST Aerial 27.5 TnL air, lock out (100 mm)
Drivetrain
Rear Derailleur
SHIMANO Alivio
Front Derailleur
SHIMANO Alivio (34.9)
Shift Levers
SHIMANO Alivio (27)
Cassette
SHIMANO HG400-9 11-34 (9)
Crank
SHIMANO M4000 40-30-22 teeth 170 mm cranks
Chain
KMC Z9
Pedals
AUTHOR alloy
Wheels
Front Hub
QUANDO Disc 32 holes
Rear Hub
QUANDO Disc 32 holes
Rims
AUTHOR Xenon 27.5 32 holes
Spokes
black steel
Tires
AUTHOR Speed Master 27.5" x 2.00"
Brakes
Brakes
TEKTRO Auriga disc hydraulic (6" rotors)
Cockpit
Stem
AUTHOR alloy
Handlebar
AUTHOR 9° 640 / 660 mm
Grips
AUTHOR GripLock foam
Seat
Saddle
AUTHOR Fenix
Seatpost
AUTHOR alloy (31.6)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 14" | 16" | 18" |
|---|---|---|---|
| Stack Reach Ratio | 1.64 mm | 1.6 mm | 1.54 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm |
| Front Center | 612 mm | 633 mm | 659 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 83 mm | 86 mm | 86 mm |
| Stack | 606 mm | 613 mm | 622 mm |
| Reach | 369 mm | 382 mm | 404 mm |
| Top Tube Length | 552 mm | 567 mm | 592 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 356 mm | 406 mm | 457 mm |
| Head Tube Angle | 70 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1040 mm | 1061 mm | 1087 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 140 cm | 155 cm | 170 cm |
| Rider Max Height | 158 cm | 173 cm | 188 cm |
About this model

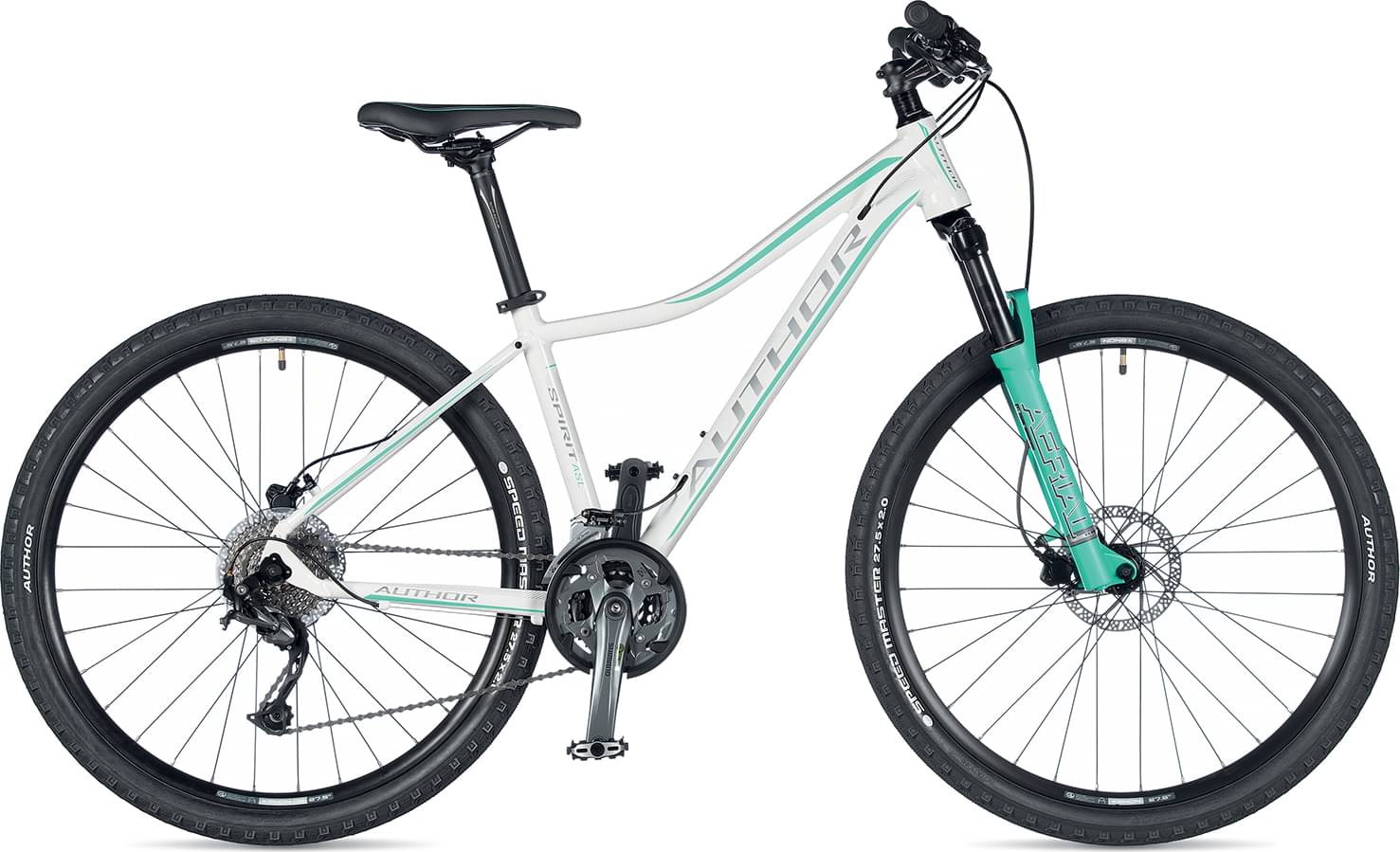

Spirit ASL 27.5 belongs to the Author Spirit model. 17 bikes variations carry this model name so far. You can easily view all of the Author Spirit bikes models from 2019, here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Crosscountry bikes average weight
On a deeper look, we notice that the average weight of a Crosscountry bike is 12.4 kg (27.34 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Spirit ASL 27.5 weighs 13.9 kg (30.64 lbs) and is considerably heavier than the average. In conclusion, the average Crosscountry bike weighs 12.1% less than Spirit ASL 27.5.
Overview of components
Fork
The RST AERIAL is included from the factory. It has a travel distance of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The Spirit ASL 27.5 2019 bike is equipped with 27.5″ aluminum wheels when leaving the factory. These wheels will provide you with more control over the bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Spirit ASL 27.5 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Spirit ASL 27.5 comes in 3 sizes, that range from 140 cm – 188 cm (4.59 ft – 6.17 ft). In short, it won’t be difficult to find the right one for you.
