Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork RST AERIAL
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
17"
168cm - 180cm
19"
177cm - 190cm
21"
187cm - 202cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
double butted hydroformed alloy 6061 29"
Suspension Fork
RST Aerial 29 TRL air, remote lock out (100 mm)
Drivetrain
Rear Derailleur
SHIMANO Deore
Front Derailleur
SHIMANO Deore (34.9)
Shift Levers
SHIMANO Deore (20)
Cassette
SHIMANO CS-M4100-10 11-42 (10)
Crank
SHIMANO M4100-2 36-26 teeth 170 / 175 mm cranks
Chain
KMC X10
Pedals
AUTHOR alloy
Wheels
Front Hub
AUTHOR Radon 32 holes
Rear Hub
AUTHOR Radon 32 holes
Rims
AUTHOR Xenon TRC 29 32 holes
Spokes
black stainless steel 2.0 mm
Tires
VITTORIA Barzo foldable 29" × 2.25"
Brakes
Brakes
TEKTRO Gemini disc hydraulic (7" rotors)
Cockpit
Stem
AUTHOR alloy
Handlebar
AUTHOR Flatbar 9° 700 / 720 mm
Grips
AUTHOR Pro Lock
Seat
Saddle
AUTHOR Navigator
Seatpost
AUTHOR alloy (31.6)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 17" | 19" | 21" |
|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.49 mm | 1.45 mm |
| Bottom Bracket Height | 313 mm | 313 mm | 313 mm |
| Front Center | 677 mm | 697 mm | 718 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 82 mm | 82 mm | 82 mm |
| Stack | 627 mm | 636 mm | 646 mm |
| Reach | 411 mm | 428 mm | 445 mm |
| Top Tube Length | 603 mm | 623 mm | 643 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 432 mm | 483 mm | 535 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1111 mm | 1131 mm | 1152 mm |
| Bottom Bracket Drop | 61 mm | 61 mm | 61 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 168 cm | 177 cm | 187 cm |
| Rider Max Height | 180 cm | 190 cm | 202 cm |
About this model

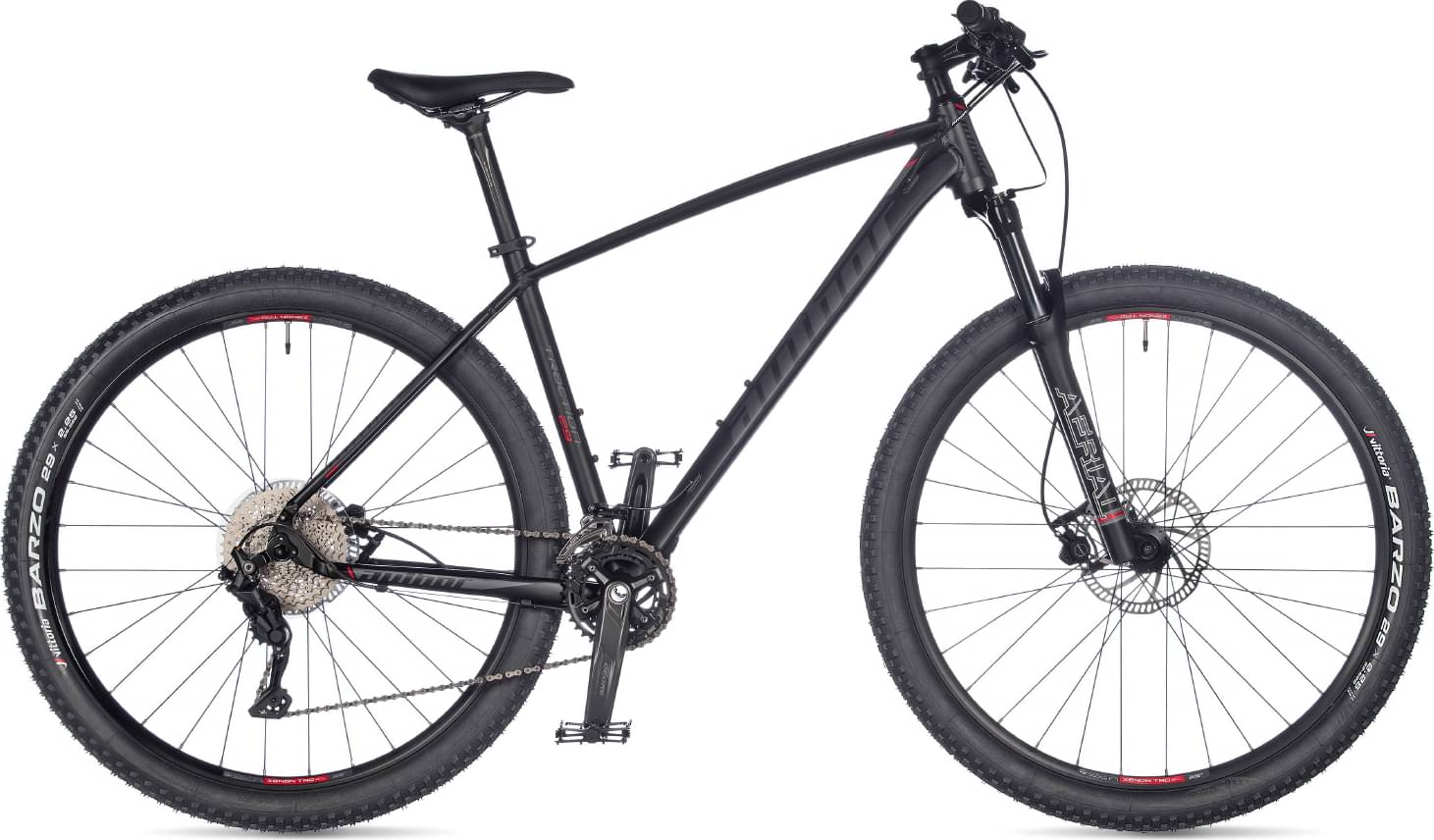

Traction 29 completes the Author Traction model. Author launched 30 bikes of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Average weight for Crosscountry bikes
The average weight for Crosscountry bikes is 12.4 kg (27.34 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
a bit heavier than average, Traction 29 has a weight of 13.3 kg (29.32 lbs). In conclusion, the average Crosscountry bike weighs 7.26% less than Traction 29.
Overview of components
Fork
This bike has the RST AERIAL fork installed. The fork’s travel is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
When leaving the production line, the Traction 29 model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The Traction 29 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 168 cm – 202 cm (5.51 ft – 6.63 ft). In conclusion, you won’t have a problem finding one that suits you.
