Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork RST AERIAL
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
16"
155cm - 168cm
18"
166cm - 182cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
double butted hydroformed alloy 6061 29" (ASL)
Suspension Fork
RST Aerial 29 TRL air, remote lock out (100 mm)
Drivetrain
Rear Derailleur
SHIMANO Deore
Shift Levers
SHIMANO Deore (20)
Cassette
SHIMANO CS-M4100-10, 11-42 (10)
Crank
SHIMANO M4100-2, 36-26 teeth, 170 / 175 mm cranks
Chain
KMC X10
Pedals
AUTHOR alloy
Wheels
Front Hub
AUTHOR Radon, 32 holes
Rear Hub
AUTHOR Radon, 32 holes
Rims
AUTHOR Xenon TRC 29, 32 holes
Spokes
black stainless steel 2.0 mm
Tires
VITTORIA Barzo aramid 29" × 2.25"
Brakes
Brakes
TEKTRO HD-M530, disc hydraulic (7" rotors)
Cockpit
Stem
AUTHOR alloy
Handlebar
AUTHOR Flatbar, 9°, 680 / 700 mm
Grips
AUTHOR GripLock foam
Seat
Saddle
AUTHOR Fenix
Seatpost
AUTHOR alloy (31.6)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" |
|---|---|---|
| Stack Reach Ratio | 1.664 mm | 1.598 mm |
| Bottom Bracket Height | 314 mm | 314 mm |
| Front Center | 648 mm | 668 mm |
| Rake | 51 mm | 51 mm |
| Trail | 86 mm | 86 mm |
| Stack | 629 mm | 633 mm |
| Reach | 378 mm | 396 mm |
| Top Tube Length | 570 mm | 590 mm |
| Seat Tube Angle | 73 ° | 73 ° |
| Seat Tube Length | 406 mm | 457 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° |
| Head Tube Length | 115 mm | 120 mm |
| Chainstay Length | 450 mm | 450 mm |
| Wheelbase | 1091 mm | 1111 mm |
| Bottom Bracket Drop | 60 mm | 60 mm |
| Wheels | 29" | 29" |
| Rider Min Height | 155 cm | 166 cm |
| Rider Max Height | 168 cm | 182 cm |
About this model

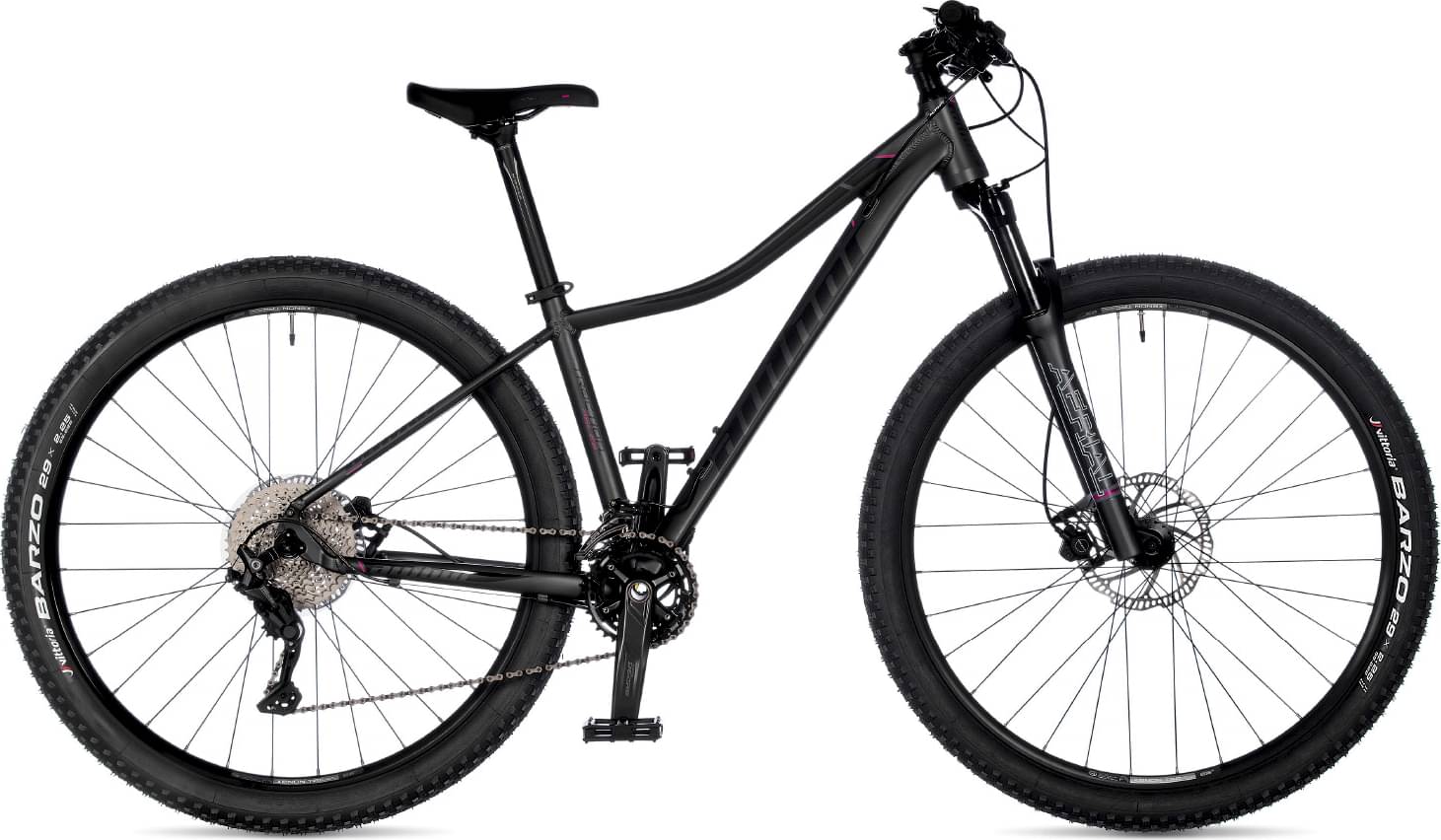

Traction 29 ASL is an Author Traction model. Author launched 34 bikes of this model so far. Take a sneak peek at all Author Traction bikes models from 2024, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Crosscountry bikes average weight
Crosscountry bikes have an average weight of 12.4 kg (27.34 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 13.2 kg (29.1 lbs), the Traction 29 ASL model is a bit heavier than average. In conclusion, the average Crosscountry bike weighs 6.45% less than Traction 29 ASL.
Overview of components
Fork
The Traction 29 ASL comes factory-installed with the RST AERIAL fork. This has a travel range of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When it comes to wheels, the Traction 29 ASL bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. Author Traction 29 ASL is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
There are 2 sizes available for this model. Rider height can be anywhere between 155 cm – 182 cm (5.09 ft – 5.97 ft). In short, it won’t be difficult to find the right one for you.
