Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork RST AERIAL
-
Groupset Deore, Shimano -
Suspension Hardtail -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
14"
140cm - 158cm
16"
155cm - 173cm
18"
170cm - 188cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
double butted hydroformed alloy 6061 27.5" (ASL)
Suspension Fork
RST Aerial 27.5 TnL air, lock out (100 mm)
Drivetrain
Rear Derailleur
SHIMANO Deore
Front Derailleur
SHIMANO Deore (34.9)
Shift Levers
SHIMANO Deore (20)
Cassette
SHIMANO HG500-10 11-42 (10)
Crank
SHIMANO 38-24 teeth 170 mm cranks
Chain
KMC X10
Pedals
AUTHOR alloy
Wheels
Front Hub
AUTHOR Radon 32 holes
Rear Hub
AUTHOR Radon 32 holes
Rims
AUTHOR Xenon Pro 27.5 32 holes
Spokes
black stainless steel 2.0 mm
Tires
VITTORIA Barzo kevlar 27.5" x 2.25"
Brakes
Brakes
TEKTRO Gemini disc hydraulic (6" rotors)
Cockpit
Stem
AUTHOR alloy
Handlebar
AUTHOR 9° 640 / 660 mm
Grips
AUTHOR GripLock foam
Seat
Saddle
AUTHOR Fenix
Seatpost
AUTHOR alloy (31.6)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 14" | 16" | 18" |
|---|---|---|---|
| Stack Reach Ratio | 1.64 mm | 1.6 mm | 1.54 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm |
| Front Center | 612 mm | 633 mm | 659 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 83 mm | 86 mm | 86 mm |
| Stack | 606 mm | 613 mm | 622 mm |
| Reach | 369 mm | 382 mm | 404 mm |
| Top Tube Length | 552 mm | 567 mm | 592 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 356 mm | 406 mm | 457 mm |
| Head Tube Angle | 70 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1040 mm | 1061 mm | 1087 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 140 cm | 155 cm | 170 cm |
| Rider Max Height | 158 cm | 173 cm | 188 cm |
Model Overview

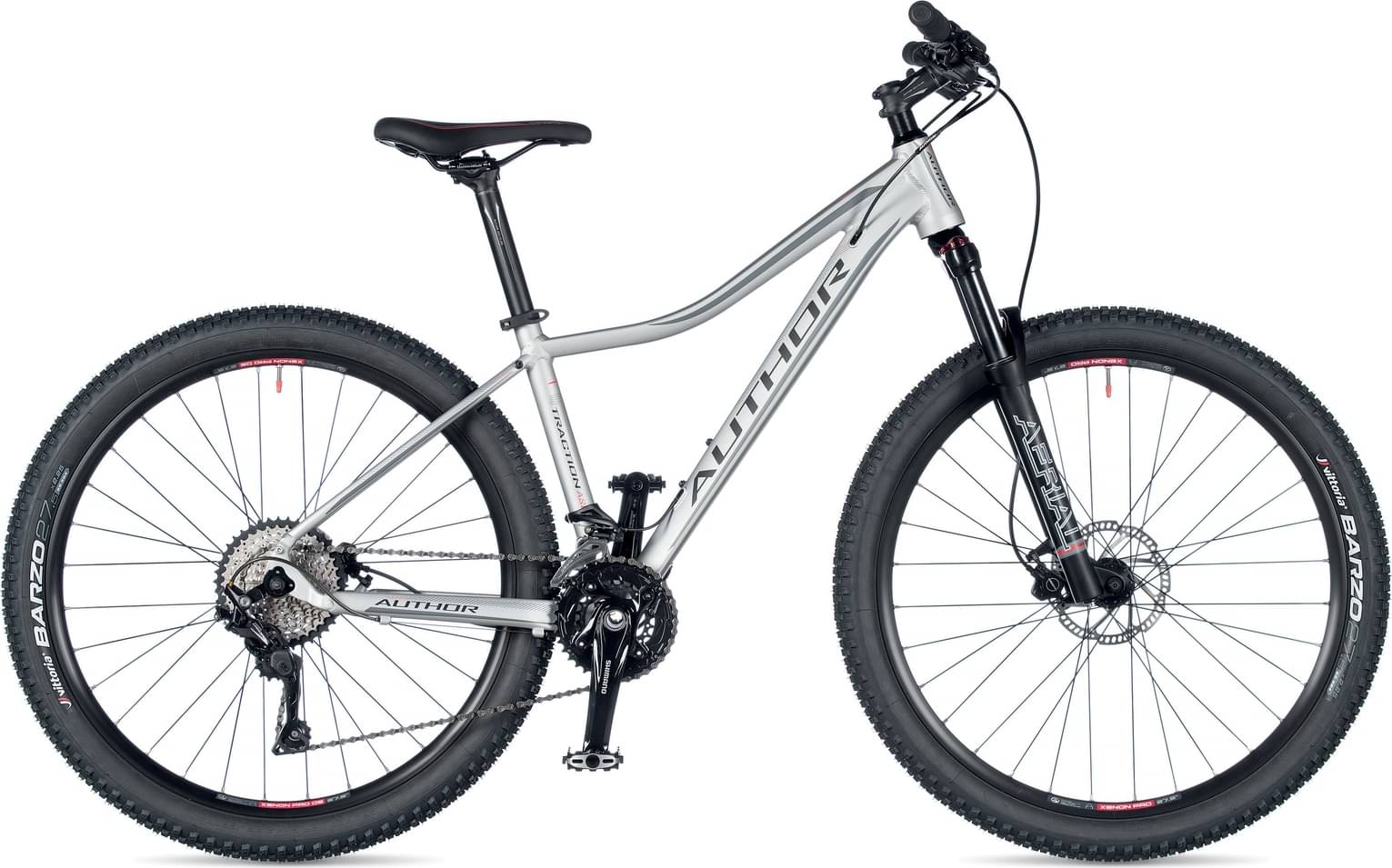

Traction ASL 27.5 is an Author Traction model. Author launched 30 bikes of this model so far. Check out the entire range from 2019 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry bikes average price
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Crosscountry bikes average weight
Crosscountry bikes weigh an average of 12.4 kg (27.34 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 12.8 kg (28.22 lbs), Author bike is slightly heavier than average. To sum up, it’s 3.23% heavier than the average weight of Crosscountry bikes.
Traction ASL 27.5 components
Fork
This bike has the RST AERIAL fork installed. The fork’s travel is 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The Traction ASL 27.5 2019 bike is equipped with 27.5″ aluminum wheels when leaving the factory. These wheels will provide you with more control over the bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Author Traction ASL 27.5 has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
This bike is available in 3 sizes. They vary from 140 cm – 188 cm (4.59 ft – 6.17 ft). In short, it won’t be difficult to find the right one for you.
