Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 80mm -
Fork RST GILA
-
Groupset Alivio, Altus -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
16"
150cm - 168cm
18"
165cm - 178cm
20"
175cm - 188cm
22"
185cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
alloy 6061 29"
Suspension Fork
RST Gila 29 TnL lock out (80 mm)
Drivetrain
Rear Derailleur
SHIMANO Alivio
Front Derailleur
SHIMANO Altus (31.8)
Shift Levers
SHIMANO Alivio (27)
Cassette
SHIMANO HG200-9, 11-34 (9)
Crank
PROWHEEL Zephyr, 48-36-26 teeth, 170 / 175 mm cranks
Chain
KMC Z9
Pedals
AUTHOR Non Slip resin
Wheels
Front Hub
QUANDO Disc, 32 holes
Rear Hub
QUANDO Disc, 32 holes
Rims
AUTHOR Xenon 29, 32 holes
Spokes
black steel
Tires
AUTHOR Speed Master 29" × 1.75"
Brakes
Brakes
TEKTRO HD-T275, disc hydraulic (6" rotors)
Cockpit
Stem
ZOOM adjustable
Handlebar
steel, 20 mm, 680 mm
Grips
AUTHOR ErgoGrip
Seat
Saddle
AUTHOR Sphere
Seatpost
ZOOM alloy (27.2)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" | 20" | 22" |
|---|---|---|---|---|
| Front Center | 610 mm | 636 mm | 656 mm | 677 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Top Tube Length | 560 mm | 580 mm | 600 mm | 620 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 406 mm | 457 mm | 508 mm | 559 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 110 mm | 130 mm | 150 mm | 160 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1053 mm | 1079 mm | 1099 mm | 1120 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 150 cm | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 168 cm | 178 cm | 188 cm | 200 cm |
Model Overview

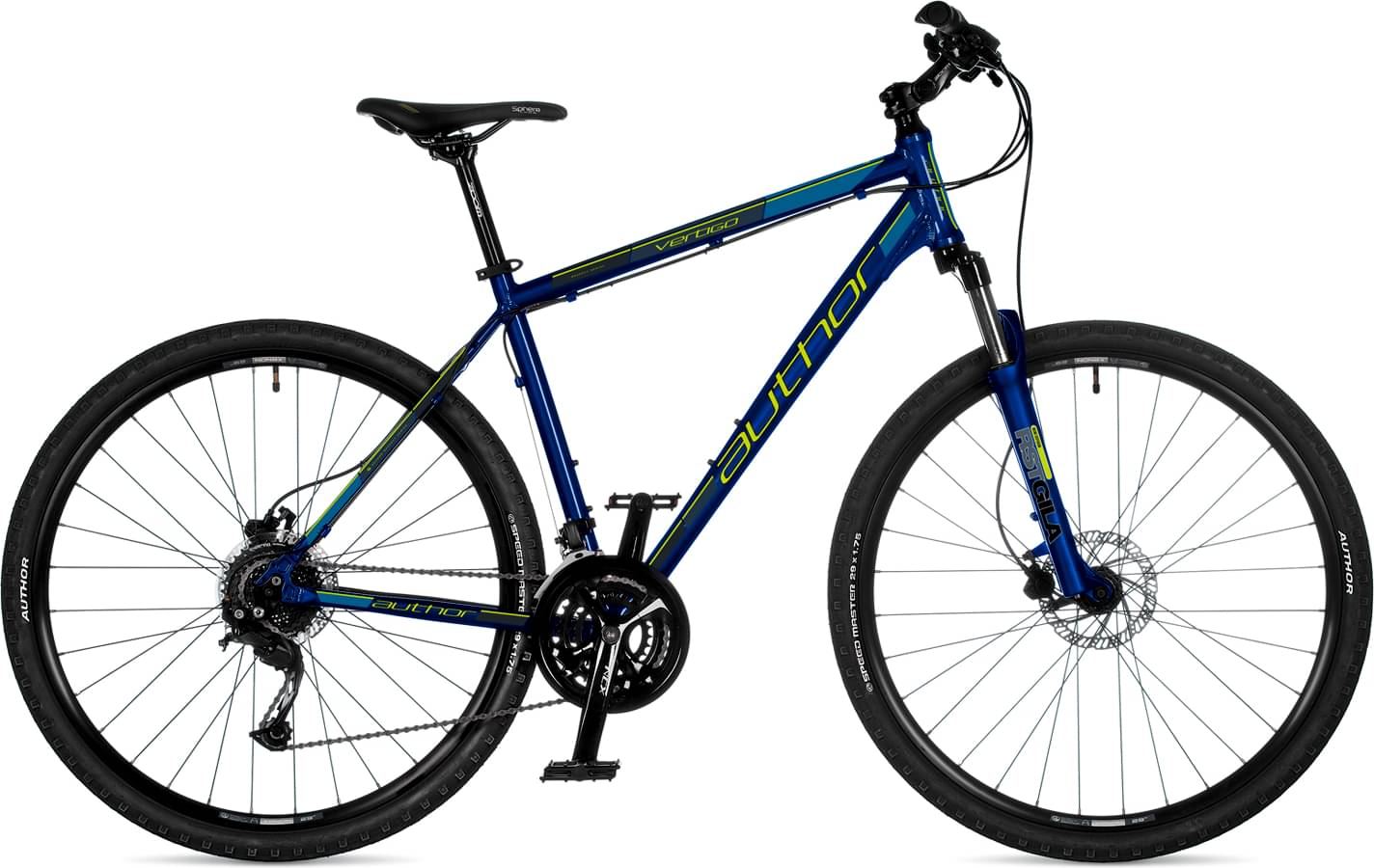

Vertigo is an Author Vertigo model. Author released 17 bikes variations of this model so far. Take a sneak peek at all Author Vertigo bikes models from 2024, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Hybrid bikes
According to our calculations, the average cost of a Hybrid bike that is reliable is 562$. However, even though the average price of a Hybrid bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Hybrid bikes average weight
If we make a quick analysis of the average weight of a Hybrid bike, we get 13.85 kg (30.53 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
considerably heavier than average, Vertigo has a weight of 15.5 kg (34.17 lbs). In conclusion, the average Hybrid bike weighs 11.91% less than Vertigo.
Overview of components
Fork
This bike has the RST GILA fork installed. The fork’s travel is 80mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When it comes to wheels, the Vertigo bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Author Vertigo has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 150 cm – 200 cm (4.92 ft – 6.56 ft). In short, it won’t be difficult to find the right one for you.
