Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 80mm -
Fork RST GILA
-
Groupset Altus, Suntour -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
15"
145cm - 158cm
17"
155cm - 172cm
19"
170cm - 185cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
alloy 6061 29" (ASL)
Suspension Fork
RST Gila 29 TnL lock out (80 mm)
Drivetrain
Rear Derailleur
SHIMANO Altus
Front Derailleur
SHIMANO Altus (31.8)
Shift Levers
SHIMANO Altus (27)
Cassette
SHIMANO HG200-9 11-34 (9)
Crank
SUNTOUR NCX 44-32-22 teeth 170 / 175 mm cranks
Chain
KMC Z9
Pedals
AUTHOR Non Slip resin
Wheels
Front Hub
QUANDO Disc 32 holes
Rear Hub
QUANDO Disc 32 holes
Rims
AUTHOR Xenon 29 32 holes
Spokes
black steel
Tires
AUTHOR Speed Master 29"x 1.75"
Brakes
Brakes
TEKTRO disc hydraulic (6" rotors)
Cockpit
Stem
ZOOM adjustable
Handlebar
steel 20 mm 660 / 680 mm
Grips
AUTHOR ErgoGrip
Seat
Saddle
AUTHOR Area
Seatpost
ZOOM alloy (27.2)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" |
|---|---|---|---|
| Front Center | 621 mm | 635 mm | 663 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Top Tube Length | 548 mm | 568 mm | 588 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1062 mm | 1076 mm | 1104 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 145 cm | 155 cm | 170 cm |
| Rider Max Height | 158 cm | 172 cm | 185 cm |

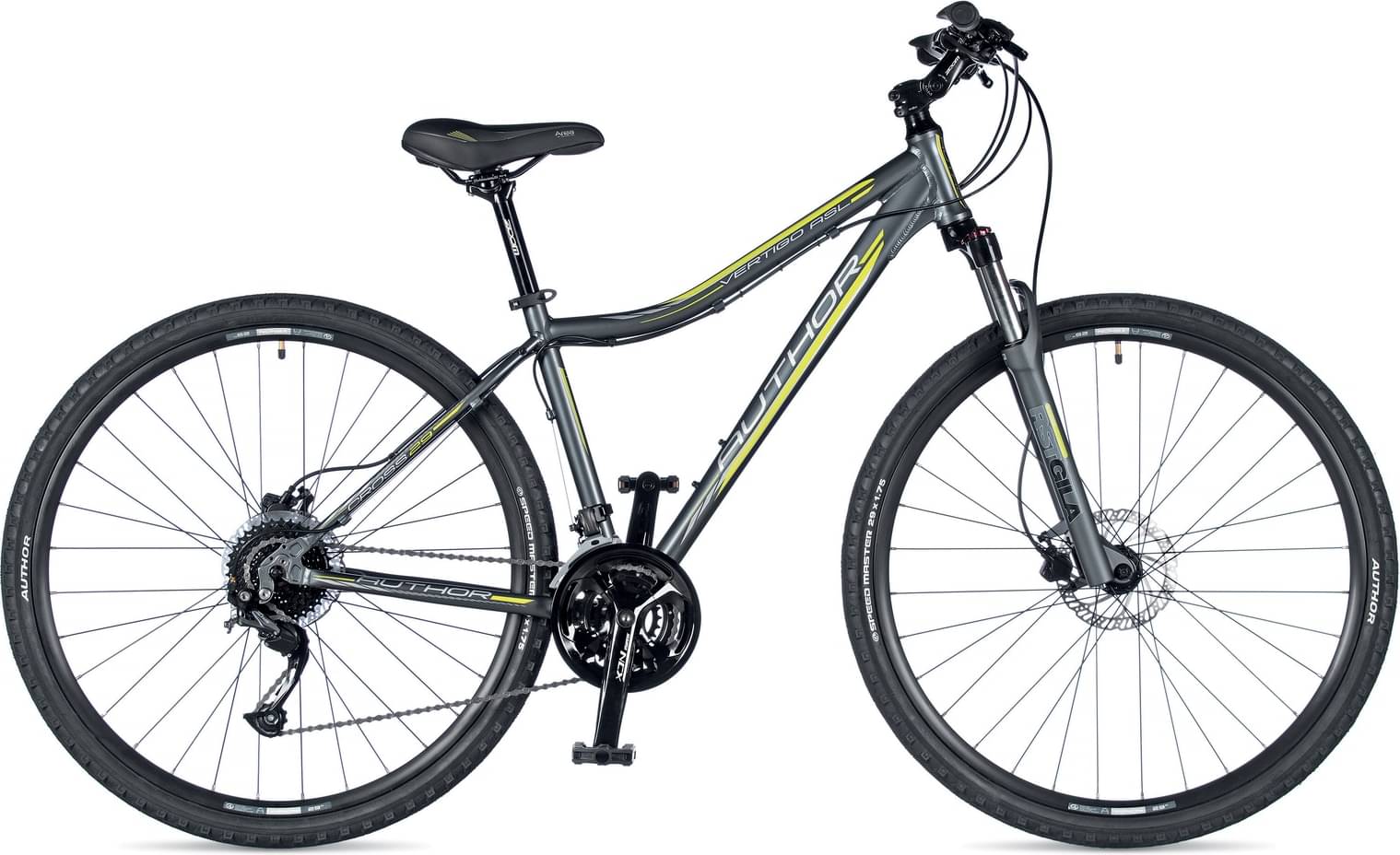

Model Overview
Vertigo ASL completes the Author Vertigo model. 15 bikes variations carry this model name so far. You can easily view all of the Author Vertigo bikes models from 2019, here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Hybrid bikes average price
Our math shows that the average cost of a dependable Hybrid bike is 562$. However, this doesn’t mean that if you spend less money on a Hybrid bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Hybrid bikes average weight
Hybrid bikes have an average weight of 13.85 kg (30.53 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 15.1 kg (33.29 lbs), the Vertigo ASL model is a bit heavier than average. In short, the average Hybrid bike weight is 9.03% lower than this one.
Overview of components
Fork
The Vertigo ASL comes factory-installed with the RST GILA fork. This has a travel range of 80mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
When leaving the production line, the Vertigo ASL model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The Vertigo ASL has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Author Vertigo ASL bike has 3 sizes, in the range of 145 cm – 185 cm (4.76 ft – 6.07 ft). In short, you can easily find one that suits you.
