Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 80mm -
Fork RST GILA
-
Groupset Alivio, Altus -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
15"
145cm - 158cm
17"
155cm - 172cm
19"
170cm - 185cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
alloy 6061 29" (ASL)
Suspension Fork
RST Gila 29 TnL lock out (80 mm)
Drivetrain
Rear Derailleur
SHIMANO Alivio
Front Derailleur
SHIMANO Altus (31.8)
Shift Levers
SHIMANO Alivio (27)
Cassette
SHIMANO HG200-9 11-34 (9)
Crank
SUNTOUR NCX 44-32-22 teeth 170 / 175 mm cranks
Chain
KMC Z9
Pedals
AUTHOR Non Slip resin
Wheels
Front Hub
QUANDO Disc 32 holes
Rear Hub
QUANDO Disc 32 holes
Rims
AUTHOR Xenon 29 32 holes
Spokes
black steel
Tires
AUTHOR Speed Master 29" × 1.75"
Brakes
Brakes
TEKTRO disc hydraulic (6" rotors)
Cockpit
Stem
ZOOM adjustable
Handlebar
steel 20 mm 660 / 680 mm
Grips
AUTHOR ErgoGrip
Seat
Saddle
AUTHOR Area
Seatpost
ZOOM alloy (27.2)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" |
|---|---|---|---|
| Front Center | 621 mm | 642 mm | 663 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Top Tube Length | 548 mm | 568 mm | 588 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1062 mm | 1083 mm | 1104 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 145 cm | 155 cm | 170 cm |
| Rider Max Height | 158 cm | 172 cm | 185 cm |
About this model

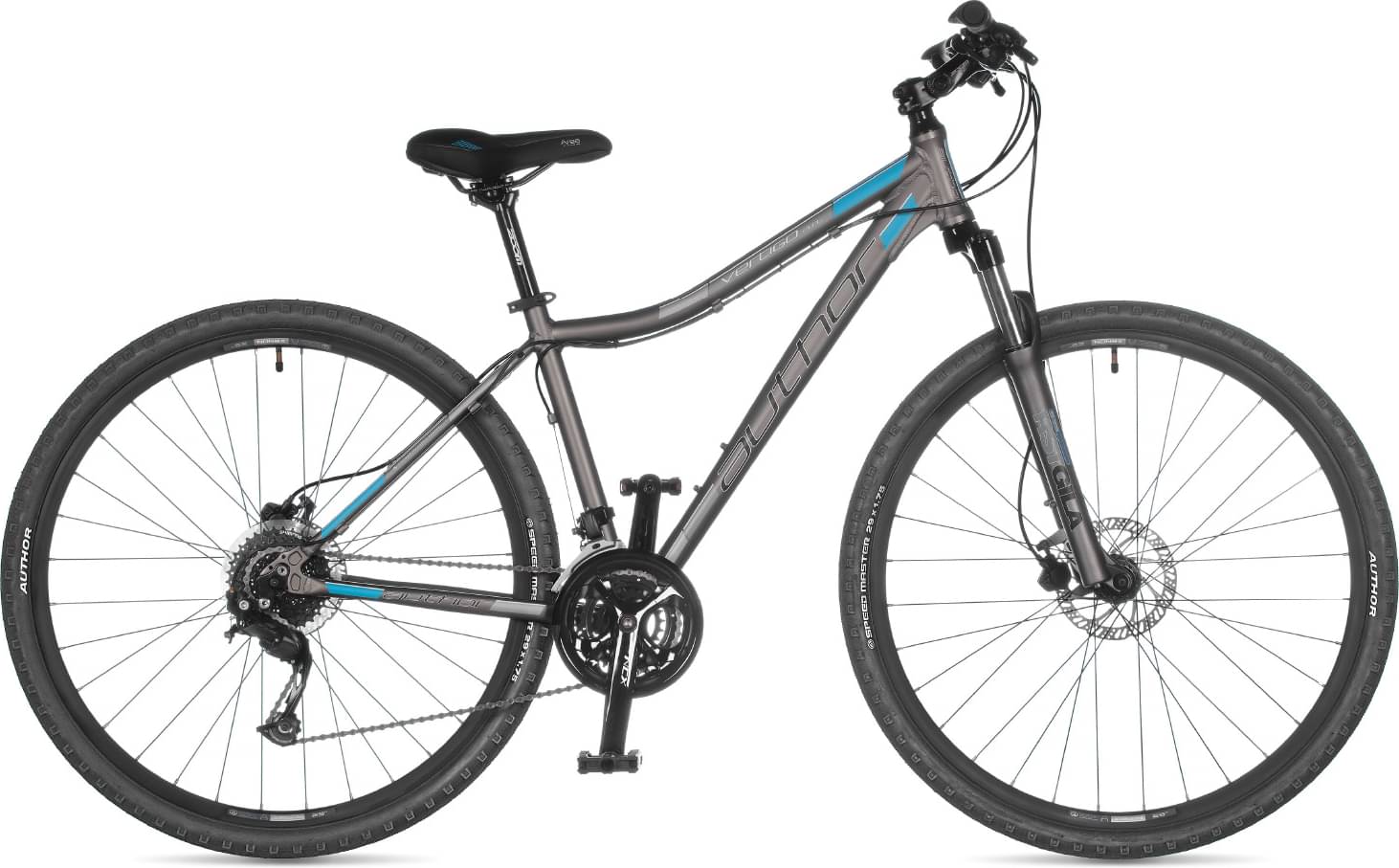

Vertigo ASL belongs to the Author Vertigo model. Author launched 15 bikes of this model so far. You can easily view all of the Author Vertigo bikes models from 2022, here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Hybrid bikes
If you want to purchase a solid Hybrid bike, it is important to know that the average cost is 562$. However, you could also get a good Hybrid bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Hybrid bikes average weight
On a deeper look, we notice that the average weight of a Hybrid bike is 13.85 kg (30.53 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
considerably heavier than average, Vertigo ASL has a weight of 15.4 kg (33.95 lbs). In conclusion, the average Hybrid bike weighs 11.19% less than Vertigo ASL.
Overview of components
Fork
Author Vertigo ASL 2022 bike is equipped with the RST GILA fork, and has 80mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
As for the wheels, Author Vertigo ASL 2022, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Vertigo ASL comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Author Vertigo ASL bike has 3 sizes, in the range of 145 cm – 185 cm (4.76 ft – 6.07 ft). In conclusion, it won’t take much to find one that’s right for you.
