Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 80mm -
Fork RST GILA
-
Groupset Alivio, Altus -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
15"
145cm - 158cm
17"
155cm - 172cm
19"
170cm - 185cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
alloy 6061 29" (ASL)
Suspension Fork
RST Gila 29 TnL lock out (80 mm)
Drivetrain
Rear Derailleur
SHIMANO Alivio
Front Derailleur
SHIMANO Altus (31.8)
Shift Levers
SHIMANO Alivio (27)
Cassette
SHIMANO HG200-9, 11-34 (9)
Crank
PROWHEEL Burner, 44-32-22 teeth, 170 / 175 mm cranks
Chain
KMC Z9
Pedals
AUTHOR Non Slip resin
Wheels
Front Hub
QUANDO Disc, 32 holes
Rear Hub
QUANDO Disc, 32 holes
Rims
AUTHOR Xenon 29, 32 holes
Spokes
black steel
Tires
AUTHOR Speed Master 29" × 1.75"
Brakes
Brakes
TEKTRO HD-T275, disc hydraulic (6" rotors)
Cockpit
Stem
ZOOM adjustable
Handlebar
steel, 20 mm, 660 / 680 mm
Grips
AUTHOR ErgoGrip
Seat
Saddle
AUTHOR Area
Seatpost
ZOOM alloy (27.2)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" |
|---|---|---|---|
| Front Center | 621 mm | 642 mm | 663 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Top Tube Length | 550 mm | 570 mm | 590 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1064 mm | 1085 mm | 1106 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 145 cm | 155 cm | 170 cm |
| Rider Max Height | 158 cm | 172 cm | 185 cm |
Model Overview

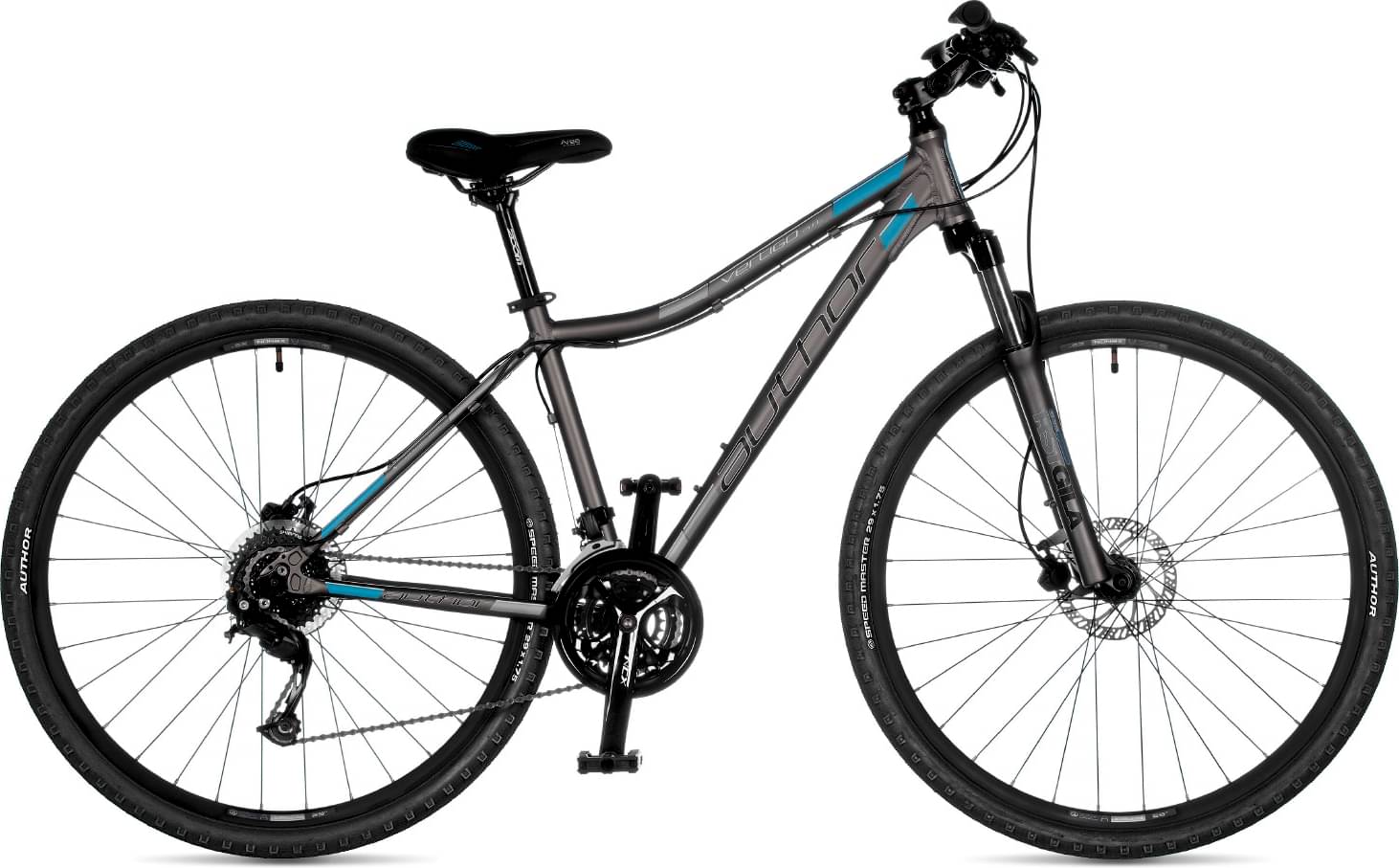

Vertigo ASL is an Author Vertigo model. Author released 17 bikes variations of this model so far. You can easily view all of the Author Vertigo bikes models from 2024, here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Hybrid bikes average price
Our math shows that the average cost of a dependable Hybrid bike is 562$. However, this doesn’t mean that if you spend less money on a Hybrid bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Hybrid bikes average weight
On a deeper look, we notice that the average weight of a Hybrid bike is 13.85 kg (30.53 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Author Vertigo ASL it’s weighing 15.4 kg (33.95 lbs). At this weight, is considerably heavier than average. To sum up, it’s 11.19% heavier than the average weight of Hybrid bikes.
Vertigo ASL components
Fork
The fork installed on this bike is the RST GILA model. The travel on this model is 80mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
When leaving the production line, the Vertigo ASL model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Author Vertigo ASL is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This bike is available in 3 sizes. They vary from 145 cm – 185 cm (4.76 ft – 6.07 ft). In conclusion, finding one for you shouldn’t be a problem.
