Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 80mm -
Groupset microSHIFT, microSHIFT Mezzo -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ADT Custom FormTech 6061 Alloy, Integrated Headtube, Replaceable dropouts
Suspension Fork
Suspension, Alloy Crown and Lowers, 80mm Travel
Drivetrain
Rear Derailleur
Micro Shift RD-M21L
Front Derailleur
Micro Shift FD-M20
Shift Levers
Micro Shift TS39 21 speed triggers
Cassette
Micro Shift CS-H071, 7-Speed, 12-28T Cassette
Crank
Prowheel Alloy 42/32/24T
Bottom Bracket
Cartridge
Chain
KMC HP6L
Pedals
Resin Platform with ball bearings
Wheels
Front Hub
Alloy, 32H QR Cassette Disc
Rear Hub
Alloy, 32H QR Cassette Disc
Rims
Lightweight Alloy 32H Double Wall Disc
Spokes
Stainless Steel
Tires
MTB 27.5 x 2.6
Brakes
Brakes
JAK Y-2 Hydraulic Disc, 160mm Rotors
Brake Levers
JAK Y-2 Hydraulic
Cockpit
Handlebar
Lightweight Alloy Riser, 15 Rise, 9Sweep, 680mm wide, 31.8mm
Grips
MTB Kraton soft comfort
Headset
Zoom Alloy ahead
Seat
Saddle
Zero Sport
Seatpost
Alloy 27.2 x 300mm, alloy QR
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Front Center | 617 mm | 628 mm | 631 mm | 652 mm | 677 mm |
| Rake | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Top Tube Length | 528 mm | 550 mm | 563 mm | 583 mm | 608 mm |
| Seat Tube Angle | 75 ° | 74 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 330 mm | 380 mm | 430 mm | 480 mm | 520 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 90 mm | 90 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1060 mm | 1071 mm | 1074 mm | 1095 mm | 1120 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Standover Height | 678 mm | 703 mm | 745 mm | 777 mm | 804 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview

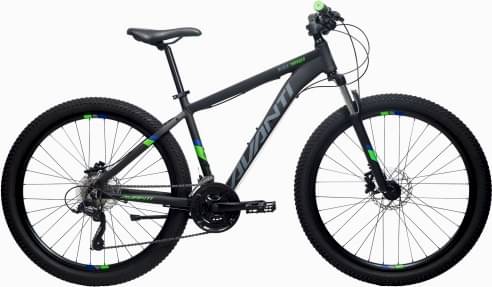

Black Thunder LE is an Avanti Black model. There are 9 bikes that carry this model name. You can easily view all of the Avanti Black bikes models from 2023, here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Fitness bikes
According to our calculations, the average cost of a Fitness bike that is reliable is 656$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Fitness bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork material
The fork on this bike is made out of aluminum, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels size
The Black Thunder LE 2023 bike is equipped with aluminum wheels when leaving the factory. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Black Thunder LE has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Avanti Black Thunder LE bike has 5 sizes, in the range of 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
