Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Travel Front 65mm -
Groupset Altus, Tourney -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ADT 6061 Formtech Alloy, Low Step Design
Suspension Fork
HL 187 Suspension fork, 65mm Travel
Drivetrain
Rear Derailleur
Shimano Altus
Front Derailleur
Shimano TY510
Shift Levers
Shimano EF500 21-Speed
Cassette
Shimano HG200 Cassette, 12-32T 8 Speed
Crank
Shimano TY301 48/38/28T
Bottom Bracket
Cartridge
Chain
KMC Z-7
Pedals
Nylon platform with ball bearings
Wheels
Front Hub
Front: Shimano TX505 Alloy, Rear: TY505 Alloy Centrelock Cassette 32H
Rear Hub
Front: Shimano TX505 Alloy, Rear: TY505 Alloy Centrelock Cassette 32H
Rims
Alex TD26 Double-wall Alloy 36H
Spokes
Stainless Steel
Tires
Kenda Piedmont 700 x 40c AV valve
Brakes
Brakes
Tektro Aries Mechanical Disc, 160mm rotors
Brake Levers
Shimano EF500
Cockpit
Handlebar
Alloy Riser 31.8mm, 17 deg rise, 15deg sweep 680mm
Grips
Zero Comfort
Headset
Integrated Aheadset 1-1/8"
Seat
Saddle
Zero Comfort
Seatpost
Alloy 27.2mm Micro Adjust with Suspension
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.64 mm | 1.63 mm | 1.64 mm |
| Front Center | 610 mm | 632 mm | 647 mm |
| Rake | 43 mm | 43 mm | 43 mm |
| Trail | 82 mm | 81 mm | 82 mm |
| Stack | 605 mm | 624 mm | 643 mm |
| Reach | 368 mm | 382 mm | 391 mm |
| Top Tube Length | 541 mm | 561 mm | 581 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° |
| Seat Tube Length | 350 mm | 425 mm | 480 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 130 mm | 150 mm | 170 mm |
| Chainstay Length | 456 mm | 456 mm | 456 mm |
| Wheelbase | 1057 mm | 1079 mm | 1094 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm |
| Standover Height | 611 mm | 595 mm | 587 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview

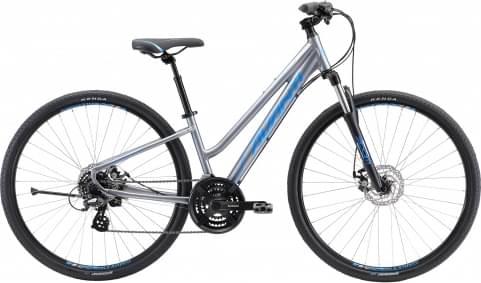

Discovery 1 Low is an Avanti Discovery model. 12 bikes variations carry this model name so far. Check out the entire range from 2022 of this model, by clicking this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Comfort bikes
According to our calculations, the average cost of a Comfort bike that is reliable is 360$. However, you could also get a good Comfort bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Overview of components
Wheels size
As for the wheels, Avanti Discovery 1 Low 2022, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
