Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame aluminium -
Wheels 29" -
Travel Front 100mm -
Travel Rear 80mm -
Fork Suntour MOBIE
-
Groupset Deore, FSA -
Suspension Full -
Motor Bosch 250W 63Nm mid-drive -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
AL-6061 Ultralight tubing, 80mm travel, cartridge bearing pivots, tapered headtube, PowerTube internal battery
Suspension Fork
Suntour Mobie 25 LOR Air, Taper, 100 mm, 15x100 mm axle, remote lockout
Drivetrain
Rear Derailleur
Shimano Deore 10sp Shadow Plus
Shift Levers
Shimano Deore 10sp
Cassette
Shimano Deore Cassette, 10-speed 11-42T
Crank
FSA Gen 3 Bosch ISIS, 38T
Bottom Bracket
Bosch, press-fit
Chain
KMC E10 E-bike chain
Pedals
VP retro with alloy body and rubber gripper
Wheels
Front Hub
Front: Formula centrelock alloy 100x15 32H, Rear: Formula Alloy Centrelock Cassette 148x12mm thru axle
Rear Hub
Front: Formula centrelock alloy 100x15 32H, Rear: Formula Alloy Centrelock Cassette 148x12mm thru axle
Rims
Alex GX26P Gravel rims, double wall
Spokes
Sapim Stainless Steel
Tires
Kenda Sabre 29 x 2.2 with AV tube.
Brakes
Brakes
Shimano MT200 Hydraulic Disc, 180 Centrelock Rotors
Brake Levers
Shimano MT201 hydraulic
Cockpit
Handlebar
Alloy riser bar, 15 deg sweep
Grips
Dual density Ergo
Headset
Integrated Threadless 1 1/8th - 1.5"
Seat
Saddle
Selle Royal Lookin comfort with RoyalGel padding
Seatpost
Syncros Duncan Dropper 31.6mm with internal cable routing
Motor & Battery
Motor
Bosch G3 Performance Line
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.49 mm | 1.49 mm | 1.49 mm |
| Front Center | 677 mm | 694 mm | 709 mm | 725 mm |
| Rake | 44 mm | 44 mm | 44 mm | 45 mm |
| Trail | 84 mm | 84 mm | 84 mm | 82 mm |
| Stack | 614 mm | 628 mm | 642 mm | 656 mm |
| Reach | 410 mm | 421 mm | 431 mm | 441 mm |
| Top Tube Length | 584 mm | 599 mm | 614 mm | 631 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 445 mm | 480 mm | 525 mm | 555 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 125 mm | 140 mm | 155 mm | 170 mm |
| Chainstay Length | 474 mm | 474 mm | 474 mm | 474 mm |
| Wheelbase | 1147 mm | 1164 mm | 1179 mm | 1195 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm |
| Standover Height | 730 mm | 730 mm | 749 mm | 775 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

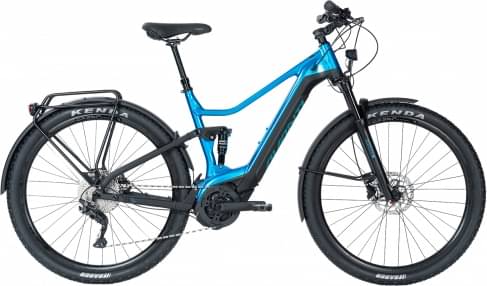

Explorer-E DS1 is part of the Avanti E Explorer E model. There are 6 e-bikes that carry this model name. You can easily view all of the Avanti E Explorer E e-bikes models from 2021, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
General Urban e-bikes average price
According to our math, the average price for a trustworthy General Urban e-bike is 2098$. However, even though the average price of a General Urban e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Explorer-E DS1 components
Fork
The Suntour MOBIE is included from the factory. It has a travel distance of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
When leaving the production line, the Explorer-E DS1 model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Avanti Explorer-E DS1 e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
The Avanti model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
