Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame aluminium -
Wheels 29" -
Travel Front 100mm -
Travel Rear 80mm -
Fork Suntour MOBIE
-
Groupset Deore, FSA -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
AL-6061 Ultralight tubing, 80mm travel, cartridge bearing pivots, tapered headtube, PowerTube internal battery
Suspension Fork
Suntour Mobie 25 LOR Air, Taper, 100 mm, 15x100 mm axle, remote lockout
Drivetrain
Rear Derailleur
Shimano Deore 11sp Shadow Plus
Shift Levers
Shimano Deore 11sp
Cassette
Shimano Deore Cassette, 11-speed 11-51T
Crank
FSA Gen 4 Bosch ISIS, 38T
Bottom Bracket
Bosch, press-fit
Chain
KMC E11 E-bike chain
Pedals
VP retro with alloy body and rubber gripper
Wheels
Front Hub
Front: Formula centrelock alloy 100x15 32H, Rear: Formula Alloy Centrelock Cassette 148x12mm thru axle
Rear Hub
Front: Formula centrelock alloy 100x15 32H, Rear: Formula Alloy Centrelock Cassette 148x12mm thru axle
Rims
Alex GX26P Gravel rims, double wall
Spokes
Sapim Stainless Steel
Tires
Kenda Sabre 29 x 2.2 with AV tube.
Brakes
Brakes
Shimano MT200 Hydraulic Disc, 180 Centrelock Rotors
Brake Levers
Shimano MT201 hydraulic
Cockpit
Handlebar
Alloy riser bar, 15 deg sweep
Grips
Dual density Ergo
Headset
Integrated Threadless 1 1/8th - 1.5"
Seat
Saddle
Selle Royal Lookin comfort with RoyalGel padding
Seatpost
Syncros Duncan Dropper 31.6mm with internal cable routing
Motor & Battery
Motor
Bosch G4 Performance Line CX
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.49 mm | 1.49 mm | 1.49 mm |
| Front Center | 677 mm | 694 mm | 709 mm | 725 mm |
| Rake | 44 mm | 44 mm | 44 mm | 45 mm |
| Trail | 84 mm | 84 mm | 84 mm | 82 mm |
| Stack | 614 mm | 628 mm | 642 mm | 656 mm |
| Reach | 410 mm | 421 mm | 431 mm | 441 mm |
| Top Tube Length | 584 mm | 599 mm | 614 mm | 631 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 445 mm | 480 mm | 525 mm | 555 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 125 mm | 140 mm | 155 mm | 170 mm |
| Chainstay Length | 474 mm | 474 mm | 474 mm | 474 mm |
| Wheelbase | 1147 mm | 1164 mm | 1179 mm | 1195 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm |
| Standover Height | 730 mm | 730 mm | 749 mm | 775 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

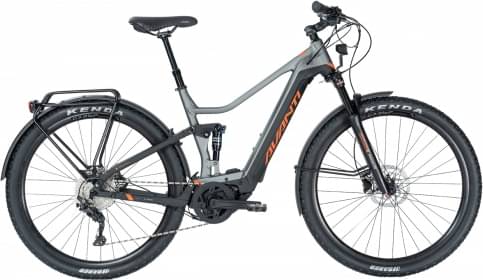

Explorer-E DS2 completes the Avanti E Explorer E model. Avanti launched 6 e-bikes of this model so far. Take a sneak peek at all Avanti E Explorer E e-bikes models from 2021, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
General Urban e-bikes average price
According to our math, the average price for a trustworthy General Urban e-bike is 2098$. However, you could also get a good General Urban e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Explorer-E DS2 components
Fork
The Explorer-E DS2 comes factory-installed with the Suntour MOBIE fork. This has a travel range of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
As for the wheels, Avanti Explorer-E DS2 2021, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Explorer-E DS2 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Explorer-E DS2 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. Therefore, climbing or descending will be a breeze.
