Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame aluminium -
Wheels 29" -
Travel Front 60mm -
Fork Suntour NEX
-
Groupset Acera, Shimano -
Suspension Hardtail -
Motor Bosch 250W 40Nm mid-drive -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
AL-6061 Low-step Alloy with Ultra Light butted tubing, fully-internal battery and internal cables
Suspension Fork
SR NEX HLO, 60mm, hydraulic lockout
Drivetrain
Rear Derailleur
Shimano Acera 8 speed
Shift Levers
Shimano M315 8 speed
Cassette
Shimano HG31 Cassette, 8-speed 11-32T
Crank
Prowheel Alloy, 38T
Chain
KMC
Pedals
VP retro with alloy body and rubber gripper
Wheels
Front Hub
Front: Shimano TX505 Centrelock 36H, Rear: Shimano TX505 Centrelock Cassette 36H
Rear Hub
Front: Shimano TX505 Centrelock 36H, Rear: Shimano TX505 Centrelock Cassette 36H
Rims
Alex TD26 Double-wall Alloy 36H
Spokes
Stainless Steel
Tires
Kenda Small Block 8 29 x 1.75 with K Shield, reflective logos & AV tube
Brakes
Brakes
Tektro M275 Hydraulic Disc, 180 front/160 rear Centrelock Rotors
Brake Levers
Tektro hydraulic
Cockpit
Handlebar
Alloy riser bar, 15deg rear sweep
Grips
Ergonomic comfort
Headset
Integrated Threadless 1/8th
Seat
Saddle
Selle Royal Lookin comfort with RoyalGel padding
Seatpost
Alloy Micro Adjust 31.6mm
Motor & Battery
Motor
Bosch G3 Active Line
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM/MD | MD/LG |
|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.59 mm |
| Front Center | 650 | 655 mm |
| Rake | 51 mm | 50 mm |
| Trail | 73 mm | 74 mm |
| Stack | 604 mm | 623 mm |
| Reach | 392 mm | 391 mm |
| Top Tube Length | 578 mm | 588 mm |
| Seat Tube Angle | 73 ° | 72.5 ° |
| Seat Tube Length | 415 mm | 455 mm |
| Head Tube Angle | 70 ° | 70 ° |
| Head Tube Length | 130 mm | 150 mm |
| Chainstay Length | 471 mm | 471 mm |
| Wheelbase | 1114 mm | 1119 mm |
| Bottom Bracket Drop | 60 mm | 60 mm |
| Standover Height | 700 | 713 mm |
| Wheels | 29" | 29" |
About this model

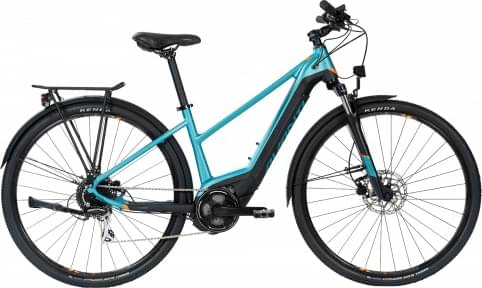

Explorer-E1 Low completes the Avanti E Explorer E1 model. Avanti launched 6 e-bikes of this model so far. You can easily view all of the Avanti E Explorer E1 e-bikes models from 2021, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
General Urban e-bikes average price
Our math shows that the average cost of a dependable General Urban e-bike is 2098$. However, even though the average price of a General Urban e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Explorer-E1 Low components
Fork
The Explorer-E1 Low comes factory-installed with the Suntour NEX fork. This has a travel range of 60mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The wheels on Explorer-E1 Low are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Explorer-E1 Low comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
