Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame aluminium -
Wheels 29" -
Travel Front 60mm -
Fork Suntour NEX
-
Groupset Alivio -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
AL-6061 Alloy with Ultra Light butted tubing, fully-integrated battery and internal cables
Suspension Fork
Suntour NEX E-25 HLO, 60mm, 30mm stanchions, tapered steerer, hydraulic lockout
Drivetrain
Rear Derailleur
Shimano Alivio 9 speed
Shift Levers
Shimano Alivio 9 speed
Cassette
Shimano HG200 Cassette, 9-speed 11-36T
Crank
Prowheel Alloy, 38T
Chain
KMC X9
Pedals
VP retro with alloy body and rubber gripper
Wheels
Front Hub
Shimano M3050 Centrelock Cassette 32H
Rear Hub
Shimano M3050 Centrelock Cassette 32H
Rims
Alex TD26 Double-wall Alloy 32H
Spokes
Stainless Steel
Tires
Kenda Small Block 8 29 x 1.75 with K Shield, reflective logos & AV tube
Brakes
Brakes
Shimano MT200 Hydraulic Disc, 180 front/160 rear Centrelock Rotors
Brake Levers
Shimano MT200 hydraulic
Cockpit
Handlebar
Alloy riser bar, 15deg rear sweep
Grips
Ergonomic comfort
Headset
Integrated Threadless 1/8th-1.5" tapered
Seat
Saddle
Selle Royal Lookin comfort with RoyalGel padding
Seatpost
Alloy Micro Adjust 31.6mm
Motor & Battery
Motor
Bosch G3 Active Line Plus
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM/MD | MD/LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.54 mm | 1.59 mm |
| Front Center | 659 mm | 664 mm | 669 mm |
| Rake | 50 mm | 50 mm | 50 mm |
| Trail | 74 mm | 71 mm | 71 mm |
| Stack | 610 mm | 631 mm | 650 |
| Reach | 408 mm | 411 mm | 409 mm |
| Top Tube Length | 599 mm | 609 mm | 619 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72 ° |
| Seat Tube Length | 455 mm | 495 mm | 535 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 130 mm | 150 mm | 170 mm |
| Chainstay Length | 477 mm | 477 mm | 477 mm |
| Wheelbase | 1129 mm | 1134 mm | 1139 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 781 mm | 814 mm | 846 mm |
| Wheels | 29" | 29" | 29" |
Model Overview

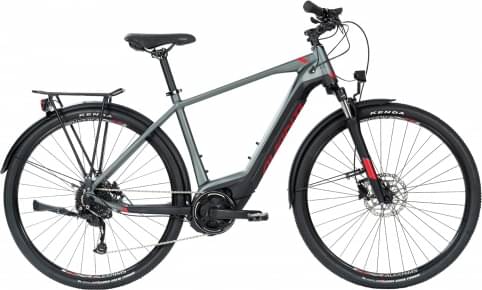

Explorer-E2 is part of the Avanti E Explorer E2 model. Avanti launched 6 e-bikes of this model so far. Take a sneak peek at all Avanti E Explorer E2 e-bikes models from 2021, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for General Urban e-bikes
According to our math, the average price for a trustworthy General Urban e-bike is 2098$. However, you could also get a good General Urban e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
The Suntour NEX is included from the factory. It has a travel distance of 60mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
The Explorer-E2 2021 e-bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The Explorer-E2 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
