Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Travel Front 60mm -
Fork Suntour NEX
-
Groupset Alivio -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Battery Bosch Powertube 500Wh Internal -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
AL-6061 Low-step Alloy with Ultra Light butted tubing, fully-internal battery and internal cables
Suspension Fork
Suntour NEX E-25 HLO, 60mm, 30mm stanchions, tapered steerer, hydraulic lockout
Drivetrain
Rear Derailleur
Shimano Alivio 9 speed
Shift Levers
Shimano Alivio 9 speed
Cassette
Shimano HG200 Cassette, 9-speed 11-34T
Crank
Prowheel Alloy, 38T
Chain
KMC X9
Pedals
VP retro with alloy body and rubber gripper
Wheels
Front Hub
Front: Shimano M3050 Centrelock 32H, Rear: Shimano M3050 Centrelock Cassette 32H
Rear Hub
Front: Shimano M3050 Centrelock 32H, Rear: Shimano M3050 Centrelock Cassette 32H
Rims
Alex TD26 Double-wall Alloy 32H
Spokes
Stainless Steel
Tires
Kenda Small Block 8 29 x 1.75 with K Shield, reflective logos & AV tube
Brakes
Brakes
Shimano MT200 Hydraulic Disc, 180 front/160 rear Centrelock Rotors
Brake Levers
Shimano MT200 hydraulic
Cockpit
Handlebar
Alloy riser bar, 15deg rear sweep
Grips
Ergonomic comfort
Headset
Integrated Threadless 1/8th-1.5" tapered
Seat
Saddle
Selle Royal Lookin comfort with RoyalGel padding
Seatpost
Alloy Micro Adjust 31.6mm
Motor & Battery
Motor
Bosch G3 Active Line Plus
Battery
Bosch Powertube 500Wh Internal
Charger
Bosch Std 4A Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM/MD | MD/LG |
|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.59 mm |
| Front Center | 650 | 655 mm |
| Rake | 51 mm | 50 mm |
| Trail | 73 mm | 74 mm |
| Stack | 604 mm | 623 mm |
| Reach | 392 mm | 391 mm |
| Top Tube Length | 578 mm | 588 mm |
| Seat Tube Angle | 73 ° | 73.5 ° |
| Seat Tube Length | 415 mm | 455 mm |
| Head Tube Angle | 70 ° | 70 ° |
| Head Tube Length | 130 mm | 150 mm |
| Chainstay Length | 471 mm | 471 mm |
| Wheelbase | 1114 mm | 1119 mm |
| Bottom Bracket Drop | 60 mm | 60 mm |
| Standover Height | 700 | 714 mm |
| Wheels | 700 | 700 |
Model Overview

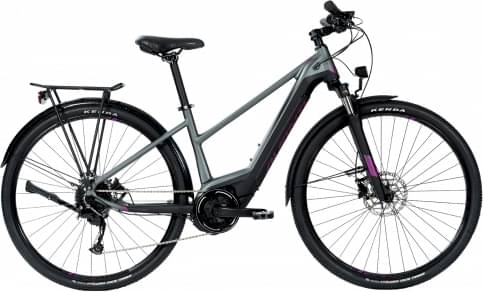

Explorer-E2 Low completes the Avanti E Explorer E2 model. Avanti released 6 e-bikes variations of this model so far. You can easily view all of the Avanti E Explorer E2 e-bikes models from 2023, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for General Urban e-bikes
According to our math, the average price for a trustworthy General Urban e-bike is 2098$. However, paying less money than this amount doesn’t mean that you couldn’t get a great General Urban e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
The fork installed on this bike is the Suntour NEX model. The travel on this model is 60mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The wheels on Explorer-E2 Low are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Avanti Explorer-E2 Low has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
