Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 150mm -
Fork RockShox 35 Silver
-
Groupset SX Eagle, SRAM -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
AL-6061 Ultralight tubing, 150mm travel, cartridge bearing pivots, 1.5" tapered headtube, PowerTube internal battery
Suspension Fork
Rockshox 35 Silver TK Solo Air, 160mm, air spring, 1.5" taper, rebound adjust, lock-out, Boost 110 15mm axle - S=27.5, M/L/XL=29er
Rear Shock
Rockshox Delux Select R, Debon Air, rebound adjust
Drivetrain
Rear Derailleur
SRAM SX Eagle
Shift Levers
SRAM SX Eagle, 12sp
Cassette
SRAM PG-1210 Cassette, 11-50T, 12 speed
Crank
FSA Gen 4 Bosch ISIS, 34T SRAM X-Sync chainwheel
Bottom Bracket
Bosch, press-fit
Chain
SRAM SX Eagle
Wheels
Front Hub
Front: Shimano MT400 110x15 32H, Rear: Shimano MT400 148x12 32H
Rear Hub
Front: Shimano MT400 110x15 32H, Rear: Shimano MT400 148x12 32H
Rims
Tubeless-Ready Double-wall Alloy 32H
Spokes
Stainless Steel
Tires
Kenda Regolith 27.5/29 x2.6", 120tpi, folding, SCT (Tubeless Ready)
Brakes
Brakes
Shimano M420 hydraulic, 203mm rotors
Brake Levers
Shimano M401 hydraulic
Cockpit
Handlebar
Syncros Hixon 2.0, 31.8mm, with 12mm rise, 9 deg sweep
Grips
Syncros Lock-on
Headset
Integrated Threadless 1 1/8th - 1.5" (with extra lower geometry adjust cup for 27.5+ )
Seat
Saddle
Syncros ER 2.5
Seatpost
Syncros Duncan Dropper 31.6mm with internal cable routing
Motor & Battery
Motor
Bosch G4 Performance Line CX
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.42 mm | 1.37 mm | 1.31 mm |
| Bottom Bracket Height | 330 mm | 349 mm | 349 mm | 349 mm |
| Front Center | 754 mm | 779 mm | 808 mm | 844 mm |
| Rake | 44 mm | 51 mm | 51 mm | 51 mm |
| Trail | 106 mm | 115 mm | 116 mm | 116 mm |
| Stack | 639 mm | 639 mm | 649 mm | 662 mm |
| Reach | 424 mm | 449 mm | 474 mm | 504 mm |
| Top Tube Length | 587 mm | 612 mm | 640 mm | 675 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 404 mm | 440 mm | 472 mm | 517 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 120 mm | 120 mm | 130 mm | 145 mm |
| Chainstay Length | 466 mm | 466 mm | 466 mm | 466 mm |
| Wheelbase | 1219 mm | 1244 mm | 1273 mm | 1309 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 770 mm | 794 mm | 814 mm | 845 mm |
| Wheels | 27" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

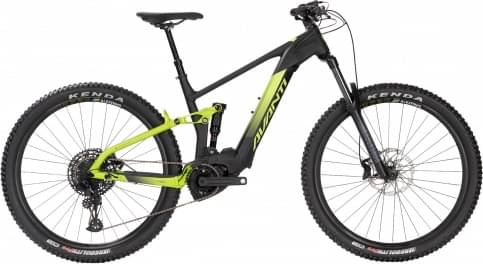

Hammer-E LT1 is an Avanti E Hammer E model. 6 e-bikes variations carry this model name so far. Take a sneak peek at all Avanti E Hammer E e-bikes models from 2021, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Enduro e-bikes average price
According to our math, the average price for a trustworthy Enduro e-bike is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Hammer-E LT1 components
Fork
The fork installed on this bike is the RockShox 35 Silver model. The travel on this model is 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
From the factory, it comes with the Rockshox Delux Select R rear shock model, which has a travel of 150mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
The wheels on Hammer-E LT1 are the 27.5″ aluminum type. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Hammer-E LT1 comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
The Avanti model is also equipped with a dropper post. Therefore, climbing or descending will be a breeze.
