Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 150mm -
Fork RockShox 35 Silver
-
Groupset SX Eagle, FSA -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch Powertube 500Wh Internal -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
AL-6061 Ultralight tubing, 150mm travel, cartridge bearing pivots, 1.5" tapered headtube, PowerTube internal battery
Suspension Fork
Rockshox 35 Silver TK Solo Air, 160mm, air spring, 1.5" taper, rebound adjust, lock-out, Boost 110 15mm axle - S=27.5, M/L/XL=29er
Rear Shock
Rockshox Delux Select R, Debon Air, rebound adjust
Drivetrain
Rear Derailleur
SRAM SX Eagle
Shift Levers
SRAM SX Eagle, 12sp
Cassette
SRAM PG-1210 Cassette, 11-50T, 12 speed
Crank
FSA Gen 4 Bosch ISIS, 34T SRAM X-Sync chainwheel
Bottom Bracket
Bosch, press-fit
Chain
SRAM SX Eagle
Wheels
Front Hub
Front: Shimano MT400 110x15 32H, Rear: Shimano MT400 148x12 32H
Rear Hub
Front: Shimano MT400 110x15 32H, Rear: Shimano MT400 148x12 32H
Rims
Tubeless-Ready Double-wall Alloy 32H
Spokes
Stainless Steel
Tires
Kenda Regolith 27.5/29 x2.6", 120tpi, folding, SCT (Tubeless Ready)
Brakes
Brakes
Shimano M420 hydraulic, 203mm rotors
Brake Levers
Shimano M401 hydraulic
Cockpit
Handlebar
Syncros Hixon 2.0, 31.8mm, with 12mm rise, 9 deg sweep
Grips
Syncros Lock-on
Headset
Integrated Threadless 1 1/8th - 1.5" (with extra lower geometry adjust cup for 27.5+ )
Seat
Saddle
Syncros ER 2.5
Seatpost
Syncros Duncan Dropper 31.6mm with internal cable routing
Motor & Battery
Motor
Bosch G4 Performance Line CX
Battery
Bosch Powertube 500Wh Internal
Charger
Bosch Std 4A Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.42 mm | 1.37 mm | 1.31 mm |
| Bottom Bracket Height | 330 mm | 349 mm | 349 mm | 349 mm |
| Front Center | 754 mm | 779 mm | 808 mm | 844 mm |
| Rake | 44 mm | 51 mm | 51 mm | 51 mm |
| Trail | 106 mm | 115 mm | 116 mm | 116 mm |
| Stack | 639 mm | 639 mm | 649 mm | 662 mm |
| Reach | 424 mm | 449 mm | 474 mm | 504 mm |
| Top Tube Length | 587 mm | 612 mm | 640 mm | 675 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 404 mm | 440 mm | 472 mm | 517 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 120 mm | 120 mm | 130 mm | 145 mm |
| Chainstay Length | 466 mm | 466 mm | 466 mm | 466 mm |
| Wheelbase | 1219 mm | 1244 mm | 1273 mm | 1309 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 770 mm | 794 mm | 814 mm | 845 mm |
| Wheels | 27" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

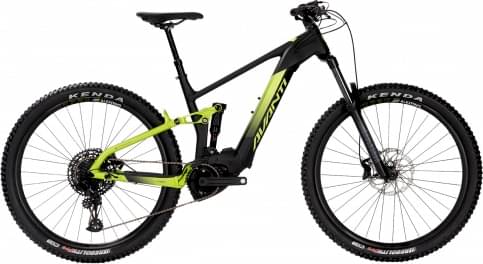

Hammer-E LT1 completes the Avanti E Hammer E model. There are 6 e-bikes that carry this model name. You can get a glimpse at all models from 2023, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Enduro e-bikes
According to our calculations, the average cost of an Enduro e-bike that is reliable is 4785$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Hammer-E LT1 components
Fork
This e-bike has the RockShox 35 Silver fork installed. The fork’s travel is 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The Hammer-E LT1 has a rear shock with a travel of 150mm. The model Rockshox Delux Select R is the one installed in this e-bike. Rear shocks improve riding comfort and give you greater control over all terrains. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The wheels on Hammer-E LT1 are the 27.5″ aluminum type. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Hammer-E LT1 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Avanti Hammer-E LT1 comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
