Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 145mm -
Fork RockShox Yari RC
-
Groupset NX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
AL-6061 Ultralight Butted tubing, 145mm travel, cartridge bearing pivots, 1.5" tapered headtube, PF92 BB, 12 x 148m, stash box with tools
Suspension Fork
Rockshox Yari RC Air, 160mm, air spring, 1.5" taper, rebound adjust, lock-out, Boost 110 15mm axle - S=27.5, M/L/XL=29er
Rear Shock
Rockshox Delux Select + Debon Air, rebound adjust
Drivetrain
Rear Derailleur
SRAM NX Eagle
Shift Levers
SRAM NX Eagle, 12 speed
Cassette
SRAM PG-1210 Cassette, 11-50T, 12 speed
Crank
SRAM NX Eagle,DUB, 32T
Bottom Bracket
SRAM DUB Pressfit
Chain
SRAM NX Eagle
Wheels
Front Hub
Front: Alloy, 110x15mm 32H, Rear: Alloy 148x12mm, 32H
Rear Hub
Front: Alloy, 110x15mm 32H, Rear: Alloy 148x12mm, 32H
Rims
Alex EXR 30 Double-wall Alloy with eyelet 32H, Tubeless Ready
Spokes
Stainless steel
Tires
Fr: Maxxis Minion DHF 3CMaxxTerra/EXO 2.5"; Rr Maxxis Aggressor, 3CMaxxTerra/EXO 2.3" (2.5" on S size). Foldable, Tubeless Ready
Brakes
Brakes
Shimano MT520 hydraulic, 203 front/180mm rear rotors
Brake Levers
Shimano MT501 hydraulic
Cockpit
Handlebar
Syncros Hixon 2.0 31.8mm, with 12mm rise, 9 deg sweep
Grips
Syncros Lock-on
Headset
Integrated Threadless 1-1/8th-1.5" (with extra lower geometry adjust lower cup for 27.5+" wheels)
Seat
Saddle
Syncros ER2.5
Seatpost
Syncros Duncan Dropper 31.6mm with internal cable routing
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.439 mm | 1.374 mm | 1.36 mm | 1.355 mm |
| Bottom Bracket Height | 325 mm | 344 mm | 344 mm | 344 mm |
| Front Center | 757 mm | 783 mm | 804 mm | 828 mm |
| Rake | 44 mm | 51 mm | 51 mm | 51 mm |
| Trail | 106 mm | 115 mm | 116 mm | 115 mm |
| Stack | 620 mm | 625 mm | 639 mm | 657 mm |
| Reach | 431 mm | 455 mm | 470 mm | 485 mm |
| Top Tube Length | 575 mm | 600 mm | 620 mm | 641 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 400 mm | 440 mm | 480 mm | 515 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 95 mm | 100 mm | 115 mm | 135 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1193 mm | 1219 mm | 1240 mm | 1264 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 740 mm | 768 mm | 783 mm | 808 mm |
| Wheels | 27" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

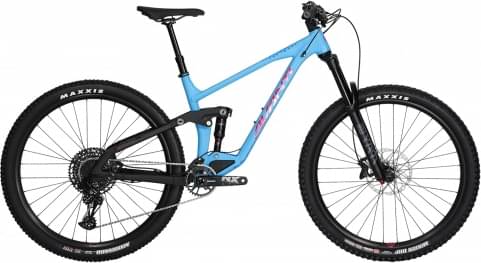

Hammer LT2 is an Avanti Hammer model. Avanti launched 17 bikes of this model so far. You can easily view all of the Avanti Hammer bikes models from 2022, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Fork
This bike has the RockShox Yari RC fork installed. The fork’s travel is 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
Avanti Hammer LT2 bike has the Rockshox Delux Select + Debon Air model installed, and has a travel of 145mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
When leaving the production line, the Hammer LT2 model has 27.5″ aluminum wheels. These wheels will provide you with more control over the bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Hammer LT2 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Avanti Hammer LT2 comes with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
