Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 145mm -
Fork RockShox Yari RC
-
Groupset NX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
AL-6061 Ultralight Butted tubing, 145mm travel, cartridge bearing pivots, 1.5" tapered headtube, PF92 BB, 12 x 148m, stash box with tools
Suspension Fork
Rockshox Yari RC Air, 160mm, air spring, 1.5" taper, rebound adjust, lock-out, Boost 110 15mm axle - S=27.5, M/L/XL=29er
Rear Shock
Rockshox Delux Select + Debon Air, rebound adjust
Drivetrain
Rear Derailleur
SRAM NX Eagle
Shift Levers
SRAM NX Eagle, 12 speed
Cassette
SRAM PG-1210 Cassette, 11-50T, 12 speed
Crank
SRAM NX Eagle,DUB, 32T
Bottom Bracket
SRAM DUB Pressfit
Chain
SRAM NX Eagle
Wheels
Front Hub
Front: Alloy, 110x15mm 32H, Rear: Alloy 148x12mm, 32H
Rear Hub
Front: Alloy, 110x15mm 32H, Rear: Alloy 148x12mm, 32H
Rims
Alex EXR 30 Double-wall Alloy with eyelet 32H, Tubeless Ready
Spokes
Stainless steel
Tires
Fr: Maxxis Minion DHF 3CMaxxTerra/EXO 2.5"; Rr Maxxis Aggressor, 3CMaxxTerra/EXO 2.3" (2.5" on S size). Foldable, Tubeless Ready
Brakes
Brakes
Shimano MT520 hydraulic, 203 front/180mm rear rotors
Brake Levers
Shimano MT501 hydraulic
Cockpit
Handlebar
Syncros Hixon 2.0 31.8mm, with 12mm rise, 9 deg sweep
Grips
Syncros Lock-on
Headset
Integrated Threadless 1-1/8th-1.5" (with extra lower geometry adjust lower cup for 27.5+" wheels)
Seat
Saddle
Syncros ER2.5
Seatpost
Syncros Duncan Dropper 31.6mm with internal cable routing
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.439 mm | 1.374 mm | 1.36 mm | 1.355 mm |
| Bottom Bracket Height | 325 mm | 344 mm | 344 mm | 344 mm |
| Front Center | 757 mm | 783 mm | 804 mm | 828 mm |
| Rake | 44 mm | 51 mm | 51 mm | 51 mm |
| Trail | 106 mm | 115 mm | 116 mm | 115 mm |
| Stack | 620 mm | 625 mm | 639 mm | 657 mm |
| Reach | 431 mm | 455 mm | 470 mm | 485 mm |
| Top Tube Length | 575 mm | 600 mm | 620 mm | 641 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 400 mm | 440 mm | 480 mm | 515 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 95 mm | 100 mm | 115 mm | 135 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1193 mm | 1219 mm | 1240 mm | 1264 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 740 mm | 768 mm | 783 mm | 808 mm |
| Wheels | 27" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

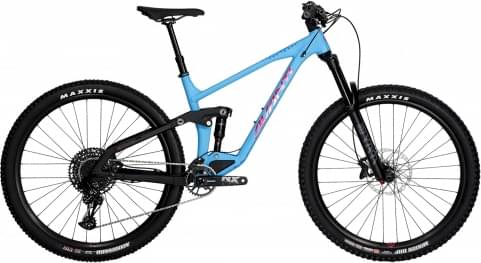

About this model
Hammer LT2 is part of the Avanti Hammer model. Avanti released 17 bikes variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Hammer LT2 components
Fork
The Hammer LT2 comes factory-installed with the RockShox Yari RC fork. This has a travel range of 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The Hammer LT2 has a rear shock with a travel of 145mm. The model Rockshox Delux Select + Debon Air is the one installed in this bike. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The Hammer LT2 2023 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Avanti Hammer LT2 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
