Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 27.5" -
Travel Front 130mm -
Travel Rear 130mm -
Fork RockShox Recon Silver RL
-
Groupset SX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
AL-6061 Ultralight Butted tubing, 130mm travel, cartridge bearing pivots, 1.5" tapered headtube, PF92 BB, 12 x 148m
Suspension Fork
Rockshox Recon Silver RL, 130mm, air spring, 1.5" taper, rebound adjust, lock-out, Boost 110 15mm axle
Rear Shock
Rockshox Delux Select R, Debon Air, rebound adjust
Drivetrain
Rear Derailleur
SRAM SX Eagle
Shift Levers
SRAM SX Eagle, 12sp
Cassette
SRAM PG-1210 Cassette, 11-50T, 12 speed
Crank
SRAM SX Eagle,DUB, 32T
Bottom Bracket
SRAM DUB Pressfit
Chain
SRAM SX Eagle
Wheels
Front Hub
Alloy, 110x15mm front, 148x12mm rear, 32H
Rear Hub
Alloy, 110x15mm front, 148x12mm rear, 32H
Rims
Alex EXR 27 Double-wall Alloy with eyelet 32H, Tubeless Ready
Spokes
Stainless Steel
Tires
Kenda Regolith, 29 x 2.4" 60tpi
Brakes
Brakes
Shimano MT200 hydraulic, 180mm rotors
Brake Levers
Shimano MT200 hydraulic
Cockpit
Handlebar
Syncros FL 2.0 31.8mm, with 12mm rise, 9 deg sweep
Grips
Syncros Pro Lock-on
Headset
Integrated Threadless 1 1/8th - 1.5" (with extra lower geometry adjust cup for 27.5+ )
Seat
Saddle
Syncros ER2.5
Seatpost
Syncros Duncan Dropper 31.6mm with internal cable routing
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.4 mm | 1.38 mm | 1.38 mm |
| Bottom Bracket Height | 317 mm | 336 mm | 336 mm | 336 mm |
| Front Center | 714 mm | 735 mm | 756 mm | 777 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 92 mm | 99 mm | 99 mm | 101 mm |
| Stack | 596 mm | 605 mm | 619 mm | 638 mm |
| Reach | 416 mm | 433 mm | 448 mm | 463 mm |
| Top Tube Length | 568 mm | 588 mm | 608 mm | 628 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 410 mm | 450 mm | 485 mm | 515 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 95 mm | 105 mm | 120 mm | 140 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1142 mm | 1163 mm | 1184 mm | 1205 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm |
| Standover Height | 743 mm | 758 mm | 773 mm | 783 mm |
| Wheels | 27" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

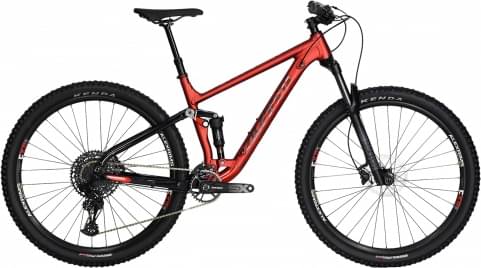

Hammer S is part of the Avanti Hammer model. Avanti launched 17 bikes of this model so far. You can easily view all of the Avanti Hammer bikes models from 2022, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Overview of components
Fork
Avanti Hammer S 2022 bike is equipped with the RockShox Recon Silver RL fork, and has 130mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
Avanti Hammer S bike has the Rockshox Delux Select R model installed, and has a travel of 130mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
When it comes to wheels, the Hammer S bike is equipped with the 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Avanti Hammer S is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Avanti Hammer S comes with a dropper post. Therefore, climbing or descending will be a breeze.
