Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 27.5" -
Travel Front 130mm -
Travel Rear 130mm -
Fork RockShox Recon Gold RL
-
Groupset NX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
AL-6061 Ultralight Butted tubing, 130mm travel, cartridge bearing pivots, 1.5" tapered headtube, PF92 BB, 12 x 148m
Suspension Fork
Rockshox Recon Gold RL Debon Air, 130mm, air spring, 1.5" taper, rebound adjust, lock-out, Boost 110 15mm axle
Rear Shock
Rockshox Delux Select+ RT Debon Air, rebound adjust
Drivetrain
Rear Derailleur
SRAM NX Eagle
Shift Levers
SRAM NX Eagle, 12sp
Cassette
SRAM PG-1230 Cassette, 11-50T, 12 speed
Crank
SRAM NX Eagle,DUB, 32T
Bottom Bracket
SRAM DUB Pressfit
Chain
SRAM NX Eagle
Wheels
Front Hub
Front: Alloy, 110x15mm 32H, Rear: Alloy 148x12mm, 32H
Rear Hub
Front: Alloy, 110x15mm 32H, Rear: Alloy 148x12mm, 32H
Rims
Alex EXR 27 Double-wall Alloy with eyelet 32H, Tubeless Ready
Spokes
Stainless Steel
Tires
Kenda Regolith, 29 x 2.4" Tubeless Ready, 120tpi
Brakes
Brakes
Shimano MT420 hydraulic, 180mm rotors
Brake Levers
Shimano MT401 hydraulic
Cockpit
Handlebar
Syncros Hixon 2.0 31.8mm, with 12mm rise, 9 deg sweep
Grips
Syncros Pro Lock-on
Headset
Integrated Threadless 1-1/8th-1.5" (with extra lower geometry adjust lower cup for 27.5+" wheels)
Seat
Saddle
Syncros ER2.5
Seatpost
Syncros Duncan Dropper 31.6mm with internal cable routing
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.4 mm | 1.38 mm | 1.38 mm |
| Bottom Bracket Height | 317 mm | 336 mm | 336 mm | 336 mm |
| Front Center | 714 mm | 735 mm | 756 mm | 777 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 92 mm | 99 mm | 99 mm | 101 mm |
| Stack | 596 mm | 605 mm | 619 mm | 638 mm |
| Reach | 416 mm | 433 mm | 448 mm | 463 mm |
| Top Tube Length | 568 mm | 588 mm | 608 mm | 628 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 410 mm | 450 mm | 485 mm | 515 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 95 mm | 105 mm | 120 mm | 140 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1142 mm | 1163 mm | 1184 mm | 1205 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm |
| Standover Height | 743 mm | 758 mm | 773 mm | 783 mm |
| Wheels | 27" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

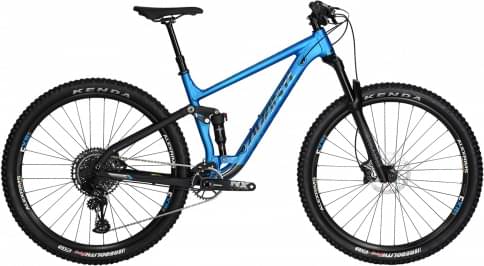

Hammer S1 is an Avanti Hammer model. Avanti released 17 bikes variations of this model so far. Take a sneak peek at all Avanti Hammer bikes models from 2022, by clicking here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Overview of components
Fork
The fork installed on this bike is the RockShox Recon Gold RL model. The travel on this model is 130mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
From the factory, it comes with the Rockshox Delux Select+ RT Debon Air rear shock model, which has a travel of 130mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
As for the wheels, Avanti Hammer S1 2022, has a 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Hammer S1 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Avanti Hammer S1 bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
The Avanti model is also equipped with a dropper post. Therefore, climbing or descending will be a breeze.
