Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Travel Front 60mm -
Fork Suntour NEX
-
Groupset Acera -
Suspension Hardtail -
Motor Bosch 250W 40Nm mid-drive -
Battery Bosch Powertube 400Wh Internal -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
AL-6061 Ultra Light butted, super-low-step frame
Suspension Fork
Suntour NEX E-25 HLO, 60mm, 30mm stanchions, tapered steerer, hydraulic lockout
Drivetrain
Rear Derailleur
Shimano Acera 8 speed
Shift Levers
Shimano Acera 8 speed
Cassette
Shimano HG31-8 Cassette, 8-speed 11-32T
Crank
Prowheel Alloy, 38T
Chain
KMC E-bike chain
Pedals
Nylon platform with ball bearings
Wheels
Front Hub
Shimano TX505 Alloy Centrelock Cassette 32H
Rear Hub
Shimano TX505 Alloy Centrelock Cassette 32H
Rims
Alex TD26 Alloy 32H
Spokes
Stainless Steel with Brass Nipples
Tires
Kenda Small Block 8 29 x 1.75 with AV tube and K-Shield
Brakes
Brakes
Shimano MT200 Hydraulic Disc, 180 front/160mm rear Centrelock Rotors
Brake Levers
Shimano MT200 Hydraulic
Cockpit
Handlebar
Zero Alloy Riser, 31.8mm, 15mm degree bend
Grips
Ergonomic comfort
Headset
Semi Integrated Aheadset
Seat
Saddle
Selle Royal Lookin comfort with RoyalGel padding
Seatpost
Syncros Dropper 31.8mm with internal cable routing
Motor & Battery
Motor
Bosch G3 Active Line
Battery
Bosch Powertube 400Wh Internal
Charger
Bosch Std 2A Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM/MD | MD/LG |
|---|---|---|
| Stack Reach Ratio | 1.63 mm | 1.61 mm |
| Front Center | 655 mm | 660 mm |
| Rake | 42 mm | 41 mm |
| Trail | 86 mm | 87 mm |
| Stack | 649 mm | 650 |
| Reach | 398 mm | 403 mm |
| Top Tube Length | 601 mm | 606 mm |
| Seat Tube Angle | 75 ° | 75 ° |
| Seat Tube Length | 440 mm | 480 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° |
| Head Tube Length | 170 mm | 170 mm |
| Chainstay Length | 511 mm | 511 mm |
| Wheelbase | 1157 mm | 1162 mm |
| Bottom Bracket Drop | 70 mm | 70 mm |
| Standover Height | 507 mm | 507 mm |
| Wheels | 700 | 700 |
About this model

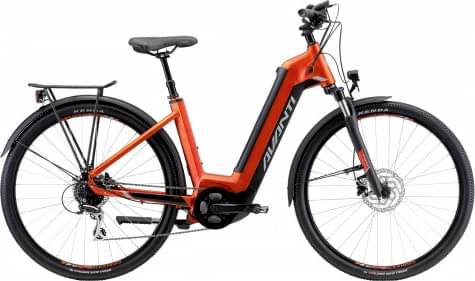

Metro-E City 1 completes the Avanti E Metro E model. Avanti launched 9 e-bikes of this model so far. You can easily view all of the Avanti E Metro E e-bikes models from 2023, here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
General Urban e-bikes average price
According to our calculations, the average cost of a General Urban e-bike that is reliable is 2098$. However, paying less money than this amount doesn’t mean that you couldn’t get a great General Urban e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Overview of components
Fork
Avanti Metro-E City 1 2023 e-bike is equipped with the Suntour NEX fork, and has 60mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
As for the wheels, Avanti Metro-E City 1 2023, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Avanti Metro-E City 1 has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Dropper post
A dropper post is included with the Metro-E City 1. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
