Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Travel Front 100mm -
Fork Suntour MOBIE
-
Groupset Deore, Shimano -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch Powertube 625Wh Internal -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
AL-6061 Ultra Light butted, super-low-step frame
Suspension Fork
Suntour Mobie 25, RLR DS, Tapered Steerer, Remote Lockout, 100 mm, 15x100 mm axle
Drivetrain
Rear Derailleur
Shimano Deore 11sp Shadow Plus
Shift Levers
Shimano Deore 11sp
Cassette
Shimano Deore Cassette, 11-speed 11-51T
Crank
Shimano MT200 Hydraulic Disc, 180 front/160 rear Centrelock Rotors
Chain
KMC E11 E-bike chain
Pedals
VP retro with alloy body and rubber gripper
Wheels
Front Hub
Front: Shimano MT400 100x15 32H, Rear: Shimano M3050 Centrelock Cassette 32H
Rear Hub
Front: Shimano MT400 100x15 32H, Rear: Shimano M3050 Centrelock Cassette 32H
Rims
Alex DP 27 Double-wall Alloy 32H
Spokes
Sapim Stainless Steel
Tires
Kenda Small Block 8 29 x 2.1 with K Shield, reflective logos & AV tube
Brakes
Brakes
Shimano MT201 Hydraulic Disc, 180 front/160mm rear Centrelock Rotors
Brake Levers
Shimano MT200 hydraulic
Cockpit
Handlebar
Alloy riser bar, 15 deg sweep
Grips
Dual density Ergo
Headset
Acros, A-Headset, integrated, 1.5", with integrated cable routing
Seat
Saddle
Selle Royal Lookin comfort with RoyalGel padding
Seatpost
Syncros Duncan Dropper 31.6mm with internal cable routing
Motor & Battery
Motor
Bosch G4 Performance Line CX
Battery
Bosch Powertube 625Wh Internal
Charger
Bosch Std 4A Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM/MD | MD/LG |
|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.65 mm |
| Front Center | 655 mm | 665 mm |
| Rake | 42 mm | 41 mm |
| Trail | 86 mm | 87 mm |
| Stack | 626 mm | 646 mm |
| Reach | 387 mm | 391 mm |
| Top Tube Length | 587 mm | 597 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° |
| Seat Tube Length | 460 mm | 500 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° |
| Head Tube Length | 160 mm | 180 mm |
| Chainstay Length | 491 mm | 491 mm |
| Wheelbase | 1137 mm | 1147 mm |
| Bottom Bracket Drop | 70 mm | 70 mm |
| Standover Height | 442 mm | 442 mm |
| Wheels | 700 | 700 |
About this model

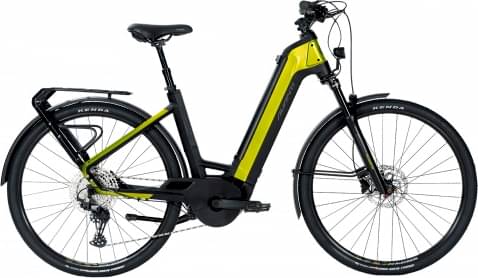

Metro-E City SUV is an Avanti E Metro E model. Avanti released 9 e-bikes variations of this model so far. Take a sneak peek at all Avanti E Metro E e-bikes models from 2023, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for General Urban e-bikes
Our math shows that the average cost of a dependable General Urban e-bike is 2098$. However, you could also get a good General Urban e-bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Metro-E City SUV components
Fork
Avanti Metro-E City SUV 2023 e-bike is equipped with the Suntour MOBIE fork, and has 100mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
As for the wheels, Avanti Metro-E City SUV 2023, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Dropper post
Avanti Metro-E City SUV includes a dropper post. Therefore, climbing or descending will be a breeze.
