Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Travel Front 100mm -
Fork Suntour
-
Groupset Altus, Tourney -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
158cm - 167cm
SM
165cm - 173cm
MD
169cm - 180cm
LG
177cm - 186cm
XL
183cm - 191cm
XXL
186cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ADT 6061 Formtech Alloy, Replaceable Hanger, internal brake cable
Suspension Fork
SR Suntour XCE, 100mm Travel
Drivetrain
Rear Derailleur
Shimano Altus
Front Derailleur
Shimano TY500
Shift Levers
Shimano Altus M315 RapidFire Plus 21-Speed
Cassette
Shimano HG200 Cassette, 12-28T 7-Speed
Crank
Shimano TY301 42/34/24T
Bottom Bracket
Cartridge
Chain
KMC Z-7
Pedals
Nylon platform with ball bearings
Wheels
Front Hub
Front: Shimano TX505 Alloy, Rear: TY505 Alloy Centrelock Cassette 32H
Rear Hub
Front: Shimano TX505 Alloy, Rear: TY505 Alloy Centrelock Cassette 32H
Rims
Weinmann XRD28 Double-wall Alloy 32H
Spokes
Stainless Steel
Tires
Kenda Aptor 27.5x2.20 or 29x2.20" MTB tyre with AV tube
Brakes
Brakes
Shimano MT200 Hydraulic Disc, 160mm Rotors
Brake Levers
Shimano MT200 Hydraulic
Cockpit
Handlebar
Alloy 31.8 with 9deg back sweep and 12mm rise, XS=640mm,S=660mm, M-XXL=680mm
Grips
Zero Strike Dual Compound
Headset
Semi-Integrated Threadless 1-1/8"
Seat
Saddle
Zero Zealth Sport
Seatpost
Zero Alloy 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Front Center | 628 mm | 644 mm | 659 mm | 664 mm | 680 mm | 673 mm |
| Rake | 42 mm | 42 mm | 42 mm | 46 mm | 46 mm | 46 mm |
| Top Tube Length | 549 mm | 564 mm | 584 mm | 599 mm | 614 mm | 619 mm |
| Seat Tube Angle | 73.3 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 360 mm | 400 mm | 445 mm | 480 mm | 525 mm | 565 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 70 ° | 71 ° | 71 ° | 71.5 ° |
| Head Tube Length | 110 mm | 115 mm | 125 mm | 125 mm | 135 mm | 145 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1049 mm | 1066 mm | 1081 mm | 1092 mm | 1108 mm | 1101 mm |
| Bottom Bracket Drop | 55 mm | 52 mm | 52 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 716 mm | 732 mm | 757 mm | 778 mm | 808 mm | 837 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 165 cm | 169 cm | 177 cm | 183 cm | 186 cm |
| Rider Max Height | 167 cm | 173 cm | 180 cm | 186 cm | 191 cm | 194 cm |
Model Overview

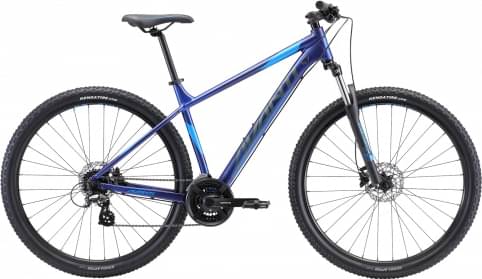

Montari 1 belongs to the Avanti Montari model. 21 bikes variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Fitness bikes
If you want an acceptable Fitness bike you should know that the average price is 656$. However, even though the average price of a Fitness bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Montari 1 components
Fork
The Suntour is included from the factory. It has a travel distance of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
When it comes to wheels, the Montari 1 bike is equipped with the aluminum model. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Montari 1 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Avanti Montari 1 bike has 6 sizes, in the range of 158 cm – 194 cm (5.18 ft – 6.36 ft). In conclusion, finding one for you shouldn’t be a problem.
