Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork Suntour XCT
-
Groupset microSHIFT Acolyte, Shimano -
Suspension Hardtail -
Motor Shimano 250W 40Nm mid-drive -
Battery Shimano E6010 418Wh -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ADT 6061 Formtech Alloy, Shimano STEPS mount
Suspension Fork
SR Suntour XCT, 100mm travel, Hydraulic Lock-out, 30mm stanchions
Drivetrain
Rear Derailleur
Microshift Acolyte 8sp with Clutch
Shift Levers
Microshift Acolyte 8sp Xpress trigger
Cassette
Microshift Acolyte cassette, 12-42T, 8sp
Crank
Shimano E5010 with CR050 Alloy, 44T chainwheel
Bottom Bracket
STEPS, press-fit
Chain
KMC Z8 8sp E-bike chain
Pedals
Nylon platform with ball bearings
Wheels
Front Hub
Front: Joytech alloy disc 32H, Rear: Joytech alloy cassette disc 32H
Rear Hub
Front: Joytech alloy disc 32H, Rear: Joytech alloy cassette disc 32H
Rims
Alex DP25 Double-wall Alloy 32H
Spokes
Stainless Steel with Brass Nipples
Tires
MTB 27.5 x 2.35" AV tubes
Brakes
Brakes
Tektro M275 Hydraulic
Brake Levers
Tektro M275 Hydraulic
Cockpit
Handlebar
Zero Alloy Riser, 31.8mm, 20mm rise
Grips
Zero Comfort
Headset
Semi Integrated Aheadset
Seat
Saddle
Zero Zealth
Seatpost
Zero Alloy 31.6mm
Motor & Battery
Motor
Shimano E5000
Battery
Shimano E6010 418Wh
Charger
Shimano E6002
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.59 mm | 1.52 mm | 1.49 mm | 1.47 mm |
| Bottom Bracket Height | 300 mm | 300 mm | 300 mm | 300 mm |
| Front Center | 639 mm | 655 mm | 673 mm | 689 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 88 mm | 88 mm | 88 mm | 88 mm |
| Stack | 619 mm | 618 mm | 628 mm | 637 mm |
| Reach | 390 mm | 406 mm | 422 mm | 434 mm |
| Top Tube Length | 577 mm | 593 mm | 612 mm | 627 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 390 mm | 420 mm | 470 mm | 520 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 110 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 482 mm | 482 mm | 482 mm | 482 mm |
| Wheelbase | 1115 mm | 1131 mm | 1150 mm | 1166 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 750 mm | 746 mm | 764 mm | 813 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

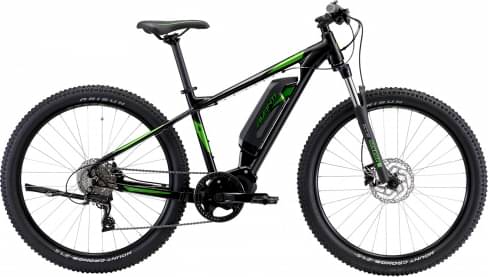

Montari-E Sport E Bike is an Avanti E Montari E model. There are 9 e-bikes that carry this model name. Check out the entire range from 2023 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry e-bikes
According to our math, the average price for a trustworthy Crosscountry e-bike is 2453$. However, you could also get a good Crosscountry e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Overview of components
Fork
The Montari-E Sport E Bike comes factory-installed with the Suntour XCT fork. This has a travel range of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
As for the wheels, Avanti Montari-E Sport E Bike 2023, has a 27.5″ aluminum model. These wheels will provide you with more control over the e-bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Avanti Montari-E Sport E Bike is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
