Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Travel Front 100mm -
Groupset microSHIFT XCD -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
158cm - 167cm
SM
165cm - 173cm
MD
169cm - 180cm
LG
177cm - 186cm
XL
183cm - 191cm
XXL
186cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ADT 6061 Formtech Alloy, Replaceable Hanger, internal brake cable
Suspension Fork
HL Vaxa 860 Air RL/O RA, 100mm travel, 32mm stanchions, Hydraulic Rebound Adjust
Drivetrain
Rear Derailleur
Microshift XCD 11sp with Clutch
Shift Levers
Microshift XCD 11sp Trail trigger w/Sealed Bearing
Cassette
Microshift XCD cassette, 11-46T, 11sp
Crank
ProWheel Charm, forged alloy crank, 36T narrow/wide Chaninwheel
Bottom Bracket
Integrated with alloy CNC outboard bearing cups
Chain
KMC X-11 11sp
Pedals
Nylon platform with ball bearings
Wheels
Front Hub
Joytech alloy cassette disc 32H
Rear Hub
Joytech alloy cassette disc 32H
Rims
Weinmann XRD28 Double-wall Alloy 32H
Spokes
Stainless Steel
Tires
Kenda Aptor 27.5x2.20 or 29x2.20" MTB tyre with AV tube
Brakes
Brakes
Tektro M275 Hydraulic
Brake Levers
Tektro M275 Hydraulic
Cockpit
Handlebar
Alloy 31.8 with 9deg backsweep and 12mm rise
Grips
Zero Strike Dual Compound
Headset
Semi-Integrated Aheadset 1-1/8"
Seat
Saddle
Zero Zealth Sport
Seatpost
Zero Alloy 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Front Center | 628 mm | 644 mm | 659 mm | 664 mm | 680 mm | 673 mm |
| Rake | 42 mm | 42 mm | 42 mm | 46 mm | 46 mm | 46 mm |
| Top Tube Length | 549 mm | 564 mm | 584 mm | 599 mm | 614 mm | 619 mm |
| Seat Tube Angle | 73.3 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 360 mm | 400 mm | 445 mm | 480 mm | 525 mm | 565 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 70 ° | 71 ° | 71 ° | 71.5 ° |
| Head Tube Length | 110 mm | 115 mm | 125 mm | 125 mm | 135 mm | 145 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1049 mm | 1066 mm | 1081 mm | 1092 mm | 1108 mm | 1101 mm |
| Bottom Bracket Drop | 55 mm | 52 mm | 52 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 716 mm | 732 mm | 757 mm | 778 mm | 808 mm | 837 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 165 cm | 169 cm | 177 cm | 183 cm | 186 cm |
| Rider Max Height | 167 cm | 173 cm | 180 cm | 186 cm | 191 cm | 194 cm |
About this model

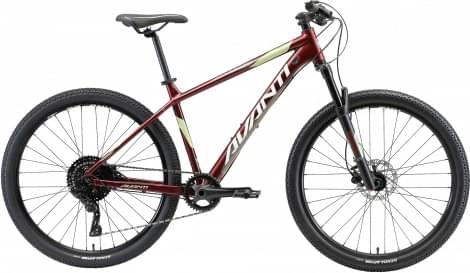

Montari MS 3 is an Avanti Montari model. 21 bikes variations carry this model name so far. You can easily view all of the Avanti Montari bikes models from 2021, here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Fitness bikes average price
Our math shows that the average cost of a dependable Fitness bike is 656$. However, even if your budget is less than the average, you might still be able to get a top-quality Fitness bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Wheels
As for the wheels, Avanti Montari MS 3 2021, has a aluminum model. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Montari MS 3 comes in 6 sizes, that range from 158 cm – 194 cm (5.18 ft – 6.36 ft). In conclusion, finding one for you shouldn’t be a problem.
