Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Altus, Acera -
Suspension Hardtail -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ADT 6061 Butted Formtech Ultralight Alloy Disc brake, internal cable routing, rack/fender compatible
Suspension Fork
SR NEX HLO DS with 63mm Travel and Hydraulic Lockout
Drivetrain
Rear Derailleur
Shimano Altus 9sp Shadow
Front Derailleur
Shimano Acera T3000-2
Shift Levers
Shimano Altus 18sp
Cassette
Shimano HG200 11-36T 9-Speed
Crank
Shimano MT210 2-pce 46/30T
Bottom Bracket
Shimano Hollowtech II
Chain
KMC X9
Pedals
Nylon platform with ball bearings
Wheels
Front Hub
Shimano RM35 Centrelock Cassette 32H
Rear Hub
Shimano RM35 Centrelock Cassette 32H
Rims
Alex TD26 Double-wall Alloy 32H
Spokes
Stainless Steel
Tires
Kenda Piedmont 700 x 40c with K-Shield and AV valve
Brakes
Brakes
Shimano MT200 Hydraulic Disc
Brake Levers
Shimano
Cockpit
Handlebar
Alloy 31.8 with 9deg back sweep and 12mm rise, S=640mm, M=660mm, L-XL=680mm
Grips
Zero Strike Dual Compound
Headset
Integrated Aheadset 1-1/8"
Seat
Saddle
Zero Zealth Sport
Seatpost
Alloy Micro Adjust 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.56 mm | 1.55 mm | 1.56 mm |
| Front Center | 632 mm | 647 mm | 662 mm | 672 mm |
| Rake | 40 mm | 40 mm | 40 mm | 40 mm |
| Trail | 81 mm | 80 mm | 82 mm | 83 mm |
| Stack | 603 mm | 618 mm | 632 mm | 646 mm |
| Reach | 386 mm | 395 mm | 407 mm | 413 mm |
| Top Tube Length | 568 mm | 588 mm | 603 mm | 613 mm |
| Seat Tube Angle | 73.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 410 mm | 450 mm | 495 mm | 545 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 115 mm | 130 mm | 145 mm | 160 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1057 mm | 1072 mm | 1087 mm | 1097 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 746 mm | 775 mm | 808 mm | 840 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

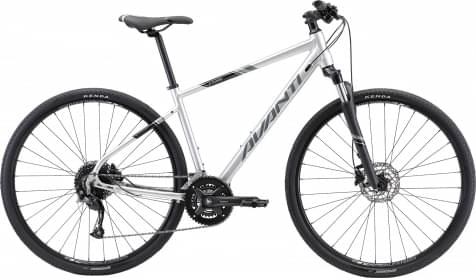

X-Plorer 2 is an Avanti X Plorer model. There are 12 bikes that carry this model name. You can easily view all of the Avanti X Plorer bikes models from 2021, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Hybrid bikes
Our math shows that the average cost of a dependable Hybrid bike is 562$. However, even though the average price of a Hybrid bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
X-Plorer 2 components
Fork
Avanti X-Plorer 2 2021 bike is equipped with the Suntour NEX fork, and has 63mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The wheels on X-Plorer 2 are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Avanti X-Plorer 2 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Avanti X-Plorer 2 bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
