Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
1K Torayca HMCF T1000 & T800
Suspension Fork
Basso Carbon
Drivetrain
Bottom Bracket
BB86x41.5 Pressfit Required
Cockpit
Stem
Basso Alloy
Headset
Integrated 1 1/2" - 1 1/8"
Seat
Seatpost
Basso Diamante Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 51cm | 53cm | 56cm |
|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.35 mm | 1.42 mm |
| Stack | 508 mm | 520 mm | 547 mm |
| Reach | 377 mm | 384 mm | 386 mm |
| Top Tube Length | 516 mm | 536 mm | 551 mm |
| Seat Tube Angle | 75 ° | 74 ° | 73.5 ° |
| Seat Tube Length | 510 mm | 530 mm | 560 mm |
| Head Tube Angle | 72 ° | 72.3 ° | 73.5 ° |
| Head Tube Length | 115 mm | 127 mm | 145 mm |
| Chainstay Length | 391 mm | 391 mm | 393 mm |
| Wheels | 700 | 700 | 700 |
Model Overview

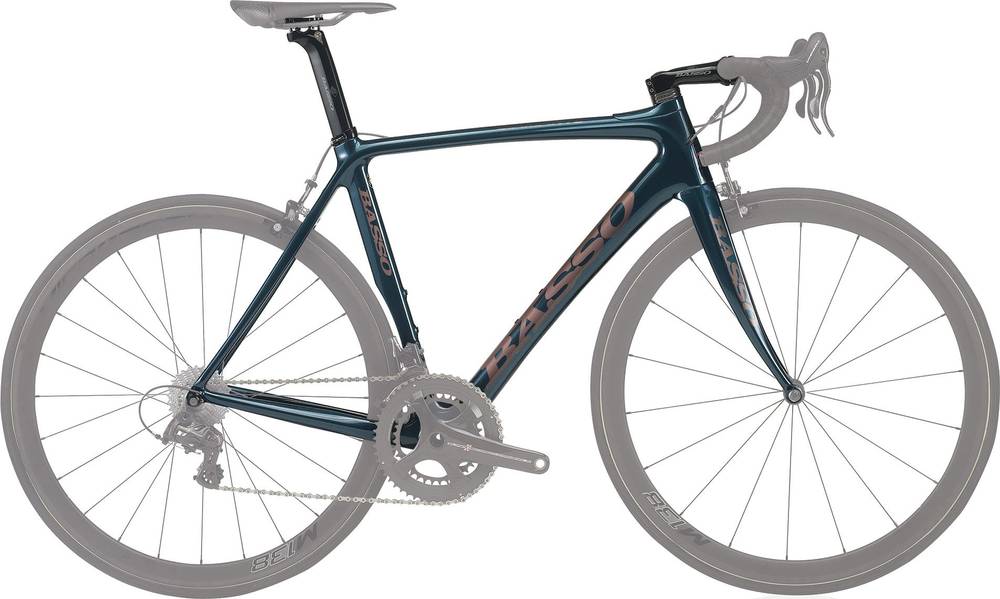

Diamante Frameset completes the Basso Diamante model. There are 38 frames that carry this model name. You can easily view all of the Basso Diamante frames models from 2020, here.
Model range prices
Basso Diamante “Egg Shell” LTD Frameset 2020 is the most economical model, with a starting price of 4995$. Basso Diamante SV Disc “MAAP” LTD. Frameset 2020 on the other hand costs 5595$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Race frames
Our math shows that the average cost of a dependable Race frame is 2445$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Race frame. In short, before purchasing your ideal frame do some research about its components, and also check for reviews online.
This frame was released in 2020 and its price was 4995$. In conclusion, this frame price is 104.29% higher than the price of the average Race frame.
Overview of components
Fork material
The fork on this frame is made out of carbon, so, it’s a great addition to the frame’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
