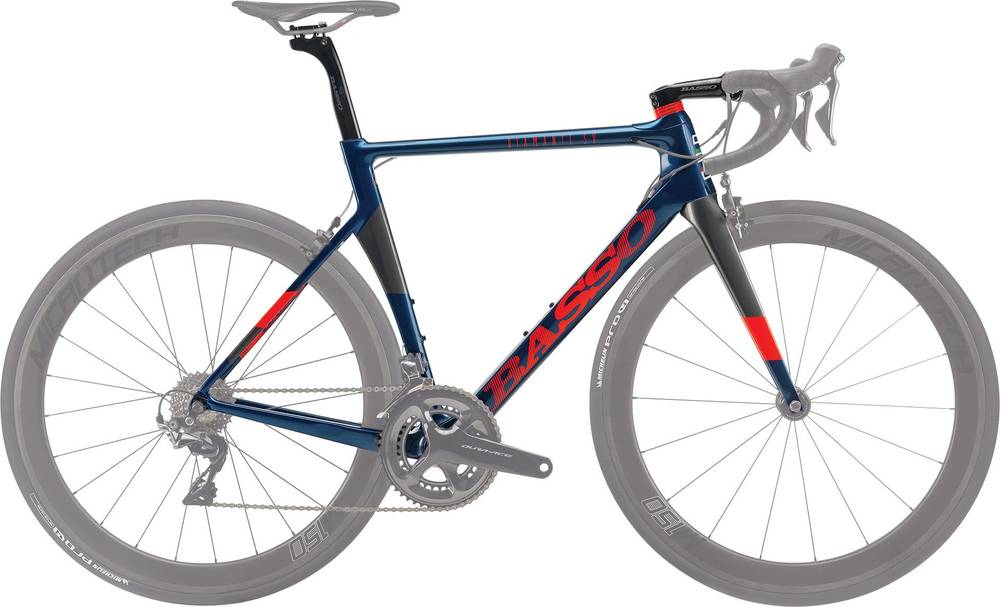

Basso Diamante SV Disc Frameset 2019
2019 Road
Estimate price |
5,595$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
3K Torayca HMCF T1000 & T800
Suspension Fork
Basso Carbon
Drivetrain
Bottom Bracket
BB86x41.5 Pressfit Required
Cockpit
Stem
Basso Alloy
Headset
Integrated 1 1/2" - 1 1/8"
Seat
Seatpost
Basso Diamante SV Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45cm | 48cm | 51cm | 53cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.29 mm | 1.29 mm | 1.34 mm | 1.35 mm | 1.41 mm | 1.46 mm | 1.55 mm |
| Stack | 492 mm | 492 mm | 516 mm | 528 mm | 555 mm | 578 mm | 612 mm |
| Reach | 380 mm | 381 mm | 385 mm | 392 mm | 394 mm | 395 mm | 396 mm |
| Top Tube Length | 504 mm | 514 mm | 524 mm | 544 mm | 559 mm | 574 mm | 589 mm |
| Seat Tube Angle | 76 ° | 75 ° | 75 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 450 mm | 480 mm | 510 mm | 530 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 71.8 ° | 71.8 ° | 72 ° | 72.3 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 90 mm | 90 mm | 115 mm | 127 mm | 145 mm | 169 mm | 203 mm |
| Chainstay Length | 399 mm | 399 mm | 399 mm | 399 mm | 401 mm | 405 mm | 405 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview
Diamante SV Disc Frameset is part of the Basso Diamante model. There are 38 frames that carry this model name. Take a sneak peek at all Basso Diamante frames models from 2019, by clicking here.
Model range prices
Basso Diamante Frameset 2019 is the most economical model, with a starting price of 4495$. Basso Diamante SV Disc Frameset 2019 on the other hand costs 5595$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Race frames
Our math shows that the average cost of a dependable Race frame is 2445$. However, you could also get a good Race frame even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Basso Diamante SV Disc Frameset price was 5595$. Doing a quick comparison, we notice that Diamante SV Disc Frameset price is 128.83% more expensive than the average cost of a Race frame.
Overview of components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
