Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
3K Torayca HMCF T1000 & T800
Suspension Fork
Basso Carbon
Drivetrain
Bottom Bracket
BB86x41.5 Pressfit Required
Cockpit
Stem
Basso Alloy
Headset
Integrated 1 1/2" - 1 1/8"
Seat
Seatpost
Basso Diamante SV Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 53cm | 56cm | 58cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.29 mm | 1.34 mm | 1.35 mm | 1.41 mm | 1.47 mm |
| Stack | 488 mm | 512 mm | 524 mm | 551 mm | 574 mm |
| Reach | 377 mm | 381 mm | 388 mm | 390 mm | 391 mm |
| Top Tube Length | 510 mm | 520 mm | 540 mm | 555 mm | 570 mm |
| Seat Tube Angle | 75 ° | 75 ° | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 480 mm | 510 mm | 530 mm | 560 mm | 580 mm |
| Head Tube Angle | 71.8 ° | 72 ° | 72.3 ° | 73.5 ° | 73.5 ° |
| Head Tube Length | 90 mm | 115 mm | 127 mm | 145 mm | 169 mm |
| Chainstay Length | 395 mm | 395 mm | 395 mm | 397 mm | 401 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |

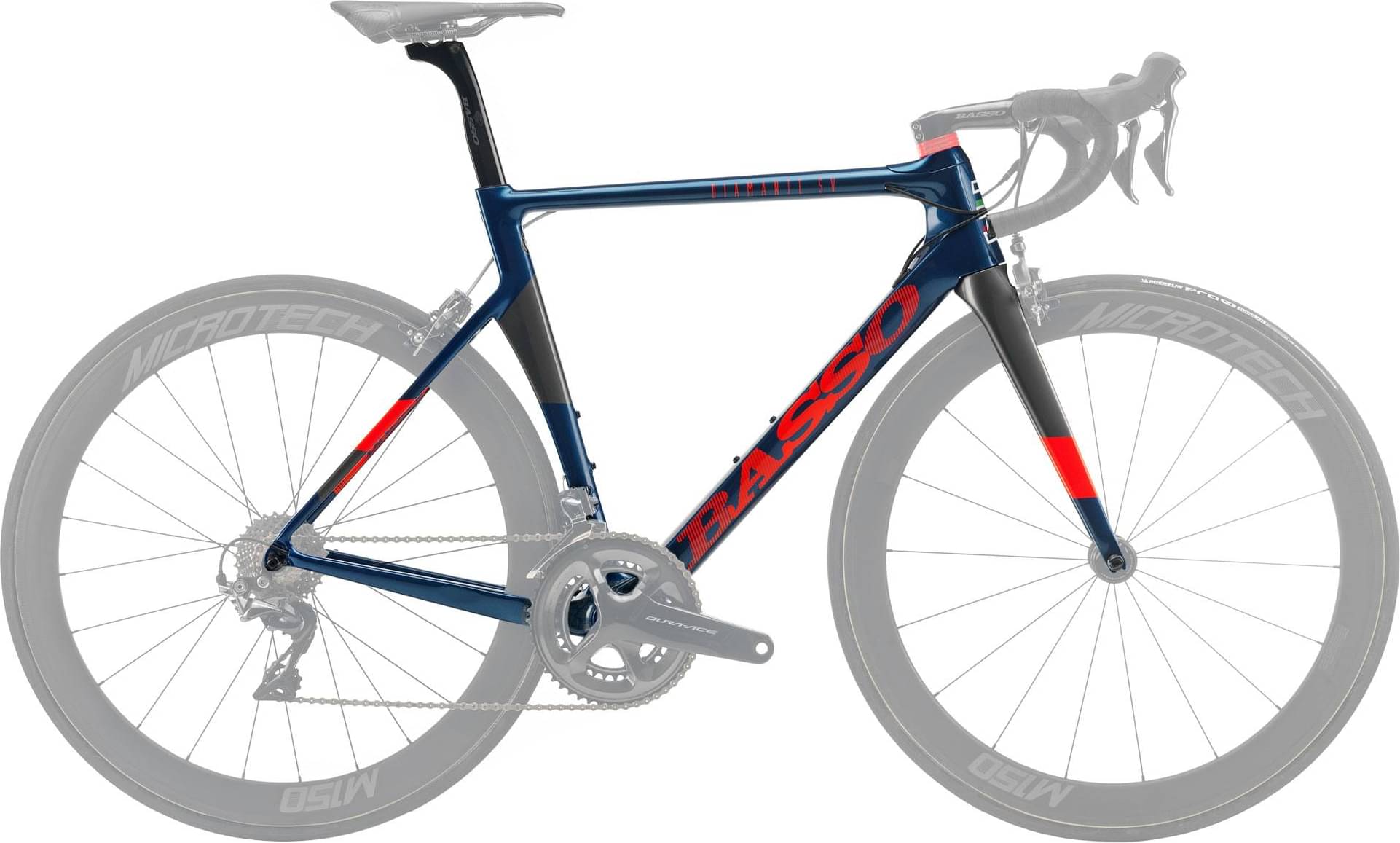

About this model
Diamante SV Frameset belongs to the Basso Diamante model. 38 frames variations carry this model name so far. Take a sneak peek at all Basso Diamante frames models from 2021, by clicking here.
Model range prices
The most economical model, the Basso Diamante Frameset 2021 has a starting price of 4495$. Basso Diamante SV Disc Frameset 2021 on the other hand is the most expensive at 5595$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Race frames
If you want an acceptable Race frame you should know that the average price is 2445$. However, even though the average price of a Race frame is lower, you might still be able to get a top-quality frame. In short, before purchasing your ideal frame do some research about its components, and also check for reviews online.
At the moment of the release date, Basso Diamante SV Frameset price was 5295$. Comparing this to the average Race frame price, we see that the price is 116.56% higher.
Diamante SV Frameset components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
