Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Monocoque Carbon, 12x142 Thru-Axle, Flat Mount Disc
Suspension Fork
Basso Carbon, 12x100 Thru-Axle, Flat Mount Disc
Drivetrain
Bottom Bracket
BB86x41.5 Pressfit Required
Cockpit
Stem
Basso Alloy
Headset
Integrated 1 1/2" - 1 1/8"
Seat
Seatpost
Basso Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 0.144 mm | 1.45 mm | 1.46 mm | 1.5 mm |
| Reach | 360.6 mm | 369.8 mm | 378.7 mm | 383.2 mm |
| Top Tube Length | 505 mm | 525 mm | 545 mm | 560 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 480 mm | 520 mm | 550 mm | 580 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 71 ° | 71 ° |
| Head Tube Length | 105 mm | 125 mm | 140 mm | 160 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

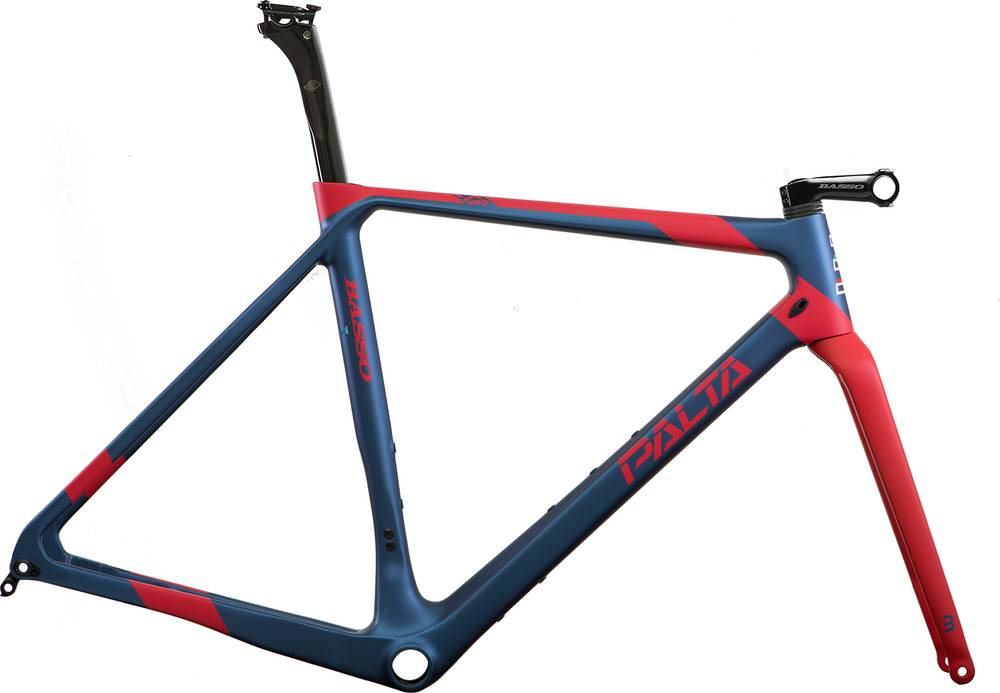

Palta Frameset completes the Basso Palta model. Basso launched 11 frames of this model so far. Take a sneak peek at all Basso Palta frames models from 2019, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Gravel frames
If you want an acceptable Gravel frame you should know that the average price is 1505$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel frame. To sum up, when you purchase your frame, make sure to check if it has reviews, and also do some components research.
This frame was released in 2019 and its price was 2850$. Comparing this to the average Gravel frame price, we see that the price is 89.37% higher.
Overview of components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Sizes
Basso Palta Frameset frame has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
