Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 27.5" -
Groupset GX Eagle -
Suspension Rigid -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FRANK Ti 3AL-2.5V FAT
Suspension Fork
BBCo. Blitzen Carbon
Drivetrain
Rear Derailleur
SRAM GX Eagle
Shift Levers
SRAM GX Eagle
Cassette
SRAM XG-1275
Crank
SRAM GX Eagle DUB
Bottom Bracket
PF SRAM DUB
Chain
SRAM GX Eagle
Wheels
Front Hub
Velocity 150/197 XD
Rear Hub
Velocity 150/197 XD
Rims
Velocity HED Alloy Comp 26 or 27.5
Tires
45NRTH Vanhelga 26 or 27.5 x 4.0 60 tpi
Brakes
Brakes
SRAM Level T
Disk Rotors
SRAM CenterLine 160mm
Cockpit
Stem
Whisky No. 7 Alloy
Handlebar
Ritchey Comp Flat 720 9d Sweep
Grips
Lizard Skins Charger Evo
Headset
Chris King
Seat
Saddle
WTB Volt Comp
Seatpost
Whisky No. 7 Alloy 0d 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.48 mm | 1.43 mm | 1.38 mm |
| Bottom Bracket Height | 295 mm | 295 mm | 295 mm | 295 mm |
| Front Center | 644 mm | 659 mm | 690 mm | 721 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 86 mm | 78 mm | 78 mm | 78 mm |
| Stack | 591 mm | 609.3 mm | 623.5 mm | 637.6 mm |
| Reach | 392.9 mm | 412.1 mm | 437.4 mm | 463 mm |
| Top Tube Length | 568 mm | 598.2 mm | 628 mm | 658 mm |
| Seat Tube Angle | 73.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 381 mm | 381 mm | 530 mm |
| Head Tube Angle | 69.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 120 mm | 135 mm | 150 mm | 170 mm |
| Chainstay Length | 461 mm | 461 mm | 461 mm | 461 mm |
| Wheelbase | 1097 mm | 1113 mm | 1144 mm | 1175 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

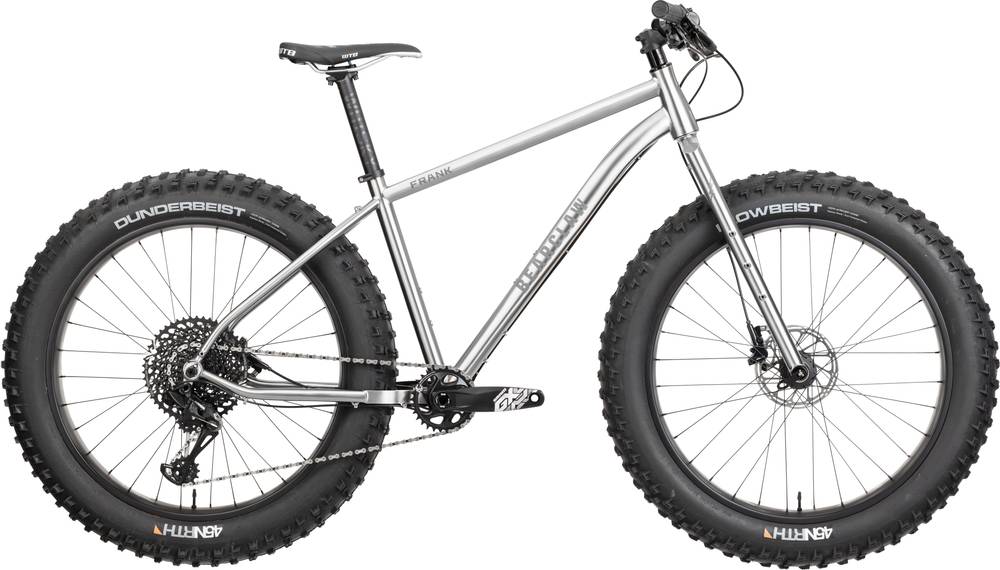

Frank GX Eagle completes the Bearclaw Frank model. There are 2 bikes that carry this model name. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
Bearclaw Frank GX Eagle 2019 is the most affordable bike of this model and has a price of 3990$. On the other hand, Bearclaw Frank X01 Eagle 2019, is the most expensive and costs 5490$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Fatbike bikes
According to our math, the average price for a trustworthy Fatbike bike is 1743$. However, even though the average price of a Fatbike bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Bearclaw released this model in 2019, its price was 3990$. Comparing this to the average Fatbike bike price, we see that the price is 128.92% more expensive.
Frank GX Eagle components
Fork material
Frank GX Eagle has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
The Frank GX Eagle 2019 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Bearclaw Frank GX Eagle bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
