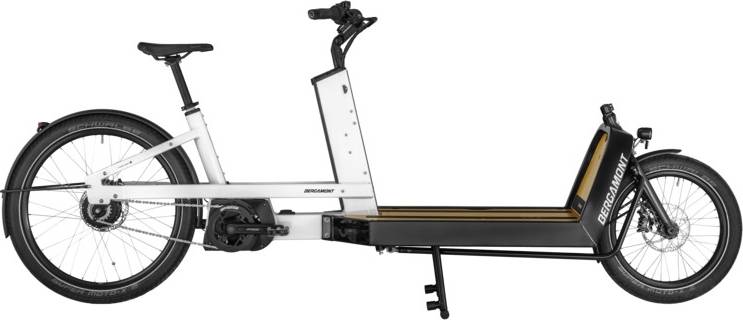

Bergamont E-Cargoville LJ 70 2020
2020 E-bike
Weight | 44.2 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 20" / 26" -
Groupset FSA -
Suspension Rigid -
Motor Bosch 250W mid-drive -
Battery Motor: Bosch Drive Unit Cargo Line, Gen. 4, 250 W, 36 V, max. 25 km/h Display: Bosch Kiox Battery: Bosch 36 V Li Ion, 625 Wh, PowerTube Assistance Modes: Eco (+60%), Tour (+140%), Sport(+240%), Turbo (+400%), Walk Assist (-5 km/h) -
Drivetrain Single Speed -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
20/26", lite AL-6061 tubing, 70x45 cm load platform, PowerTube battery
Suspension Fork
BGM Cargo, rigid fork, extra strong
Drivetrain
Shift Levers
Enviolo Controller, continuously adjustable
Cassette
Enviolo, 20t
Crank
FSA CK-320, 38t
Bottom Bracket
Bosch, Isis
Chain
KMC Z1eHX Wide EPT
Pedals
Trekking alloy
Wheels
Front Hub
BGM Pro, 6-bolt, disc, 15x100 mm axle
Rear Hub
Enviolo CA, 6-bolt, disc
Rims
Mach 1 Kargo, disc, eyelets
Spokes
Sapim Leader
Tires
Front: Schwalbe Super Moto-X, Greenguard, 61-406 Rear: Schwalbe Super Moto-X, Greenguard, 61-559 Tubes: Impac AV20 / Impac AV26
Brakes
Brakes
Magura CMe5, hydraulic disc brake, Storm rotor: 180/180 mm
Brake Levers
Magura CMe5, hydraulic disc brake
Cockpit
Stem
BGM Cargo, adjustable, with Kiox integration
Handlebar
BGM Pro, riserbar, rise: 5 mm
Grips
Ergon GP10
Headset
FSA NO.57, A-Headset, semi-integrated, tapered (fork) / FSA IS-3E, A-Headset, 1-1/8" (steering tube)
Seat
Saddle
Ergon ST10
Seatpost
BGM Pro
Motor & Battery
Motor
Motor: Bosch Drive Unit Cargo Line, Gen. 4, 250 W, 36 V, max. 25 km/h Display: Bosch Kiox Battery: Bosch 36 V Li Ion, 625 Wh, PowerTube Assistance Modes: Eco (+60%), Tour (+140%), Sport(+240%), Turbo (+400%), Walk Assist (-5 km/h)
Battery
Motor: Bosch Drive Unit Cargo Line, Gen. 4, 250 W, 36 V, max. 25 km/h Display: Bosch Kiox Battery: Bosch 36 V Li Ion, 625 Wh, PowerTube Assistance Modes: Eco (+60%), Tour (+140%), Sport(+240%), Turbo (+400%), Walk Assist (-5 km/h)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 1size |
|---|---|
| Stack Reach Ratio | 1.43 mm |
| Front Center | 1573 mm |
| Rake | 46 mm |
| Stack | 554 mm |
| Reach | 387 mm |
| Top Tube Length | 579 mm |
| Seat Tube Angle | 71 ° |
| Seat Tube Length | 465 mm |
| Head Tube Angle | 68 ° |
| Head Tube Length | 125 mm |
| Chainstay Length | 465 mm |
| Wheelbase | 2032 mm |
| Bottom Bracket Drop | 65 mm |
| Standover Height | 433 mm |
| Wheels | 20" |
| Rider Min Height | 120 cm |
Model Overview
E-Cargoville LJ 70 is a Bergamont E E Cargoville model. Bergamont released 22 e-bikes variations of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Utility e-bikes average price
If you want an acceptable Utility e-bike you should know that the average price is 3636$. However, this doesn’t mean that if you spend less money on an Utility e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Utility e-bikes
If we make a quick analysis of the average weight of an Utility e-bike, we get 34.2 kg (75.4 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 44.2 kg (97.44 lbs), Bergamont e-bike is much heavier than average. In other words, this model is 29.24% heavier than the average Utility e-bike.
Overview of components
Wheels size
The wheels on E-Cargoville LJ 70 are the 20″ aluminum type. This wheel size is used on bike models like BMX, children, or folding bikes. In conclusion, you can use them better on-road, and less on technical terrain.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The E-Cargoville LJ 70 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
