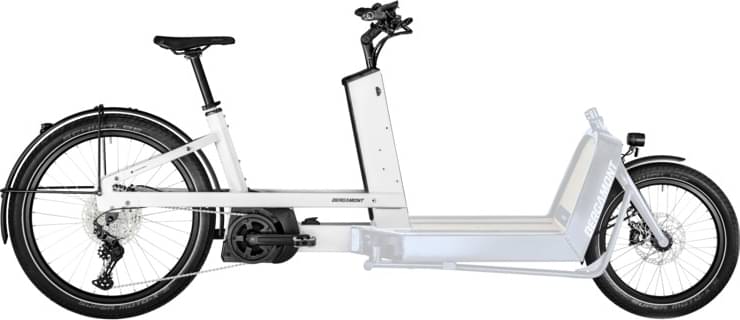

Bergamont E-Cargoville LJ Edition 2021
2021 E-bike
Weight | 42.2 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Groupset Deore, FSA -
Suspension Rigid -
Motor Bosch 250W 63Nm mid-drive -
Battery Motor: Bosch Drive Unit Performance Line Cruise, Gen. 3, 250 W, 36 V, max. 25 km/h Display: Bosch Intuvia Battery: Bosch 36 V Li Ion, 500 Wh, PowerTube Assistance Modes: Eco (+55%), Tour (+120%), eMTB (+120 - 300%), Turbo (+300%), Walk Assist (-5 km/h) -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
20/26", lite AL-6061 tubing, 70x45/50x45 cm (LxW) load platform, PowerTube battery
Suspension Fork
BGM Cargo, rigid fork, extra strong
Drivetrain
Rear Derailleur
Shimano Deore, RD-M5100, Shadow Plus
Shift Levers
Shimano Deore, SL-M5100, 1x11-speed, rapidfire plus-shifter
Cassette
Shimano Deore, CS-M5100, 11-51t
Crank
FSA CK-320, 38t
Bottom Bracket
Bosch, Isis
Chain
KMC e11 EPT
Pedals
Trekking alloy
Wheels
Front Hub
BGM Pro Cargo, 6-bolt, disc, 15x100 mm axle, quad bearing
Rear Hub
Shimano Deore XT, FH-M8000, centerlock, disc, quick release
Rims
Ryde Andra 40, disc
Spokes
Sapim Leader
Tires
Front: Schwalbe Super Moto-X, Greenguard, 62-406 Rear: Schwalbe Super Moto-X, Greenguard, 62-559 Tubes: Impac AV20 / Impac AV26
Brakes
Brakes
Magura CMe5, hydraulic disc brake, 4-piston, MDR-C rotor: 180/180 mm
Brake Levers
Magura CMe5, hydraulic disc brake
Cockpit
Stem
BGM Cargo, adjustable
Handlebar
BGM Pro, riserbar, backsweep: 15°, rise: 5 mm
Grips
Ergon GP10
Headset
Cane Creek Visco-Set, A-Headset, semi-integrated, tapered (fork) / FSA IS-3E, A-Headset, 1-1/8" (steering tube)
Seat
Saddle
Ergon ST10
Seatpost
BGM Pro
Motor & Battery
Motor
Motor: Bosch Drive Unit Performance Line Cruise, Gen. 3, 250 W, 36 V, max. 25 km/h Display: Bosch Intuvia Battery: Bosch 36 V Li Ion, 500 Wh, PowerTube Assistance Modes: Eco (+55%), Tour (+120%), eMTB (+120 - 300%), Turbo (+300%), Walk Assist (-5 km/h)
Battery
Motor: Bosch Drive Unit Performance Line Cruise, Gen. 3, 250 W, 36 V, max. 25 km/h Display: Bosch Intuvia Battery: Bosch 36 V Li Ion, 500 Wh, PowerTube Assistance Modes: Eco (+55%), Tour (+120%), eMTB (+120 - 300%), Turbo (+300%), Walk Assist (-5 km/h)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 70cm |
|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.43 mm |
| Front Center | 1373 mm | 1573 mm |
| Rake | 46 mm | 46 mm |
| Trail | -654 mm | -854 mm |
| Stack | 555 mm | 555 mm |
| Reach | 387 mm | 387 mm |
| Top Tube Length | 579 mm | 579 mm |
| Seat Tube Angle | 71 ° | 71 ° |
| Seat Tube Length | 465 mm | 465 mm |
| Head Tube Angle | 68 ° | 68 ° |
| Head Tube Length | 125 mm | 125 mm |
| Chainstay Length | 465 mm | 465 mm |
| Wheelbase | 1832 mm | 2032 mm |
| Bottom Bracket Drop | 65 mm | 65 mm |
| Standover Height | 433 mm | 433 mm |
| Wheels | 26" | 26" |
About this model
E-Cargoville LJ Edition is a Bergamont E E Cargoville model. Bergamont launched 22 e-bikes of this model so far. Take a sneak peek at all Bergamont E E Cargoville e-bikes models from 2021, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Utility e-bikes average price
Our math shows that the average cost of a dependable Utility e-bike is 3636$. However, you could also get a good Utility e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Average weight for Utility e-bikes
Utility e-bikes weigh an average of 34.2 kg (75.4 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 42.2 kg (93.03 lbs), Bergamont e-bike is much heavier than average. In short, the average Utility e-bike weight is 23.39% lower than this one.
E-Cargoville LJ Edition components
Wheels size
As for the wheels, Bergamont E-Cargoville LJ Edition 2021, has a 26″ aluminum model. Being a little smaller, these wheels will fit both small and tall riders. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Bergamont E-Cargoville LJ Edition is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
