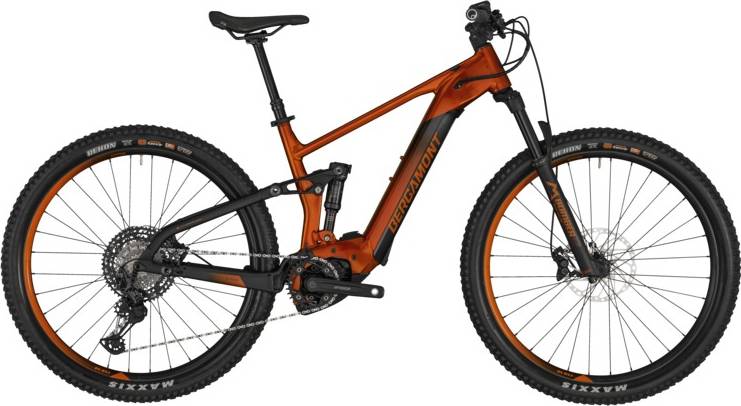

Bergamont E-Contrail Expert 2020
2020 E-bike
Weight | 23.6 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 130mm -
Travel Rear 130mm -
Fork Marzocchi Bomber Z2
-
Groupset SLX, Shimano -
Suspension Full -
Motor Bosch 250W 75Nm mid-drive -
Battery Motor: Bosch Drive Unit Performance Line CX Cruise, Gen. 4, 250 W, 36 V, max. 25 km/h Display: Bosch Purion Battery: Bosch 36 V Li Ion, 625 Wh, PowerTube Assistance Modes: Eco (+60%), Tour (+140%), eMTB (+140 - 340%), Turbo ( +340%), Walk Assist (-5 km/h) -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29", ultra lite AL-6061 tubing, PowerTube battery, 130 mm rear travel
Suspension Fork
Marzocchi Z2, 130 mm, 15x110 mm axle
Rear Shock
RockShox Deluxe Select, rebound
Drivetrain
Rear Derailleur
Shimano SLX, RD-M7100, Shadow Plus
Shift Levers
Shimano SLX, SL-M7100, 1x12-speed, rapidfire plus-shifter
Cassette
Shimano SLX, CS-M7100, 10-51t
Crank
FSA CK-320, Shimano CRE80-12, 34t, 165 mm
Bottom Bracket
Bosch, Isis
Chain
Shimano SLX, CN-M7100
Wheels
Front Hub
Shimano HB-MT400, Centerlock, disc, 15x110 mm axle
Rear Hub
Shimano FH-MT510, centerlock, disc, 12x148 mm axle
Rims
Alex EXR 30, disc, eyelets, width: 30 mm
Spokes
Sapim Leader
Tires
Maxxis Rekon, 3C-EXO+, folding, Tubeless ready, 120 TPI, 29x2.60" Tubes: Schwalbe SV19FB Light
Brakes
Brakes
Shimano BR-MT420, hydraulic disc brake, 4-piston, SM-RT30 rotor: 203/203 mm
Brake Levers
Shimano BL-MT401, hydraulic disc brake
Cockpit
Stem
Syncros FL2.0, +/-6°
Handlebar
Syncros Hixon 2.0, mini riserbar, rise: 12 mm, width: 760 mm
Grips
Ergon GA20
Headset
BGM F13-X, A-Headset, semi-integrated, tapered
Seat
Saddle
Ergon SM10 E-Mountain
Seatpost
Syncros Duncan 2.5, dropper post, 150 mm (frame size "S": 125 mm), remote
Motor & Battery
Motor
Motor: Bosch Drive Unit Performance Line CX Cruise, Gen. 4, 250 W, 36 V, max. 25 km/h Display: Bosch Purion Battery: Bosch 36 V Li Ion, 625 Wh, PowerTube Assistance Modes: Eco (+60%), Tour (+140%), eMTB (+140 - 340%), Turbo ( +340%), Walk Assist (-5 km/h)
Battery
Motor: Bosch Drive Unit Performance Line CX Cruise, Gen. 4, 250 W, 36 V, max. 25 km/h Display: Bosch Purion Battery: Bosch 36 V Li Ion, 625 Wh, PowerTube Assistance Modes: Eco (+60%), Tour (+140%), eMTB (+140 - 340%), Turbo ( +340%), Walk Assist (-5 km/h)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.496 mm | 1.418 mm | 1.385 mm | 1.356 mm |
| Bottom Bracket Height | 339 mm | 339 mm | 339 mm | 339 mm |
| Front Center | 732 mm | 752 mm | 778 mm | 804 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 111 mm | 107 mm | 107 mm | 107 mm |
| Stack | 621 mm | 624 mm | 637 mm | 651 mm |
| Reach | 415 mm | 440 mm | 460 mm | 480 mm |
| Top Tube Length | 575 mm | 601 mm | 625 mm | 650 |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 400 mm | 445 mm | 480 mm | 515 mm |
| Head Tube Angle | 66 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 120 mm | 120 mm | 135 mm | 150 mm |
| Chainstay Length | 459 mm | 459 mm | 459 mm | 459 mm |
| Wheelbase | 1189 mm | 1209 mm | 1235 mm | 1261 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 766 mm | 770 mm | 782 mm | 798 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
E-Contrail Expert completes the Bergamont E E Contrail model. Bergamont launched 8 e-bikes of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail e-bikes
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Trail e-bikes average weight
The average weight for Trail e-bikes is 23.7 kg (52.25 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Bergamont E-Contrail Expert it’s weighing 23.6 kg (52.03 lbs). At this weight, is slightly lighter than average. In other words, this model is 0.42% lighter than the average Trail e-bike.
E-Contrail Expert components
Fork
The fork installed on this bike is the Marzocchi Bomber Z2 model. The travel on this model is 130mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The E-Contrail Expert has a rear shock with a travel of 130mm. The model RockShox Deluxe Select is the one installed in this e-bike. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
When it comes to wheels, the E-Contrail Expert e-bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Bergamont E-Contrail Expert has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Every bike should have a dropper post, and this one does. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
