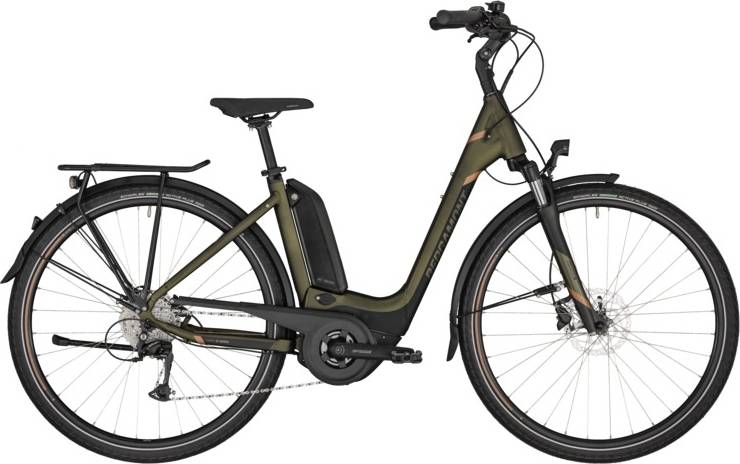

Bergamont E-Horizon 6 500 Wave 2020
2020 E-bike
Weight | 24.5 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Sora, FSA -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Battery Motor: Bosch Drive Unit Active Line Plus, Gen. 3, 250 W, 36 V, max. 25 km/h Display: Bosch Purion Battery: Bosch 36 V Li Ion, 500 Wh, PowerPack Assistance Modes: Eco (+40%), Tour (+100%), Sport(+180%), Turbo (+270%), Walk Assist (-5 km/h) -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28" (26"), lite AL-6061 tubing, PowerPack battery
Suspension Fork
Suntour NEX E25, 63 mm
Drivetrain
Rear Derailleur
Shimano RD-T3000
Shift Levers
Shimano SL-M3000, 1x9-speed, rapidfire plus-shifter
Cassette
Shimano CS-HG200-9, 11-36t
Crank
FSA CK-200, 38t
Bottom Bracket
Bosch, Isis
Chain
KMC e9S
Pedals
Trekking alloy
Wheels
Front Hub
Shimano, centerlock, disc, quick release
Rear Hub
Shimano, centerlock, disc, quick release
Rims
Mach 1 ER20, disc, eyelets
Spokes
stainless, silver
Tires
Schwalbe Energizer Active Plus, reflective stripe, 47-622 (47-559) Tubes: Schwalbe AV17A Light / AV13A Light (26")
Brakes
Brakes
Shimano BR-MT200, hydraulic disc brake, SM-RT10 rotor: 180/160 mm
Brake Levers
Shimano BL-MT200, hydraulic disc brake
Cockpit
Stem
BGM Pro, adjustable, 17°-25°
Handlebar
BGM Pro, riserbar, backsweep: 40°, rise: 40 mm
Grips
BGM Comfort, Ergo, double density, clamp version
Headset
FSA NO.57SC-1, A-Headset, semi-integrated, tapered
Seat
Saddle
Selle Royal Essenza, lady
Seatpost
BGM Pro
Motor & Battery
Motor
Motor: Bosch Drive Unit Active Line Plus, Gen. 3, 250 W, 36 V, max. 25 km/h Display: Bosch Purion Battery: Bosch 36 V Li Ion, 500 Wh, PowerPack Assistance Modes: Eco (+40%), Tour (+100%), Sport(+180%), Turbo (+270%), Walk Assist (-5 km/h)
Battery
Motor: Bosch Drive Unit Active Line Plus, Gen. 3, 250 W, 36 V, max. 25 km/h Display: Bosch Purion Battery: Bosch 36 V Li Ion, 500 Wh, PowerPack Assistance Modes: Eco (+40%), Tour (+100%), Sport(+180%), Turbo (+270%), Walk Assist (-5 km/h)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 48cm | 52cm | 56cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.64 mm | 1.64 mm | 1.64 mm |
| Front Center | 656 mm | 669 mm | 674 mm | 680 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 65 mm | 65 mm | 65 mm | 64 mm |
| Stack | 596 mm | 638 mm | 643 mm | 648 mm |
| Reach | 387 mm | 388 mm | 392 mm | 395 mm |
| Top Tube Length | 577 mm | 592 mm | 597 mm | 602 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 460 mm | 480 mm | 520 mm | 560 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 170 mm | 165 mm | 170 mm | 175 mm |
| Chainstay Length | 442 mm | 477 mm | 477 mm | 477 mm |
| Wheelbase | 1092 mm | 1137 mm | 1142 mm | 1148 mm |
| Bottom Bracket Drop | 55 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 375 mm | 390 mm | 390 mm | 390 mm |
| Wheels | 26" | 26" | 26" | 26" |
Model Overview
E-Horizon 6 500 Wave belongs to the Bergamont E E Horizon model. There are 133 e-bikes that carry this model name. Take a sneak peek at all Bergamont E E Horizon e-bikes models from 2020, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Commuter e-bikes
Our math shows that the average cost of a dependable Commuter e-bike is 2569$. However, you could also get a good Commuter e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Commuter e-bikes average weight
The average weight for Commuter e-bikes is 25.2 kg (55.56 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
E-Horizon 6 500 Wave weighs 24.5 kg (54.01 lbs) and is slightly lighter than the average. In conclusion, the average Commuter e-bike weighs 2.86% more than E-Horizon 6 500 Wave.
E-Horizon 6 500 Wave components
Fork
The E-Horizon 6 500 Wave comes factory-installed with the SunTour NEX fork. This has a travel range of 63mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
The wheels on E-Horizon 6 500 Wave are the 26″ aluminum type. Being a little smaller, these wheels will fit both small and tall riders. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The E-Horizon 6 500 Wave has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
