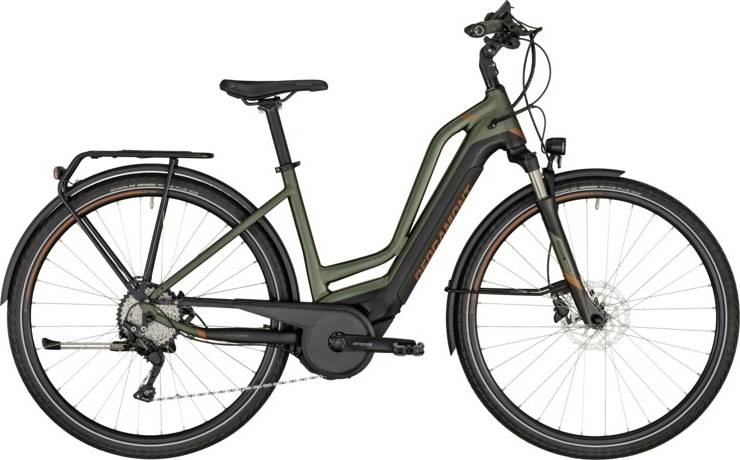

Bergamont E-Horizon Edition Amsterdam 2020
2020 E-bike
Weight | 24.9 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NCX
-
Groupset Deore, FSA -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery Motor: Bosch Drive Unit Performance Line Cruise, Gen. 3, 250 W, 36 V, max. 25 km/h Display: Bosch Intuvia Battery: Bosch 36 V Li Ion, 500 Wh, PowerTube Assistance Modes: Eco (+55%), Tour (+120%), eMTB (+120 - 300%), Turbo (+300%), Walk Assist (-5 km/h) -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28", ultra lite AL-6061 tubing, PowerTube battery
Suspension Fork
Suntour NCX D Air, 63 mm, lockout
Drivetrain
Rear Derailleur
Shimano Deore, RD-M6000, Shadow Plus
Shift Levers
Shimano Deore, SL-M6000, 1x10-speed, rapidfire plus-shifter
Cassette
Shimano CS-HG500, 11-42T
Crank
FSA CK-200, 38t
Bottom Bracket
Bosch, Isis
Chain
KMC e10S
Pedals
Trekking alloy
Wheels
Front Hub
Shimano HB-MT200, centerlock, disc, quick release
Rear Hub
Shimano FH-MT200, centerlock, disc, quick release
Rims
Mach 1 ER20, disc, eyelets
Spokes
Sapim Leader
Tires
Schwalbe Energizer Active Plus, reflective stripe, 47-622 Tubes: Schwalbe AV17A Light
Brakes
Brakes
Shimano BR-MT200, hydraulic disc brake, SM-RT10 rotor: 180/160 mm
Brake Levers
Shimano BL-MT200, hydraulic disc brake
Cockpit
Stem
BGM Pro, adjustable, 17°-25°
Handlebar
BGM Pro, riserbar, backsweep: 15°, rise: 5 mm
Grips
Ergon GP10
Headset
FSA NO.57SC-1, A-Headset, semi-integrated, tapered
Seat
Saddle
Ergon ST10
Seatpost
BGM Pro
Motor & Battery
Motor
Motor: Bosch Drive Unit Performance Line Cruise, Gen. 3, 250 W, 36 V, max. 25 km/h Display: Bosch Intuvia Battery: Bosch 36 V Li Ion, 500 Wh, PowerTube Assistance Modes: Eco (+55%), Tour (+120%), eMTB (+120 - 300%), Turbo (+300%), Walk Assist (-5 km/h)
Battery
Motor: Bosch Drive Unit Performance Line Cruise, Gen. 3, 250 W, 36 V, max. 25 km/h Display: Bosch Intuvia Battery: Bosch 36 V Li Ion, 500 Wh, PowerTube Assistance Modes: Eco (+55%), Tour (+120%), eMTB (+120 - 300%), Turbo (+300%), Walk Assist (-5 km/h)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 48cm | 52cm | 56cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.59 mm | 1.65 mm | 1.68 mm |
| Front Center | 650 | 655 mm | 660 mm | 670 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 22 mm | 76 mm | 74 mm | 74 mm |
| Stack | 604 mm | 623 mm | 641 mm | 660 mm |
| Reach | 393 mm | 393 mm | 389 mm | 393 mm |
| Top Tube Length | 578 mm | 588 mm | 598 mm | 608 mm |
| Seat Tube Angle | 73 ° | 72.5 ° | 72 ° | 72 ° |
| Seat Tube Length | 415 mm | 455 mm | 495 mm | 535 mm |
| Head Tube Angle | 73 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 471 mm | 471 mm | 471 mm | 471 mm |
| Wheelbase | 1114 mm | 1119 mm | 1124 mm | 1134 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 525 mm | 528 mm | 532 mm | 540 mm |
| Wheels | 700 | 700 | 700 | 700 |
Model Overview
E-Horizon Edition Amsterdam is a Bergamont E E Horizon model. Bergamont launched 133 e-bikes of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Commuter e-bikes average price
If you want to purchase a solid Commuter e-bike, it is important to know that the average cost is 2569$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Commuter e-bikes average weight
Commuter e-bikes weigh an average of 25.2 kg (55.56 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
E-Horizon Edition Amsterdam weighs 24.9 kg (54.9 lbs) and is slightly lighter than the average. In short, the average Commuter e-bike weight is 1.2% higher than this one.
Overview of components
Fork
The SunTour NCX is included from the factory. It has a travel distance of 63mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
As for the wheels, Bergamont E-Horizon Edition Amsterdam 2020, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Bergamont E-Horizon Edition Amsterdam is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
