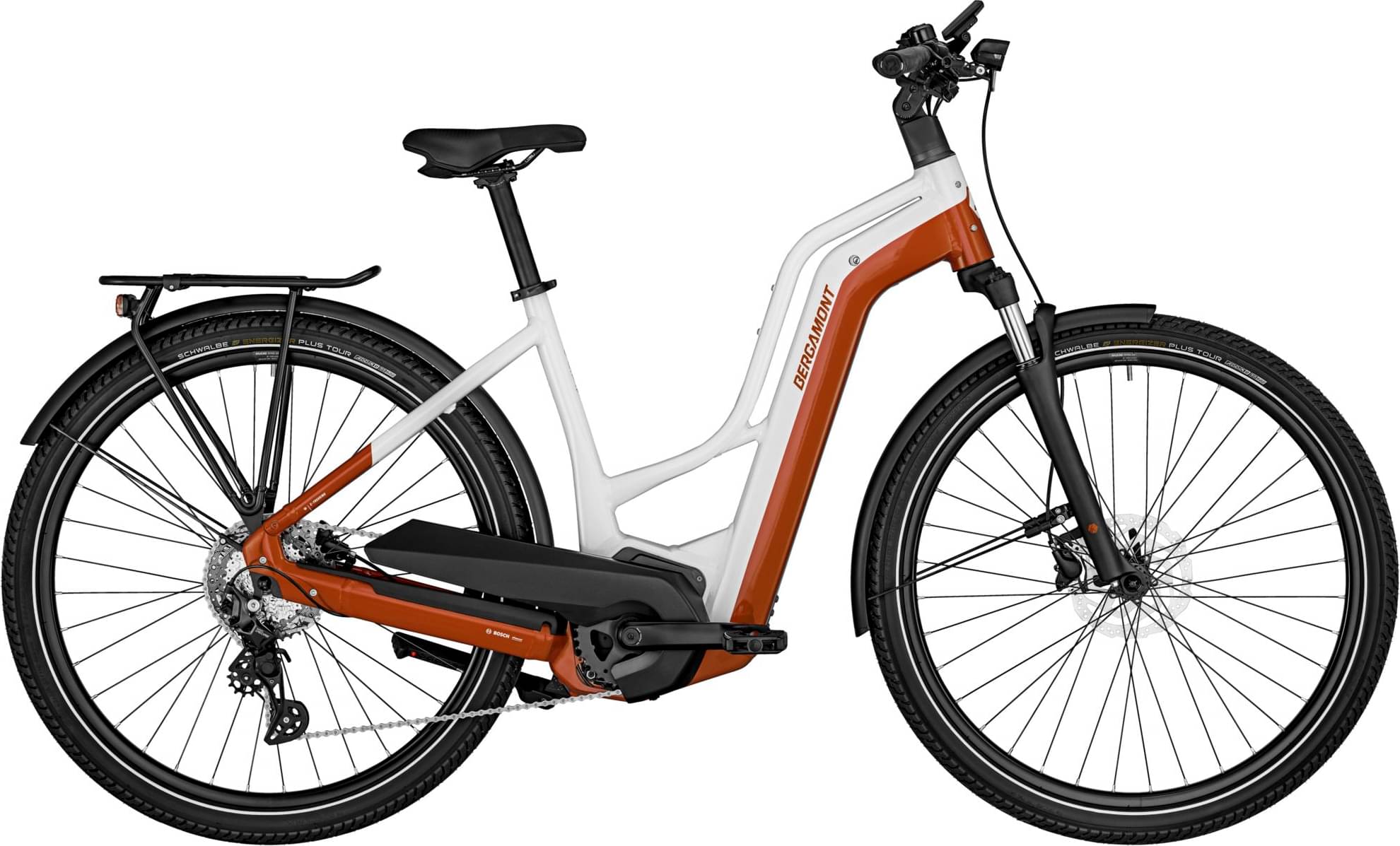

Bergamont E-Horizon Edition LTD Amsterdam 2023
2023 E-bike
Estimate price |
4,883$
Weight | 29.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 75mm -
Fork Suntour NVX
-
Groupset Deore, FSA -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch PowerTube, 36 V Li Ion, 750 Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28", super lite AL-6061 tubing, BES III, PowerTube battery
Suspension Fork
Suntour NVX30 DS, 75 mm
Drivetrain
Rear Derailleur
Shimano Deore Linkglide, RD-M5130, Shadow Plus
Shift Levers
Shimano Deore Linkglide, SL-M5130, 1x10-speed, rapidfire plus-shifter
Cassette
Shimano Linkglide, CS-LG600-10, 11-43t
Crank
FSA CK-200, 38t
Bottom Bracket
Bosch, Isis
Chain
Shimano Linkglide, CN-LG500
Pedals
Marwi SP-890 matt Sandblock
Wheels
Front Hub
Shimano, centerlock, disc, quick release
Rear Hub
Shimano, centerlock, disc, quick release
Rims
Ryde Rival 23 disc, eyelets
Spokes
Sapim Leader
Tires
Front: Schwalbe Energizer Plus Tour, Greenguard, reflective stripe, 55-622 Tube: Schwalbe AV19, Rear: Schwalbe Energizer Plus Tour, Greenguard, reflective stripe, 55-622 Tube: Schwalbe AV19
Brakes
Brakes
Shimano BR-MT200, hydraulic disc brake
Brake Levers
Shimano BL-MT200, hydraulic disc brake
Cockpit
Stem
Satori Python, adjustable
Handlebar
BGM Pro, riserbar, backsweep: 15°, rise: 5 mm
Grips
BGM Comfort, Ergo, double density, clamp version
Headset
Acros, A-Headset, semi-integrated, 1.5", with integrated cable routing
Seat
Saddle
Syncros Capilano Trekking Memory Foam
Seatpost
BGM Pro
Motor & Battery
Motor
Bosch Performance Line, Gen. 3, BES3, 250 W, 36 V, max. 25 km/h
Battery
Bosch PowerTube, 36 V Li Ion, 750 Wh
Charger
Bosch Standard Charger, 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 48cm | 52cm | 56cm | 60cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.6 mm | 1.6 mm | 1.59 mm | 1.59 mm | 1.58 mm |
| Front Center | 682 mm | 682 mm | 693 mm | 703 mm | 714 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Stack | 647 mm | 647 mm | 656 mm | 666 mm | 675 mm |
| Reach | 404 mm | 404 mm | 412 mm | 418 mm | 426 mm |
| Top Tube Length | 603 mm | 603 mm | 613 mm | 623 mm | 633 mm |
| Seat Tube Length | 415 mm | 455 mm | 495 mm | 535 mm | 575 mm |
| Head Tube Length | 140 mm | 140 mm | 150 mm | 160 mm | 170 mm |
| Chainstay Length | 503 mm | 503 mm | 503 mm | 503 mm | 503 mm |
| Wheelbase | 1179 mm | 1179 mm | 1190 mm | 1200 mm | 1211 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 491 mm | 491 mm | 491 mm | 491 mm | 491 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model
E-Horizon Edition LTD Amsterdam is a Bergamont E E Horizon model. There are 133 e-bikes that carry this model name. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Bergamont E-Horizon Edition Gent 2023 is the cheapest e-bike model and costs 3648$. Bergamont E-Horizon FS Elite 2023 is the most expensive one and costs 6689$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Commuter e-bikes average price
If you want to purchase a solid Commuter e-bike, it is important to know that the average cost is 2569$. However, even though the average price of a Commuter e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
This e-bike was released in 2023 and its price was 4439$. Comparing this to the average Commuter e-bike price, we see that the price is 72.79% more expensive.
Commuter e-bikes average weight
On a deeper look, we notice that the average weight of a Commuter e-bike is 25.2 kg (55.56 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
E-Horizon Edition LTD Amsterdam weighs 29.4 kg (64.82 lbs) and is much heavier than the average. In short, the average Commuter e-bike weight is 16.67% lower than this one.
E-Horizon Edition LTD Amsterdam components
Fork
This e-bike has the Suntour NVX fork installed. The fork’s travel is 75mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When leaving the production line, the E-Horizon Edition LTD Amsterdam model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The E-Horizon Edition LTD Amsterdam has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
