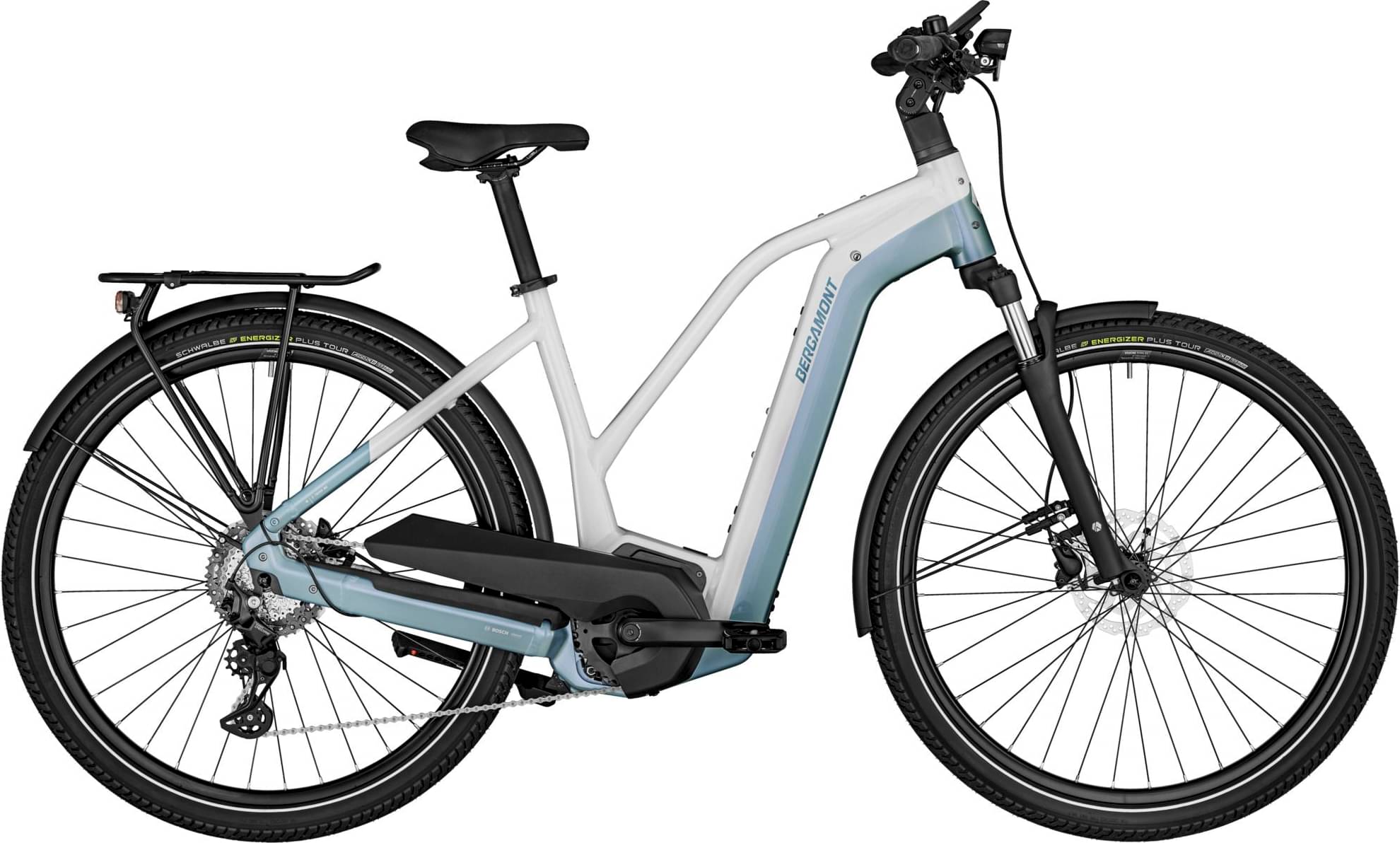

Bergamont E-Horizon Edition LTD Lady 2023
2023 E-bike
Estimate price |
4,883$
Weight | 29.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 75mm -
Fork Suntour NVX
-
Groupset Deore, FSA -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch PowerTube, 36 V Li Ion, 750 Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28", super lite AL-6061 tubing, BES III, PowerTube battery
Suspension Fork
Suntour NVX30 DS, 75 mm
Drivetrain
Rear Derailleur
Shimano Deore Linkglide, RD-M5130, Shadow Plus
Shift Levers
Shimano Deore Linkglide, SL-M5130, 1x10-speed, rapidfire plus-shifter
Cassette
Shimano Linkglide, CS-LG600-10, 11-43t
Crank
FSA CK-200, 38t
Bottom Bracket
Bosch, Isis
Chain
Shimano Linkglide, CN-LG500
Pedals
Marwi SP-890 matt Sandblock
Wheels
Front Hub
Shimano, centerlock, disc, quick release
Rear Hub
Shimano, centerlock, disc, quick release
Rims
Ryde Rival 23 disc, eyelets
Spokes
Sapim Leader
Tires
Front: Schwalbe Energizer Plus Tour, Greenguard, reflective stripe, 55-622 Tube: Schwalbe AV19, Rear: Schwalbe Energizer Plus Tour, Greenguard, reflective stripe, 55-622 Tube: Schwalbe AV19
Brakes
Brakes
Shimano BR-MT200, hydraulic disc brake
Brake Levers
Shimano BL-MT200, hydraulic disc brake
Cockpit
Stem
Satori Python, adjustable
Handlebar
BGM Pro, riserbar, backsweep: 15°, rise: 5 mm
Grips
BGM Comfort, Ergo, double density, clamp version
Headset
Acros, A-Headset, semi-integrated, 1.5", with integrated cable routing
Seat
Saddle
Syncros Capilano Trekking Memory Foam
Seatpost
BGM Pro
Motor & Battery
Motor
Bosch Performance Line, Gen. 3, BES3, 250 W, 36 V, max. 25 km/h
Battery
Bosch PowerTube, 36 V Li Ion, 750 Wh
Charger
Bosch Standard Charger, 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 48cm | 52cm | 56cm | 60cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.6 mm | 1.6 mm | 1.59 mm | 1.59 mm | 1.58 mm |
| Front Center | 682 mm | 682 mm | 693 mm | 703 mm | 714 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Stack | 647 mm | 647 mm | 656 mm | 666 mm | 675 mm |
| Reach | 404 mm | 404 mm | 412 mm | 418 mm | 426 mm |
| Top Tube Length | 603 mm | 603 mm | 613 mm | 623 mm | 633 mm |
| Seat Tube Length | 415 mm | 455 mm | 495 mm | 535 mm | 575 mm |
| Head Tube Length | 140 mm | 140 mm | 150 mm | 160 mm | 170 mm |
| Chainstay Length | 503 mm | 503 mm | 503 mm | 503 mm | 503 mm |
| Wheelbase | 1179 mm | 1179 mm | 1190 mm | 1200 mm | 1211 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 757 mm | 757 mm | 773 mm | 738 mm | 738 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
Model Overview
E-Horizon Edition LTD Lady completes the Bergamont E E Horizon model. There are 133 e-bikes that carry this model name. Take a sneak peek at all Bergamont E E Horizon e-bikes models from 2023, by clicking here.
Model range prices
Bergamont E-Horizon Edition Gent 2023 is the cheapest e-bike model and costs 3648$. Bergamont E-Horizon FS Elite 2023 is the most expensive one and costs 6689$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Commuter e-bikes
If you want to purchase a solid Commuter e-bike, it is important to know that the average cost is 2569$. However, this doesn’t mean that if you spend less money on a Commuter e-bike, you couldn’t get a decent one. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4439$. Comparing this to the average Commuter e-bike price, we see that the price is 72.79% more expensive.
Average weight for Commuter e-bikes
If we make a quick analysis of the average weight of a Commuter e-bike, we get 25.2 kg (55.56 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
much heavier than average, E-Horizon Edition LTD Lady has a weight of 29.4 kg (64.82 lbs). To sum up, it’s 16.67% heavier than the average weight of Commuter e-bikes.
Overview of components
Fork
The Suntour NVX is included from the factory. It has a travel distance of 75mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
As for the wheels, Bergamont E-Horizon Edition LTD Lady 2023, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The E-Horizon Edition LTD Lady comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
