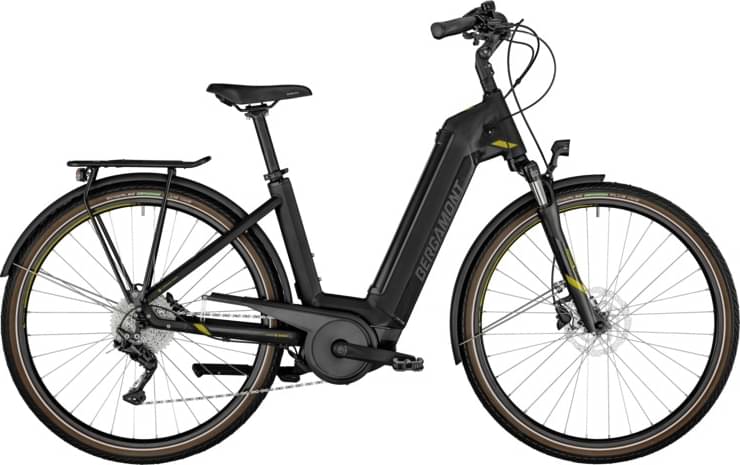

Bergamont E-Horizon Edition Wave 2021
2021 E-bike
Weight | 27.4 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Deore, FSA -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery Motor: Bosch Drive Unit Performance Line Cruise, Gen. 3, 250 W, 36 V, max. 25 km/h Display: Bosch Purion Battery: Bosch 36 V Li Ion, 625 Wh, PowerTube Assistance Modes: Eco (+55%), Tour (+120%), eMTB (+120 - 300%), Turbo (+300%), Walk Assist (-5 km/h) -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28", lite AL-6061 tubing, PowerTube battery
Suspension Fork
Suntour NEX E25, 63 mm
Drivetrain
Rear Derailleur
Shimano Deore, RD-M4120, Shadow
Shift Levers
Shimano Deore, SL-M4100, 1x10-speed, rapidfire plus-shifter
Cassette
Shimano Deore, CS-M4100, 11-42t
Crank
FSA CK-200, 38t
Bottom Bracket
Bosch, Isis
Chain
KMC e10S
Pedals
Trekking alloy
Wheels
Front Hub
Shimano, centerlock, disc, quick release
Rear Hub
Shimano FH-MT200-B, centerlock, disc, quick release
Rims
BGM Pro X17, disc, eyelets
Spokes
stainless, silver
Tires
Schwalbe Energizer Plus, reflective stripe, 50-622 Tubes: Schwalbe SV19B Light
Brakes
Brakes
Shimano BR-MT200, hydraulic disc brake, SM-RT10 rotor: 180/160 mm
Brake Levers
Shimano BL-MT200, hydraulic disc brake
Cockpit
Stem
BGM Pro, adjustable, 17°-25°
Handlebar
BGM Pro, riserbar, backsweep: 40°, rise: 40 mm
Grips
BGM Comfort, Ergo, double density, clamp version
Headset
FSA NO.57SC-1, A-Headset, semi-integrated, tapered
Seat
Saddle
Selle Royal Essenza Plus, lady
Seatpost
BGM Pro
Motor & Battery
Motor
Motor: Bosch Drive Unit Performance Line Cruise, Gen. 3, 250 W, 36 V, max. 25 km/h Display: Bosch Purion Battery: Bosch 36 V Li Ion, 625 Wh, PowerTube Assistance Modes: Eco (+55%), Tour (+120%), eMTB (+120 - 300%), Turbo (+300%), Walk Assist (-5 km/h)
Battery
Motor: Bosch Drive Unit Performance Line Cruise, Gen. 3, 250 W, 36 V, max. 25 km/h Display: Bosch Purion Battery: Bosch 36 V Li Ion, 625 Wh, PowerTube Assistance Modes: Eco (+55%), Tour (+120%), eMTB (+120 - 300%), Turbo (+300%), Walk Assist (-5 km/h)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 48cm | 52cm | 56cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.64 mm | 1.62 mm | 1.6 mm | 1.58 mm |
| Front Center | 655 mm | 660 mm | 665 mm | 670 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 85 mm | 85 mm | 85 mm | 85 mm |
| Stack | 651 mm | 651 mm | 651 mm | 651 mm |
| Reach | 396 mm | 401 mm | 406 mm | 411 mm |
| Top Tube Length | 601 mm | 606 mm | 611 mm | 616 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm | 560 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 170 mm | 170 mm | 170 mm | 170 mm |
| Chainstay Length | 511 mm | 511 mm | 511 mm | 511 mm |
| Wheelbase | 1157 mm | 1162 mm | 1167 mm | 1172 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 507 mm | 507 mm | 507 mm | 507 mm |
| Wheels | 700 | 700 | 700 | 700 |
About this model
E-Horizon Edition Wave completes the Bergamont E E Horizon model. There are 133 e-bikes that carry this model name. You can get a glimpse at all models from 2021, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Commuter e-bikes
According to our math, the average price for a trustworthy Commuter e-bike is 2569$. However, even though the average price of a Commuter e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Commuter e-bikes average weight
If we make a quick analysis of the average weight of a Commuter e-bike, we get 25.2 kg (55.56 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
a bit heavier than average, E-Horizon Edition Wave has a weight of 27.4 kg (60.41 lbs). In other words, this model is 8.73% heavier than the average Commuter e-bike.
E-Horizon Edition Wave components
Fork
The SunTour NEX is included from the factory. It has a travel distance of 63mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
When leaving the production line, the E-Horizon Edition Wave model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Bergamont E-Horizon Edition Wave has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
