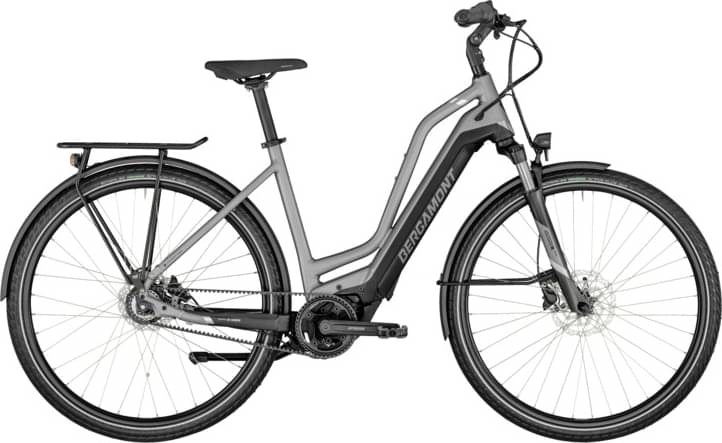

Bergamont E-Horizon Elite Belt Amsterdam 2021
2021 E-bike
Weight | 25.2 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NCX
-
Groupset Nexus, FSA -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Motor: Bosch Drive Unit Performance Line CX Cruise, Gen. 4, 250 W, 36 V, max. 25 km/h Display: Bosch Purion Battery: Bosch 36 V Li Ion, 625 Wh, PowerTube Assistance Modes: Eco (+60%), Tour (+140%), eMTB (+140 - 340%), Turbo (+340%), Walk Assist (-5 km/h) -
Drivetrain Belt Drive, IGH -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28", ultra lite AL-6061 tubing, PowerTube battery
Suspension Fork
Suntour NCX D LO, 63 mm, lockout
Drivetrain
Shift Levers
Shimano Nexus, SL-C7000, 5-speed, revo-shifter
Cassette
Gates CDX, 32T
Crank
FSA CK-320, belt, 46t
Bottom Bracket
Bosch, Isis
Chain
Gates CDX Carbon Drive Belt, Center-Track
Pedals
Trekking alloy
Wheels
Front Hub
Shimano HB-MT200, centerlock, disc, quick release
Rear Hub
Shimano Nexus, SG-C7000-5, freehub, centerlock, disc
Rims
Ryde Rival 23, disc, eyelets
Spokes
Sapim Leader
Tires
Schwalbe Energizer Active Plus, reflective stripe, 47-622 Tubes: Schwalbe SV19B Light
Brakes
Brakes
Shimano BR-MT200, hydraulic disc brake, SM-RT10 rotor: 180/160 mm
Brake Levers
Shimano BL-MT200, hydraulic disc brake
Cockpit
Stem
BGM E-Bike, adjustable
Handlebar
BGM Pro, riserbar, backsweep: 15°, rise: 5 mm
Grips
BGM Comfort, Ergo, double density, clamp version
Headset
FSA NO.57SC-1, A-Headset, semi-integrated, tapered
Seat
Saddle
Selle Royal Essenza Plus, lady
Seatpost
BGM Pro
Motor & Battery
Motor
Motor: Bosch Drive Unit Performance Line CX Cruise, Gen. 4, 250 W, 36 V, max. 25 km/h Display: Bosch Purion Battery: Bosch 36 V Li Ion, 625 Wh, PowerTube Assistance Modes: Eco (+60%), Tour (+140%), eMTB (+140 - 340%), Turbo (+340%), Walk Assist (-5 km/h)
Battery
Motor: Bosch Drive Unit Performance Line CX Cruise, Gen. 4, 250 W, 36 V, max. 25 km/h Display: Bosch Purion Battery: Bosch 36 V Li Ion, 625 Wh, PowerTube Assistance Modes: Eco (+60%), Tour (+140%), eMTB (+140 - 340%), Turbo (+340%), Walk Assist (-5 km/h)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 48cm | 52cm | 56cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.59 mm | 1.65 mm | 1.68 mm |
| Front Center | 650 | 655 mm | 660 mm | 670 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 74 mm | 74 mm | 74 mm | 74 mm |
| Stack | 603 mm | 623 mm | 641 mm | 660 mm |
| Reach | 393 mm | 391 mm | 389 mm | 393 mm |
| Top Tube Length | 578 mm | 588 mm | 598 mm | 608 mm |
| Seat Tube Angle | 73 ° | 72.5 ° | 72 ° | 72 ° |
| Seat Tube Length | 415 mm | 455 mm | 495 mm | 535 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 471 mm | 471 mm | 471 mm | 471 mm |
| Wheelbase | 1114 mm | 1119 mm | 1124 mm | 1134 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 517 mm | 516 mm | 515 mm | 518 mm |
| Wheels | 700 | 700 | 700 | 700 |
About this model
E-Horizon Elite Belt Amsterdam belongs to the Bergamont E E Horizon model. Bergamont released 133 e-bikes variations of this model so far. You can easily view all of the Bergamont E E Horizon e-bikes models from 2021, here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Commuter e-bikes average price
If you want an acceptable Commuter e-bike you should know that the average price is 2569$. However, even though the average price of a Commuter e-bike is lower, you might still be able to get a top-quality e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Average weight for Commuter e-bikes
If we make a quick analysis of the average weight of a Commuter e-bike, we get 25.2 kg (55.56 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 25.2 kg (55.56 lbs), Bergamont e-bike is equally heavier with average. In short, the average Commuter e-bike weight is 0% lower than this one.
E-Horizon Elite Belt Amsterdam components
Fork
This e-bike has the SunTour NCX fork installed. The fork’s travel is 63mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The wheels on E-Horizon Elite Belt Amsterdam are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The E-Horizon Elite Belt Amsterdam comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
