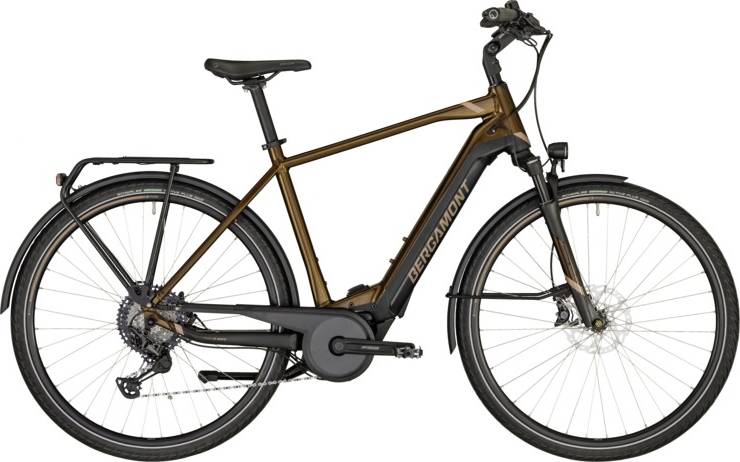

Bergamont E-Horizon Elite Gent 2020
2020 E-bike
Weight | 24.1 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NCX
-
Groupset XT, Shimano -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Motor: Bosch Drive Unit Performance Line CX Cruise, Gen. 4, 250 W, 36 V, max. 25 km/h Display: Bosch Kiox Battery: Bosch 36 V Li Ion, 625 Wh, PowerTube Assistance Modes: Eco (+60%), Tour (+140%), eMTB (+140 - 340%), Turbo ( +340%), Walk Assist (-5 km/h) -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28", ultra lite AL-6061 tubing, PowerTube battery
Suspension Fork
Suntour NCX E Air, 63 mm, lockout
Drivetrain
Rear Derailleur
Shimano Deore XT, RD-M8100, Shadow Plus
Shift Levers
Shimano Deore XT, SL-M8100, 1x12-speed, rapidfire plus-shifter
Cassette
Shimano SLX, CS-M7100, 10-51t
Crank
FSA CK-320, Shimano CRE80-12, 38t
Bottom Bracket
Bosch, Isis
Chain
Shimano SLX, CN-M7100
Pedals
Trekking alloy
Wheels
Front Hub
Shimano HB-MT400, centerlock, disc, 15x100 mm axle
Rear Hub
Shimano FH-MT500, centerlock, disc, quick release
Rims
Mach 1 ER20, disc, eyelets
Spokes
Sapim Leader
Tires
Schwalbe Energizer Active Plus, reflective stripe, 47-622 Tubes: Schwalbe AV17A Light
Brakes
Brakes
Shimano Deore XT, BR-M8000, hydraulic disc brake, SM-RT70 rotor: 180/180 mm
Brake Levers
Shimano Deore XT, BL-T8000, hydraulic disc brake
Cockpit
Stem
BGM E-Bike, adjustable, for Kiox integration
Handlebar
BGM Pro, riserbar, backsweep: 15°, rise: 5 mm
Grips
Ergon GP10
Headset
FSA NO.57SC-1, A-Headset, semi-integrated, tapered
Seat
Saddle
Ergon ST10
Seatpost
BGM Pro
Motor & Battery
Motor
Motor: Bosch Drive Unit Performance Line CX Cruise, Gen. 4, 250 W, 36 V, max. 25 km/h Display: Bosch Kiox Battery: Bosch 36 V Li Ion, 625 Wh, PowerTube Assistance Modes: Eco (+60%), Tour (+140%), eMTB (+140 - 340%), Turbo ( +340%), Walk Assist (-5 km/h)
Battery
Motor: Bosch Drive Unit Performance Line CX Cruise, Gen. 4, 250 W, 36 V, max. 25 km/h Display: Bosch Kiox Battery: Bosch 36 V Li Ion, 625 Wh, PowerTube Assistance Modes: Eco (+60%), Tour (+140%), eMTB (+140 - 340%), Turbo ( +340%), Walk Assist (-5 km/h)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 52cm | 56cm | 60cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.54 mm | 1.59 mm | 1.63 mm |
| Front Center | 659 mm | 664 mm | 669 mm | 673 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 74 mm | 71 mm | 71 mm | 67 mm |
| Stack | 610 mm | 631 mm | 650 | 671 mm |
| Reach | 408 mm | 411 mm | 409 mm | 412 mm |
| Top Tube Length | 599 mm | 609 mm | 619 mm | 629 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72 ° | 72 ° |
| Seat Tube Length | 455 mm | 495 mm | 535 mm | 575 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 70.5 ° | 71 ° |
| Head Tube Length | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 477 mm | 477 mm | 477 mm | 477 mm |
| Wheelbase | 1129 mm | 1134 mm | 1139 mm | 1143 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 782 mm | 814 mm | 846 mm | 878 mm |
| Wheels | 700 | 700 | 700 | 700 |
About this model
E-Horizon Elite Gent completes the Bergamont E E Horizon model. 133 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2020, by clicking on this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Commuter e-bikes
According to our calculations, the average cost of a Commuter e-bike that is reliable is 2569$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Commuter e-bikes average weight
If we make a quick analysis of the average weight of a Commuter e-bike, we get 25.2 kg (55.56 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 24.1 kg (53.13 lbs), the E-Horizon Elite Gent model is slightly lighter than average. In conclusion, the average Commuter e-bike weighs 4.56% more than E-Horizon Elite Gent.
Overview of components
Fork
The E-Horizon Elite Gent comes factory-installed with the SunTour NCX fork. This has a travel range of 63mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
When leaving the production line, the E-Horizon Elite Gent model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Bergamont E-Horizon Elite Gent has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
